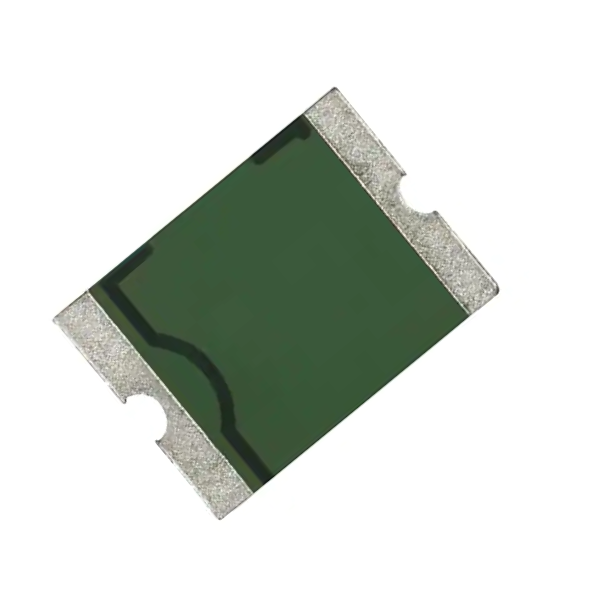

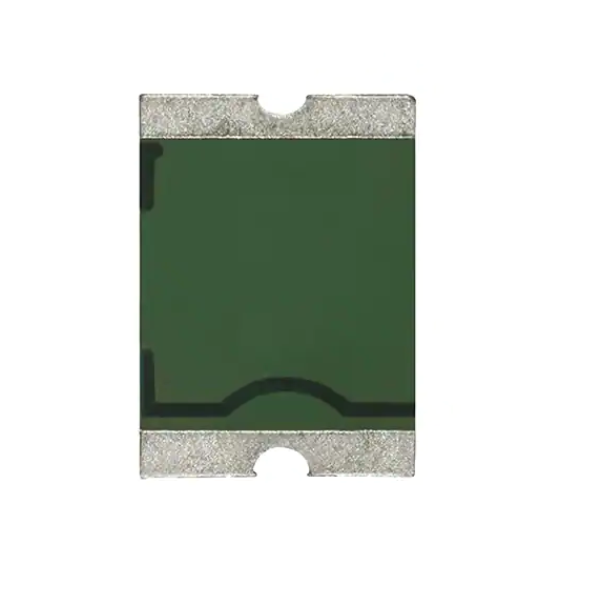

Eaten Resettable Fuses PTSA181216V150

Description:

The Eaton Resettable Fuse PTSA181216V150 is a Polymer Positive Temperature Coefficient (PPTC) resettable fuse. This means it's designed to protect electronic circuits from overcurrent faults. Unlike traditional fuses that melt and need replacement, a PPTC fuse "trips" to limit current during a fault and then resets itself once the fault is removed and the device cools down.

Key Features:

• Resettable: Eliminates the need for fuse replacement after a fault.
• Surface Mount (SMD): Designed for surface mounting on printed circuit boards.
• Polymer PTC: Uses a conductive polymer that increases in resistance with temperature.
• Overcurrent Protection: Protects circuits from damage due to excessive current.
• Fast Trip Time: Reacts quickly to overcurrent conditions.
• Wide Range of Applications: Suitable for various electronic devices.
• Compact Size: Small footprint due to the 1812 package.

Applications:

• USB Ports: Protecting USB ports on computers and devices.
• Portable Electronics: Used in smartphones, tablets, and other portable devices.
• Battery Packs: Protecting battery packs from overcurrent and short circuits.
• Industrial Control Systems: Protecting sensitive electronic components.
• Automotive Electronics: Used in automotive systems for circuit protection.
• Consumer Electronics: Found in TVs, DVD players, and other home entertainment devices.

Specifications:

• Voltage Rating: 16V
• Hold Current : 150mA
• Trip Current : 300mA
• Trip Time: Copper Foil Tape
• Resistance : Polymeric Positive Temperature Coefficient
• Operating Temperature Range: -40°C to +85°C.

DATA SHEET AND USECASE

Key Specifications:

• Maximum Voltage (Vmax): 16 VDC
• Hold Current (Ihold): 1.5 A
• Trip Current (Itrip): 3.0 A
• Maximum Fault Current (Imax): 40 A
• Time-to-Trip: 8.0 seconds at 8.0 A
• Initial Resistance (Ri): 0.03 Ω (minimum)
• Post-Trip Resistance (R1): 0.12 Ω (maximum)
• Power Dissipation (Pd): 1.0 W
• Operating Temperature Range: -40°C to +85°C
