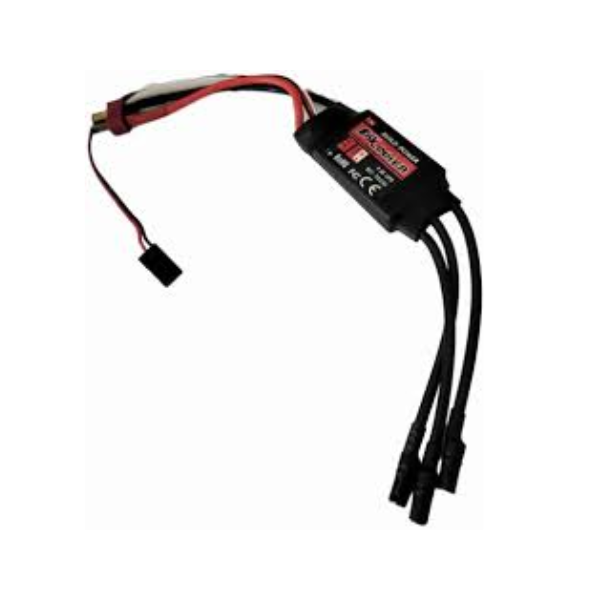

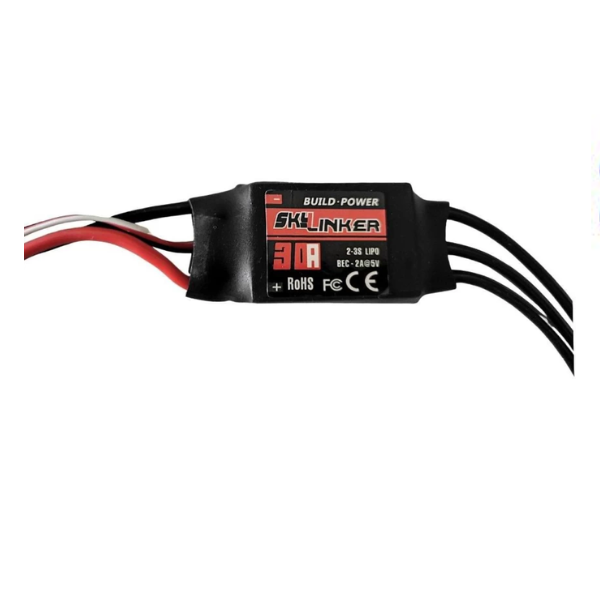

ESC Electronics Speed Controller 30A Build Power

The ESC (Electronic Speed Controller) is a crucial component in many electronic devices, especially those that require precise control over the speed and direction of motors. An ESC 30A Build Power is a specific type of ESC designed to handle a maximum current of 30 amps.

Key Features:

• Reversing Functionality: Enables the motor to rotate in both directions.
• Adjustable Speed Control: Allows you to precisely control the speed of your motor.
• Braking Capability: Provides a braking function to slow down or stop the motor.
• High Current Capacity: Can handle up to 30 amps of current, making it suitable for powering larger motors.
• Protection Features: Often includes features like thermal protection, overcurrent protection, and low-voltage protection to safeguard the ESC and connected components.

Applications:

• Model Vehicles: Controls the speed of motors in RC cars, boats, and airplanes.
• Electric Vehicles: Controls the speed of electric motors in cars, bikes, and scooters.
• Robotics: Used in various robotic applications to control the movement of motors.
• Industrial Automation: Used in various industrial processes to control the speed and direction of machinery.

Specifications:

• Current Rating: 30A
• Frequency: Typically 10-50 kHz
• Dimensions: Vary depending on the model
• Voltage Rating: Varies depending on the specific ESC model (typically 5-12V)

DATA SHEET AND USECASE

Key Specifications:

• Continuous Current: 30A
• Burst Current (10 seconds): 40A
• Weight: Approximately 33 grams
• Battery Compatibility:
  • Lithium Polymer (LiPo): 2-4 cells
  • Nickel-Metal Hydride (NiMH): 5-12 cells
• Dimensions: Approximately 53 x 25 x 11 mm
• Battery Eliminator Circuit (BEC): 5V output at 3A, utilizing a UBEC (Switching power regulator)
