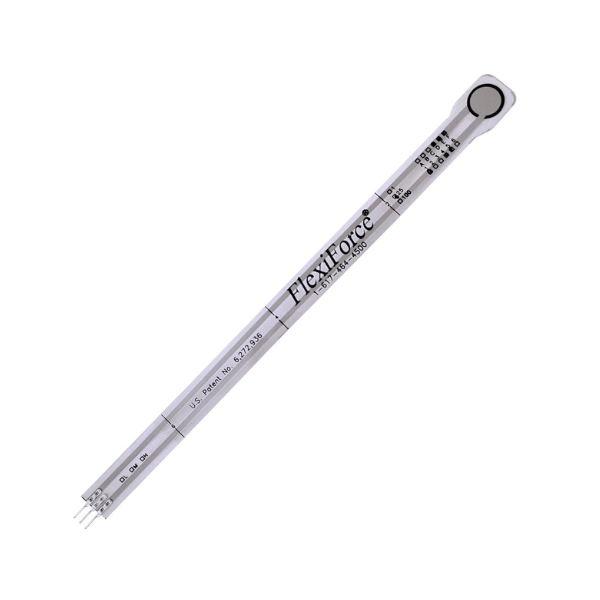

FlexiForce A201 Pressure Sensor - 25LBS

The FlexiForce A201 Pressure Sensor is a highly sensitive and flexible sensor designed to measure pressure or force applied to its surface. It's a popular choice for various applications that require tactile sensing and force measurement.

Key Features:

• Flexible Design: Can be easily bent or shaped to fit different applications.
• High Sensitivity: Detects even slight changes in pressure.
• Analog Output: Provides an analog voltage output proportional to the applied pressure.
• Durable Construction: Built to withstand repeated pressure and bending.
• 25 LBS Capacity: Measures pressure up to 25 pounds.

Applications:

• Robotics: Measures force exerted by robotic grippers or manipulators.
• Prosthetics: Controls prosthetic limbs based on muscle pressure.
• Wearable Technology: Monitors pressure and force in wearable devices.
• Human-Machine Interfaces: Enables natural interaction between humans and machines.
• DIY Projects: Creates interactive and creative projects.

DATA SHEET AND USECASE

Key Features:

• Flexible Design: The sensor can be easily integrated into various applications due to its thin and flexible nature.
• High Sensitivity: Capable of detecting slight changes in pressure.
• Analog Output: Provides an analog voltage output proportional to the applied pressure.
• Durable Construction: Built to withstand repeated pressure and bending.
• Force Range: Standard measurement range up to 25 pounds (111 N).


Physical Properties:

• Thickness: 0.008 inches (0.203 mm)
• Length: 7.75 inches (197 mm)
• Width: 0.55 inches (14 mm)

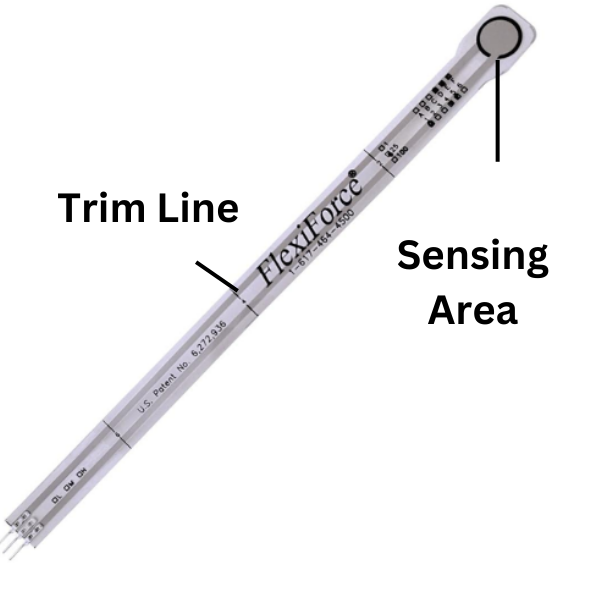

• Sensing Area: 0.375-inch diameter (9.53 mm)

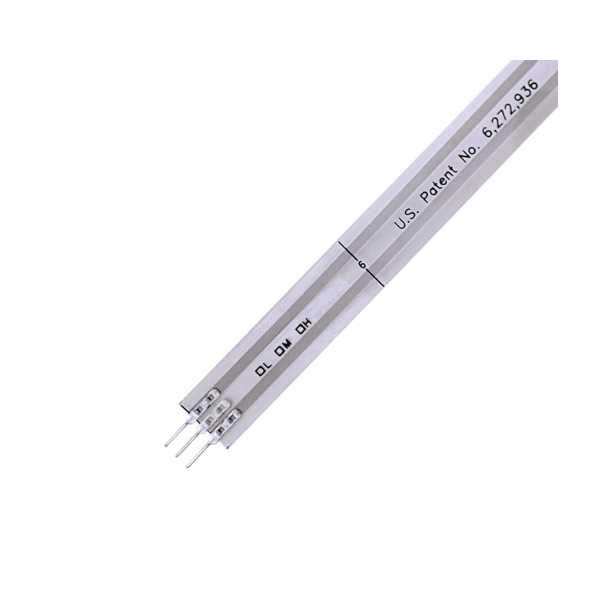

• Connector: 3-pin male square pin (center pin inactive)
• Substrate: Polyester (e.g., Mylar)
