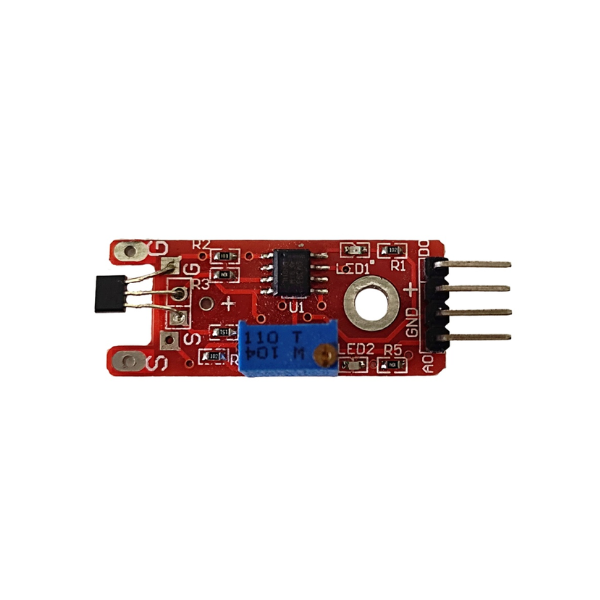

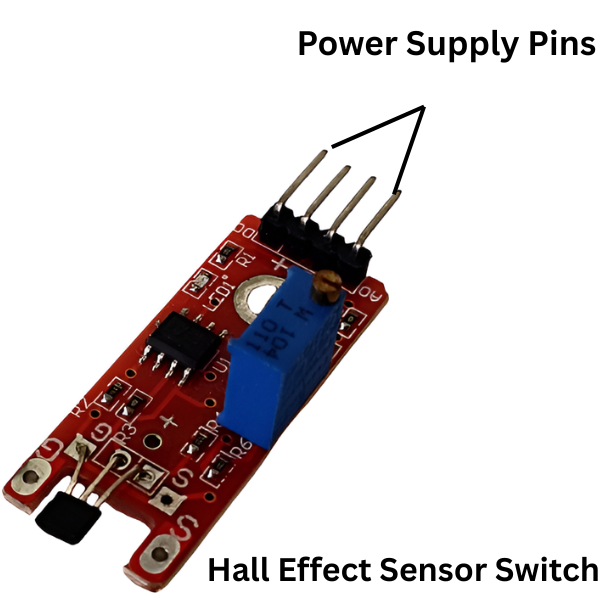

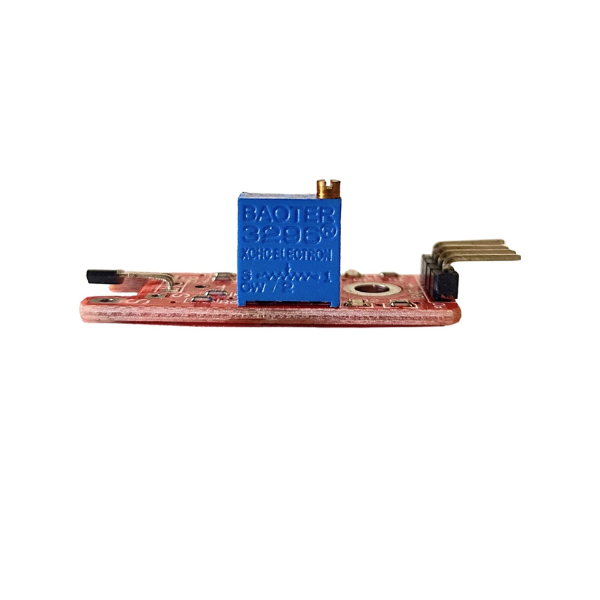

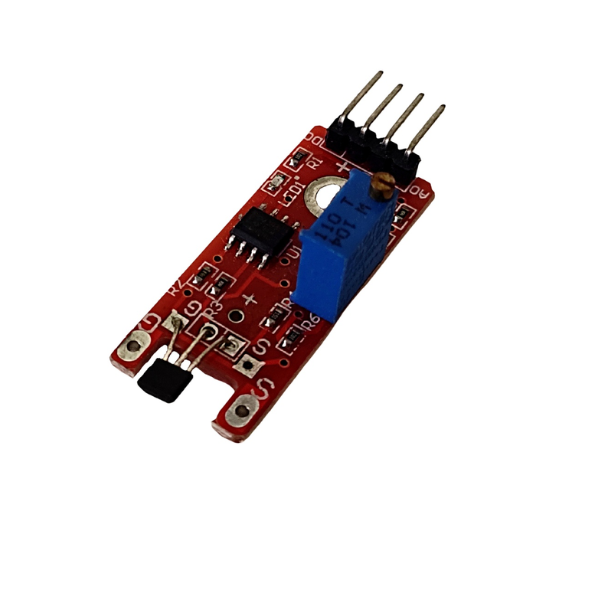

Hall Effect Sensor Switch Speed Counting Sensor

The Hall Effect Sensor Switch Speed Counting Sensor is a versatile device designed to measure rotational speed by detecting the presence of a magnetic field. It utilizes the Hall effect principle to convert the magnetic field strength into a voltage output, which can then be used to calculate rotational speed.

Key Features:

• Hall Effect Technology: Utilizes the Hall effect to measure magnetic fields.
• Speed Counting: Can accurately measure rotational speed by detecting the frequency of magnetic field changes.
• Digital Output: Provides a digital output signal indicating the presence of a magnetic field.
• Non-Contact Measurement: Does not require physical contact with the rotating object.
• Wide Operating Range: Can measure a wide range of rotational speeds.
• Compact Size: Small and lightweight for easy integration into various projects.

Applications:

• Tachometers: Measures the rotational speed of engines, motors, and other rotating machinery.
• Industrial Automation: Controls and monitors industrial processes based on rotational speed.
• Robotics: Used in robotic applications to measure and control joint speeds.
• Scientific Research: Studies rotational motion and speed.
• DIY Projects: Creates devices that measure rotational speed, such as RPM meters.

DATA SHEET AND USECASE

Here are some datasheets for specific Hall Effect Speed Sensors:

• Bosch Motorsport HA-N Speed Sensor: Designed for motorsport applications, this sensor offers high-frequency response and precise measurements.

• Honeywell SNDH-H Series: These sensors use a magnetically biased Hall-effect integrated circuit to accurately sense the movement of ferrous metal targets.

• Bosch Motorsport HA-Di Speed Sensor: This sensor features rotational direction detection, making it suitable for applications requiring direction information.
