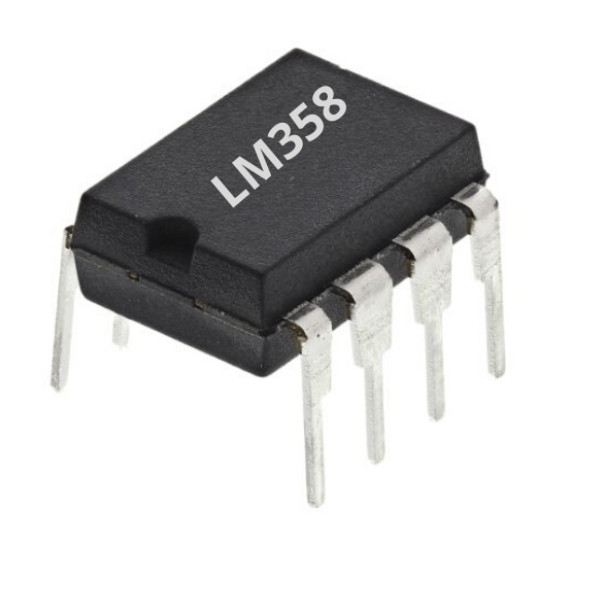

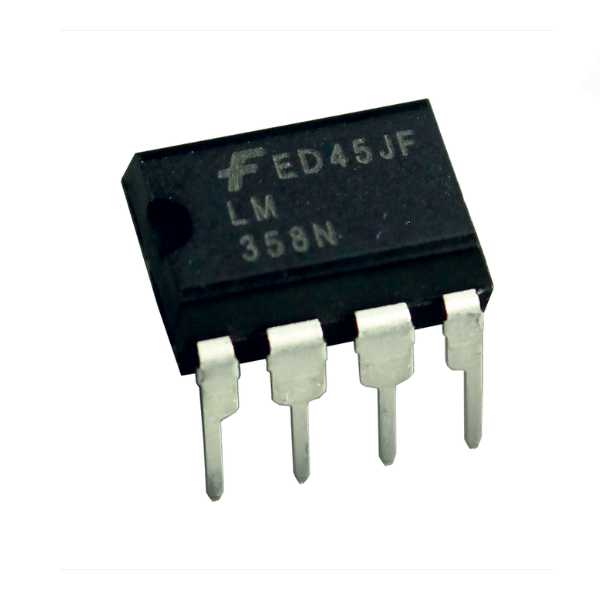

HG SEMI LM358N Low-Power Dual Op-Amp IC DIP-8 Package Pack 10

LM358N: A Versatile Dual Operational Amplifier

The LM358N is a high-performance dual operational amplifier (op-amp) designed for a wide range of applications. Its low power consumption, wide supply voltage range, and versatile features make it a valuable component for various electronic circuits.

Key Features:

• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered or energy-efficient systems.
• Wide Supply Voltage Range: Operates from 3V to 32V, accommodating various power sources.
• Internal Compensation: Requires no external components for frequency compensation, simplifying circuit design.
• Common Mode Range Extends to Negative Supply: Offers flexibility in circuit design and can handle a wider range of input signals.
• Single and Split Supply Operation: Compatible with both single and split supply configurations.
• Short-Circuit Protection: Protects against short-circuit conditions, safeguarding the op-amp and connected circuitry.
• ESD Protection: Features ESD clamps on the inputs for enhanced durability.

Applications:

• Audio Amplifiers: Used in audio amplifiers for signal amplification and conditioning.
• Instrumentation: Employed in instrumentation circuits for measurement and control.
• Data Acquisition: Utilized in data acquisition systems for signal processing and analysis.
• Industrial Control: Integrated into industrial control systems for various applications.

Specifications:

• Supply Voltage: 3V to 32V
• Input Bias Current: Low input bias current
• Common Mode Range: Extends to negative supply
• Output Voltage Range: Includes negative power supply voltage
• Package: DIP-8
