1) Operating Voltage: 5V
2) Contact Resistance : 50mΩ max (initial)
3) Electrically Life:100,000 cycles
4) Environment temperature: -25°C to +105°C
5) Operating Force: 180/230(±20gf)
6) Seal temperature:250ºC-280ºC
7) I/O pins: 3 pins
Description:

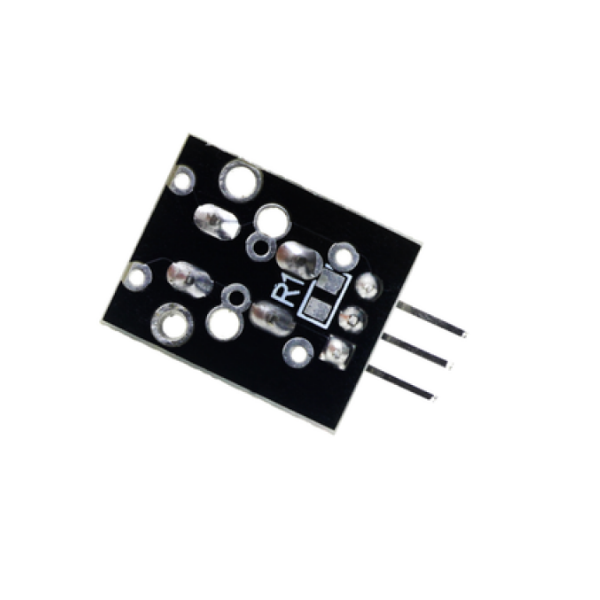

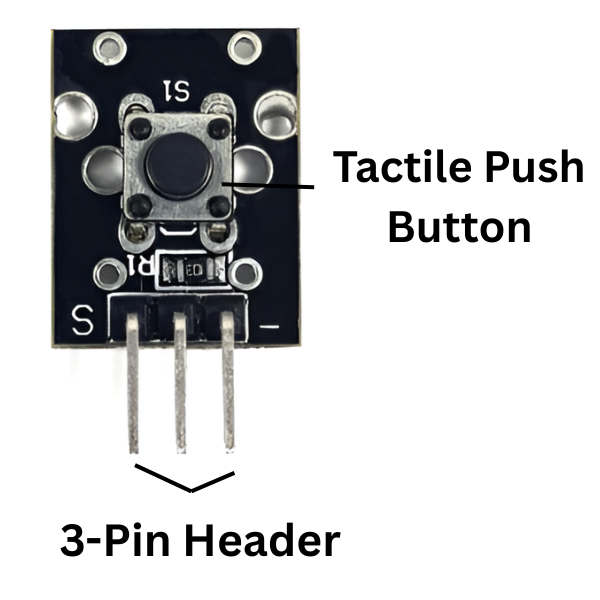

This Momentary Tactile Push Button Module DC 5V 12V Switch is ideally suited to add a button to your projects and gives a high signal when it is pressed. The module of the push button is a fully-fledged device with which you can install it immediately in the project, without using a pull-up or tightening resistances, because this is already in the circuit. The button together with the resistor is located on the board, where there are holes for installation. The built-in resistor has a rating of 10 k.

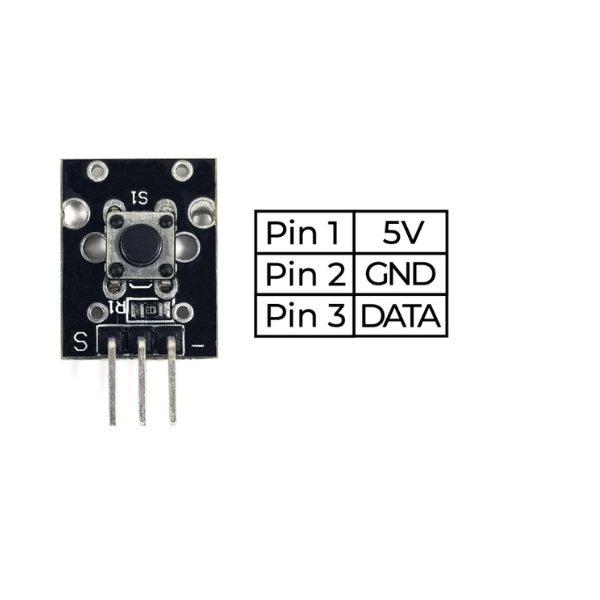

The module is designed for two contacts: when pressed, they are closed and open when released. There are 3 outputs on the board: I, S, + 5V. Contact I is connected to the common wire of the circuit, S is the output of the module, and + 5V is connected to the power supply.
Features:
Operating Voltage: 5V
Contact Resistance : 50mΩ max (initial)
Electrically Life:100,000 cycles
Environment temperature: -25°C to +105°C
Operating Force: 180/230(±20gf)
Seal temperature:250ºC-280ºC
I/O pins: 3 pins
Package Includes:
1 x KY-004 3 Pin Button Key Switch Sensor Module For Arduino
