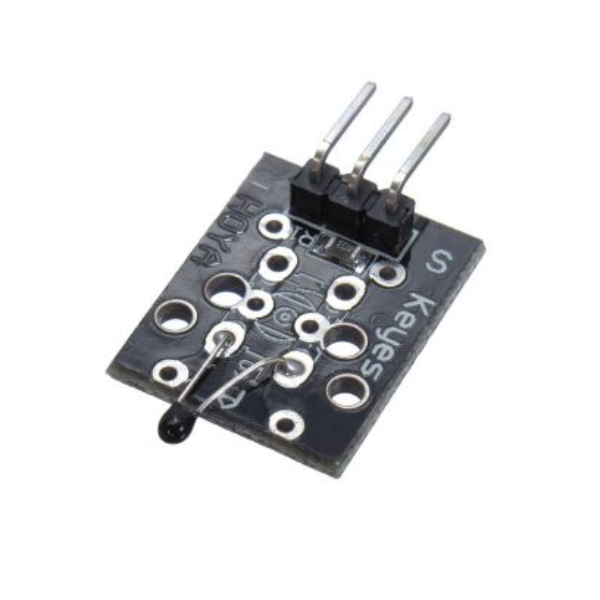

KY-013 Analog Temperature Sensor Module

Description:

The KY-013 module simplifies temperature sensing by incorporating the necessary components onto a single board. It typically includes the LM35 (or equivalent) temperature sensor IC, along with passive components for signal conditioning. The module outputs an analog voltage that varies linearly with temperature, usually 10mV per degree Celsius. This analog signal can then be read by a microcontroller's ADC pin, allowing for precise temperature readings.

Key Features:

• Wide Temperature Range: Typically measures temperatures from -55°C to +150°C (depending on the specific LM35 variant used).
• High Accuracy: The LM35 provides accurate temperature readings, typically within a few degrees Celsius.
• Linear Output: The analog voltage output varies linearly with temperature, simplifying calibration and signal processing.
• Easy Interface: The module is designed for easy interfacing with microcontrollers and other analog devices.
• Low Power Consumption: The LM35 is a low-power device, making it suitable for battery-powered applications.
• Small Size: The module is compact and can be easily integrated into various projects.
• Cost-Effective: KY-013 modules are readily available and relatively inexpensive.

Specifications :

• Sensor IC: LM35 (or compatible)
• Operating Voltage: 3.3V - 5V
• Output Type: Analog Voltage
• Temperature Range: -55°C to +150°C
• Accuracy: ±0.5°C (typical)
• Output Voltage Scaling: 10mV/°C

Applications:

The KY-013 module is well-suited for a wide range of temperature sensing applications, including:

• Environmental Monitoring: Measuring ambient temperature, humidity, and weather conditions.
• Home Automation: Controlling thermostats, fans, and other temperature-sensitive devices.
• Industrial Control: Monitoring temperature in manufacturing processes and equipment.
• Data Logging: Recording temperature data over time for analysis.
• DIY Projects: Creating custom temperature-controlled devices and systems.
• Educational Purposes: Learning about temperature sensing and analog signal processing.

Important Notes:

• The accuracy of the KY-013 module depends on the specific LM35 variant used. Different variants have different temperature ranges and accuracy specifications.
• It's important to consult the datasheet for the LM35 variant on your specific KY-013 module to understand its exact specifications.
• The KY-013 module typically requires calibration to achieve the highest accuracy. This involves comparing the module's readings to a known temperature source.
• When interfacing with a microcontroller, an analog-to-digital converter (ADC) is used to convert the analog voltage output to a digital value that the microcontroller can understand.

DATA SHEET AND USECASE

Key Specifications:

• Operating Voltage: 3.3V to 5V
• Temperature Measurement Range: -55°C to +125°C
• Measurement Accuracy: ±0.5°C
• Thermistor Resistance: 10 kΩ at 25°C
• B-Value: 3950K
