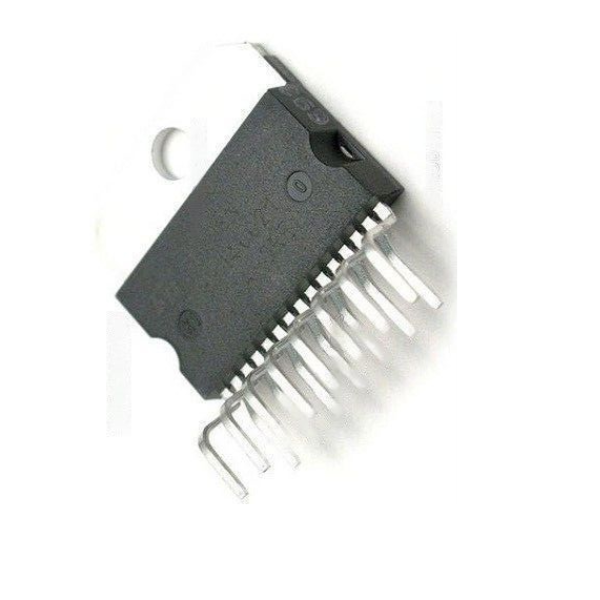

L298 Motor Driver IC

L298 Dual Full Bridge Driver: A Versatile Motor Control IC

The L298 is a powerful dual full bridge driver designed to efficiently control two DC motors or a single stepper motor in bipolar mode. Its high current capability, wide voltage range, and robust features make it a popular choice for motor-driven applications.

Key Features:

• High Current Output: Delivers up to 2A per channel, allowing for powerful motor control.
• Wide Supply Voltage Range: Operates from a wide range of supply voltages, accommodating different power sources.
• Dual Full Bridge Configuration: Provides two independent full-bridge drivers for flexible motor control.
• TTL-Compatible Inputs: Easily interfaces with TTL-based microcontrollers and other digital circuits.
• Overcurrent Protection: Includes built-in overcurrent protection to safeguard the driver and connected components.
• Thermal Shutdown Protection: Protects against overheating, ensuring reliable operation.

Applications:

• Robotics: Used in robotics applications to control motor movements.
• Automation: Employed in automation systems for controlling machinery and equipment.
• Consumer Electronics: Integrated into various consumer products, such as toys, appliances, and gaming devices.
• Industrial Control: Used in industrial control systems for motor-driven processes.

Specifications:

• Output Current: Up to 2A per channel
• Supply Voltage: 4.5V to 36V
• Input Compatibility: TTL-compatible
• Package: Multi-watt or PowerSO20
