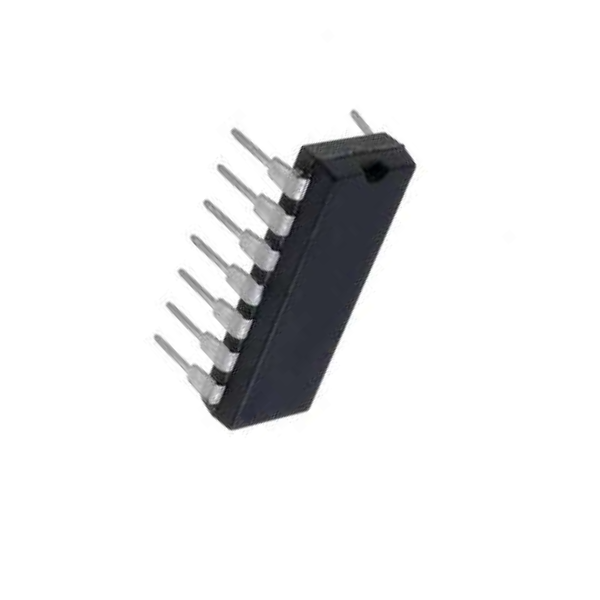

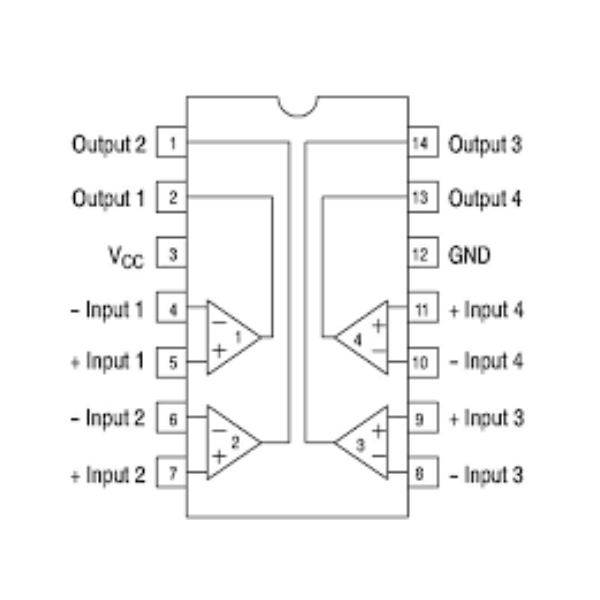

LM339 Low-Power Low Offset Voltage Quad Comparator IC DIP-14

LM339 Quad Comparator IC: A Versatile Precision Component

The LM339 is a powerful quad comparator IC designed for a wide range of applications. Its precision, versatility, and low power consumption make it a valuable component for various electronic circuits.

Key Features:

• Four Independent Comparators: Offers four separate comparators for flexible circuit design.
• Wide Supply Voltage Range: Operates from a single supply voltage of 3V to 32V, accommodating various power sources.
• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered or energy-efficient systems.
• Precision Performance: Features low input bias and offset parameters, ensuring accurate and reliable comparisons.
• Internal Frequency Compensation: Requires no external components for frequency compensation, simplifying circuit design.
• Common Mode Input Range: Includes ground, allowing for direct sensing near ground level.
• High-Voltage Capability: Can handle a differential input voltage range of up to 32V.

Applications:

• Signal Processing: Used in various signal processing applications, such as filtering, amplification, and waveform shaping.
• Analog-to-Digital Conversion: Employed in simple analog-to-digital converters.
• Pulse and Square Wave Generation: Generates precise pulses and square waves for timing and control applications.
• VCOs: Used in voltage-controlled oscillators for frequency modulation.
• High-Voltage Digital Logic Gates: Interfaces with high-voltage digital logic circuits.

Specifications:

• Package: DIP-14
• Amplifier Type: General Purpose Amplifier
• Number of Channels: 4
• Output Current Per Channel: 40mA
• Gain Bandwidth Product (GBP): 1.2 MHz
• Voltage Gain: 100dB
• Technology: Bipolar
• Operating Temperature: 0°C to 70°C
