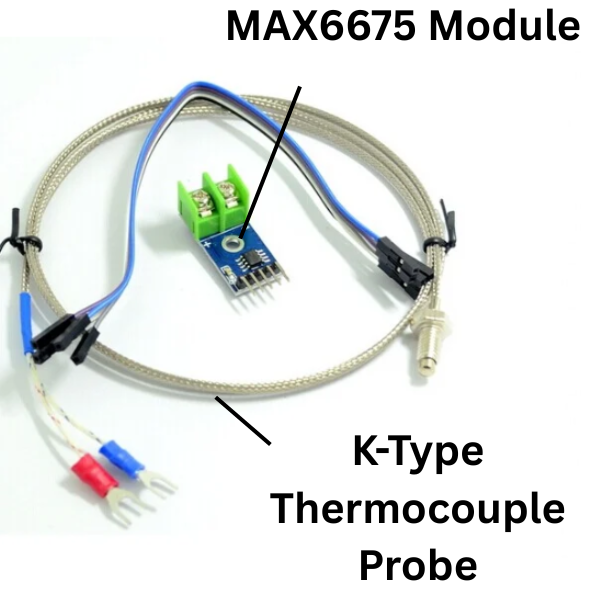

MAX6675 Module with K Type Thermocouple Sensor

Description:

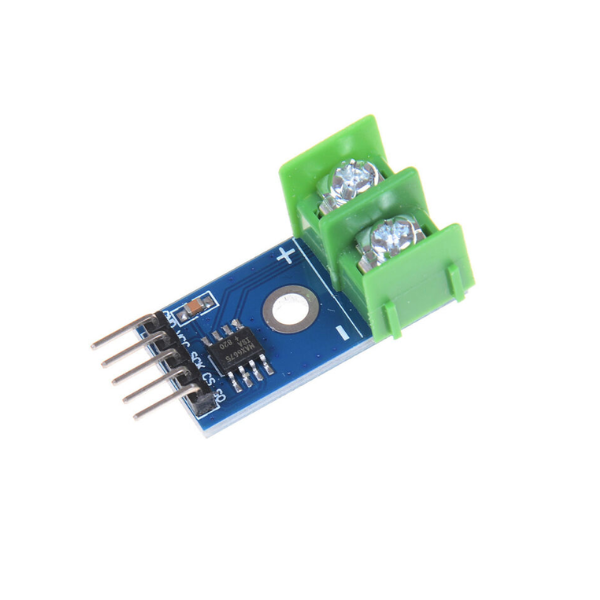

The MAX6675 Module is a compact and convenient solution for measuring temperature using a K-type thermocouple. It integrates the MAX6675 IC, a dedicated thermocouple-to-digital converter, with a K-type thermocouple sensor. This module simplifies the process of acquiring accurate temperature readings by handling the complexities of thermocouple signal conditioning and providing a digital output that can be easily interfaced with microcontrollers like Arduino, Raspberry Pi, and others.

Key Features:

• Integrated MAX6675 IC: Provides precise thermocouple signal conditioning and digital conversion.

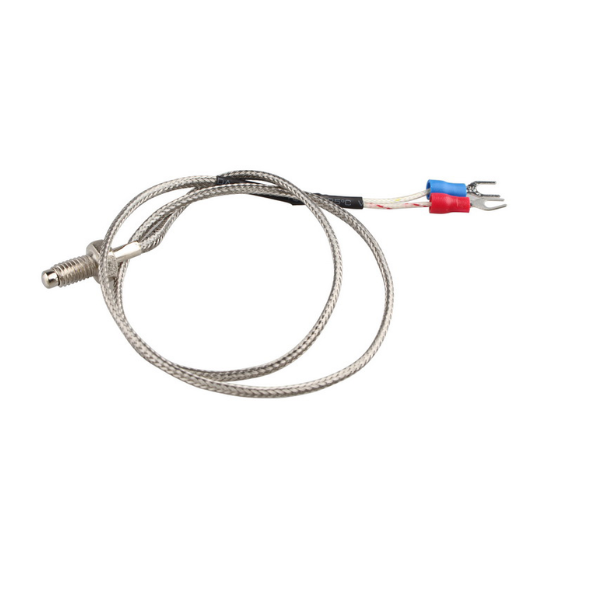

• K-Type Thermocouple: Measures a wide temperature range, typically from 0°C to 1024°C.
• Digital Output: Delivers temperature data in a digital format (typically SPI) for easy communication with microcontrollers.
• Cold Junction Compensation: Automatically compensates for temperature variations at the cold junction, ensuring accurate readings.
• High Resolution: Offers a resolution of 0.25°C, enabling precise temperature measurements.
• Compact Size: Small and easy to integrate into various projects and applications.

Specifications:

• Temperature Range: 0°C to 1024°C (depending on the specific thermocouple used)
• Resolution: 0.25°C
• Accuracy: Typically within ±2°C
• Interface: SPI (Serial Peripheral Interface)
• Operating Voltage: 3.0V to 5.5V
• Power Consumption: Low power consumption
• Dimensions: Varies depending on the specific module design
