Mechanical Limit Switch End Stop Module

Mechanical End Stop Switch

Reliable and Versatile

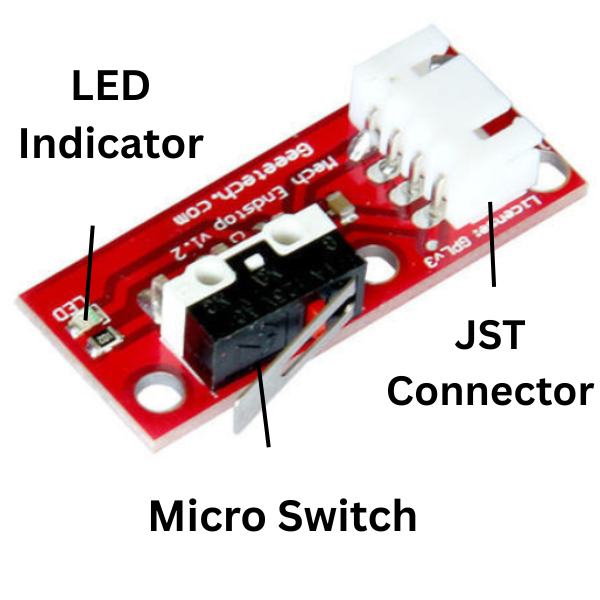

This mechanical end stop switch is a simple yet effective device for detecting the end of a mechanical movement or process. It features a lever-activated switch that sends a clear signal when activated.

Key Features:

• Lever-Activated Switch: Easy to trigger and reliable in operation
• LED Indicator: Visually confirms switch activation
• Standard Connector: Uses a 4-pin, 100" pitch header for easy integration
• Durable Construction: Built to withstand mechanical stress and harsh environments
• Versatile Applications: Suitable for various industrial and DIY projects

How it Works:

When the lever is pushed or pulled, the switch is activated, pulling the signal to a low state. This change in signal can be easily detected by your microcontroller or other control system. The onboard LED provides a visual indication of switch activation.

Specifications:

• Cable Type: 22 AWG
• Working Voltage/Current: 300V / 2A
• Temperature Resistance: 80 degrees Celsius
• Cable Length: Approximately 70 cm
• Connector: 4-pin, 100" pitch header

Applications:

• Industrial Automation: Limit switches, end-of-travel detection, and more
• DIY Projects: Robotics, machinery control, and other applications
• Manufacturing: Quality control, assembly lines, and production processes

DATA SHEET AND USECASE

 Overview:

• Electrical Specifications:

  • Operating Voltage: Usually 5V or 12V DC
  • Current Rating: Defines the maximum current the switch can handle without damage
  • Contact Configuration: Details whether the switch is normally open (NO) or normally closed (NC)

• Mechanical Specifications:

  • Actuation Method: Describes how the switch is activated (e.g., lever, roller)
  • Operating Force: The amount of force required to activate the switch
  • Travel Distance: The distance the actuator moves to trigger the switch
  • Mounting Type: Information on how the switch is mounted within the system

• Environmental Specifications:

  • Operating Temperature Range: The temperature range within which the switch operates reliably
  • Ingress Protection Rating: Indicates the level of protection against dust and moisture

• Additional Features:

  • LED Indicators: Some modules include LEDs that indicate the switch's status (e.g., activated or not)
  • Debounce Circuitry: Built-in to prevent false triggering due to mechanical vibrations
