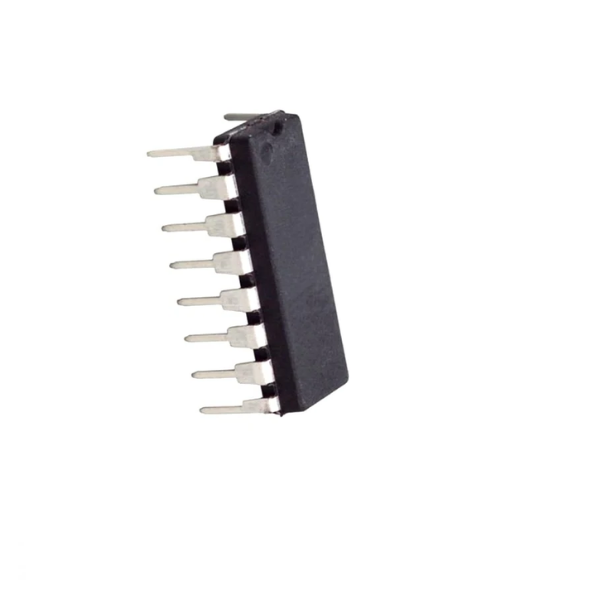

MT8870 IC – DTMF Decoder IC

MT8870: A Versatile DTMF Decoder for Your Projects

The MT8870 is a powerful DTMF decoder IC designed to efficiently detect and process dual-tone multi-frequency signals. Its robust performance and low power consumption make it ideal for various applications.

Key Features:

• Complete DTMF Reception: Offers a fully integrated solution for DTMF signal detection.
• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered devices.
• Flexible Input Gain: Allows you to adjust the input signal gain to match your specific requirements.
• Customizable Guard Time: Provides flexibility in setting the guard time between DTMF tones.
• Central Office Quality: Delivers reliable and accurate DTMF decoding performance.
• Power-Saving Features: Includes power-down and inhibit modes for efficient power management.

Applications:

• Telephony Systems: Used in telephones and other telecommunication equipment for DTMF signaling.
• Remote Control Systems: Enables remote control of devices using DTMF tones.
• Interactive Voice Response (IVR) Systems: Processes DTMF inputs for user interaction.
• Security Systems: Used in security systems for access control and alarm activation.

Specifications:

• Supply Voltage: Typically 5V
• Power Consumption: Low power consumption
• Input Sensitivity: Adjustable
• Output Format: 4-bit binary code
• Operating Temperature: -40°C to +85°C
• Package: Typically 28-pin DIP or SOIC
