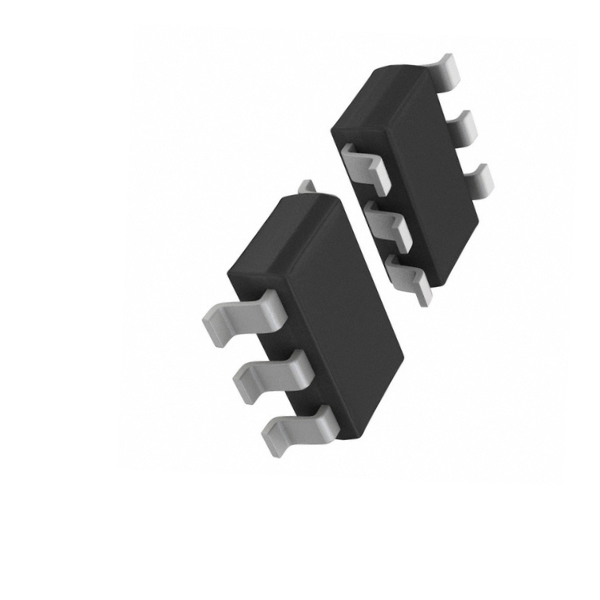

NST489AMT1G NPN Transistor IC TSOP-6 30V-2A Make onsemi

The NST489AMT1G is a high-performance NPN transistor manufactured by onsemi. It is designed for a wide range of applications requiring high current and voltage handling capabilities.

Key Features:

• Fast Switching Speed: Offers a transition frequency of 300MHz.
• Surface Mount Package: Ideal for space-constrained designs.
• High Current Rating: Handles up to 2A of continuous collector current.
• Low Saturation Voltage: Minimizes power dissipation in switching applications.
• NPN Transistor: Suitable for both switching and amplification applications.
• High Voltage Rating: Can withstand up to 30V between the collector and emitter.

Specifications:

• Package: TSOP-6
• Transistor Type: NPN
• Power Dissipation : 535mW
• Collector Current : 2A (max)
• Transition Frequency : 300MHz
• Collector-Emitter Voltage : 30V (max)

Applications:

• Motor control
• Power amplifiers
• Switching circuits
• Industrial automation
• Consumer electronics

DATA SHEET AND USECASE

Key Features:

• Package Type: TSOP-6
• Power Dissipation: 535 mW​
• Collector Current (I_C): 2 A​
• Gain Bandwidth Product (f_T): 300 MHz​
• Collector-Emitter Voltage (V_CEO): 30 V​
• Low Collector-Emitter Saturation Voltage (V_CE(sat)): 100 mV​
