PC817 SMD Transistor Output Optocoupler Pack 5

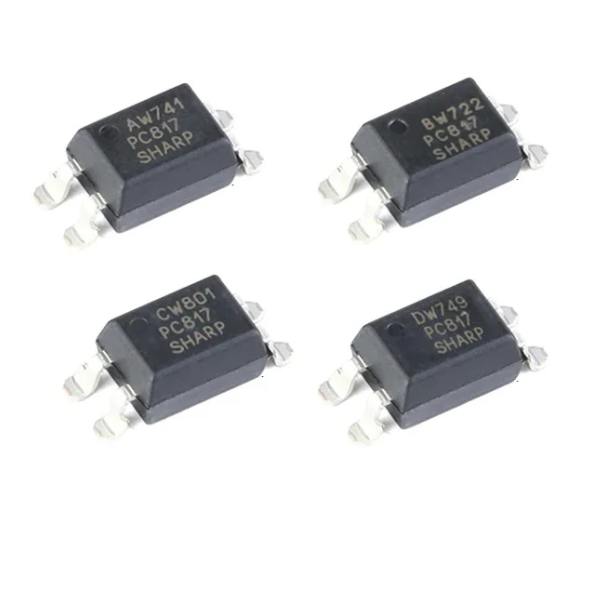

Product: PC817 SMD Transistor Output Optocoupler (Pack of 5 ICs)

Description: Enhance your electronic projects with the versatile PC817 Optocoupler, designed for reliable signal isolation and protection. This high-performance component features a transistor output for direct control of external circuits, making it ideal for a wide range of applications.

Key Features:

• Transistor output: Provides direct control of external devices without the need for additional components.
• High isolation voltage: Ensures electrical separation between input and output circuits.
• Fast switching speed: Enables rapid signal transmission.
• Compact SMD package: Ideal for space-constrained designs.
• Wide input and output voltage ranges: Compatible with various power sources and devices.

Specifications:

• Input current: 5mA (typical)
• Output current: 10-20mA
• Isolation voltage: 5000Vrms
• Forward voltage: 1.2V (typical)
• Operating temperature: -40°C to +100°C

Applications:

• Industrial automation
• Motor control
• Power supplies
• Medical devices
• Robotics
• Signal isolation
• Noise suppression
