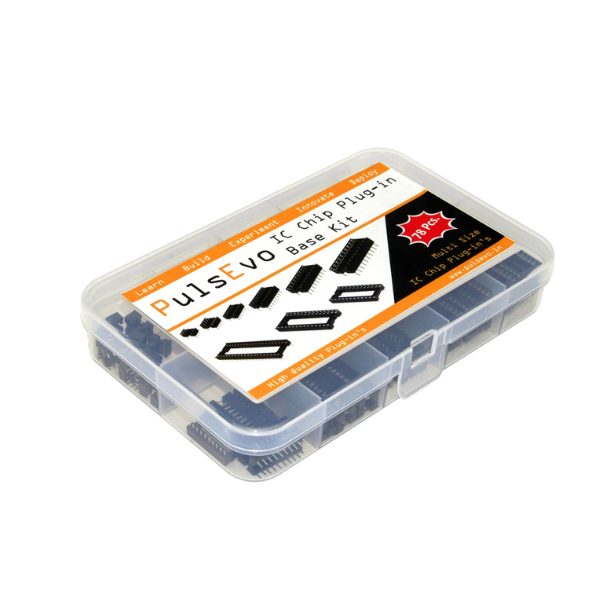

PulsEvo IC Chip Plug-in 78pcs Base Kit Ideal for General Purpose PCB Prototyping

(0 Reviews)
Out of Stock

Category: IC

SKU: 1560


MRP Price:
₹599 49% OFF
Discounted Price:
₹303 (Pc)

Quantity:
(0 available)

Weight:
200 g

Total Price:
Bulk Order
Share:
Sold By
DSMElectro Solutions Private Limited
(1249 customer reviews)

IC Chip Plug-In Base: A Versatile Tool for PCB Assembly

This comprehensive kit offers a variety of IC blocks for easy integration into your PCB designs. With its convenient plug-in feature and durable storage case, it's a valuable asset for electronics enthusiasts and professionals alike.

Key Features:

  • Versatile IC Compatibility: Accommodates various IC types for flexible design options.
  • Easy Insertion and Removal: Simplifies the process of installing and removing ICs from your PCB.
  • Protective Storage: Comes with a durable plastic storage case to keep your ICs organized and safe.
  • Protects Temperature-Sensitive ICs: Prevents damage to ICs during soldering by providing a protective interface.
  • Microcontroller Compatibility: Ideal for working with microcontroller ICs, allowing for easy programming and testing.

Applications:

  • PCB Assembly: Simplifies the process of integrating ICs into your PCB designs.
  • Prototyping: Facilitates rapid prototyping and testing of electronic circuits.
  • Electronic Projects: Ideal for hobbyists and engineers working on various electronic projects.

Specifications:

  • IC Compatibility: Supports a wide range of IC types
  • Material: High-quality plastic
  • Storage Case: Durable plastic case for organization and protection

DATA SHEET AND USECASE

Key Features:

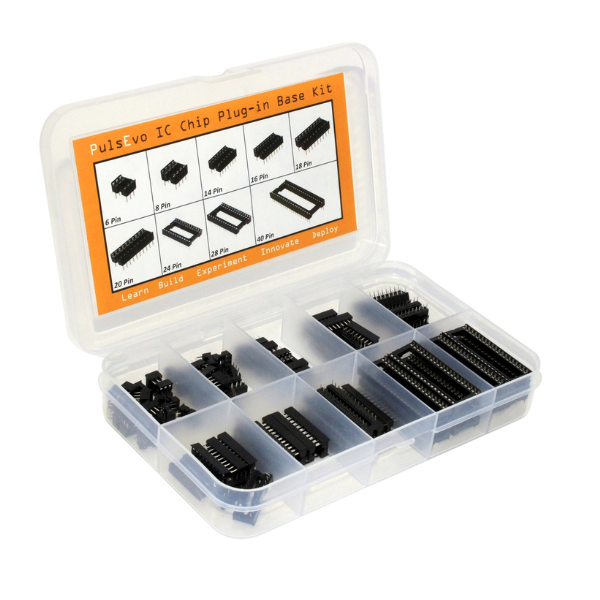

  • Variety of Socket Sizes: The kit includes 78 pieces of IC sockets ranging from 6-pin to 40-pin configurations, accommodating a wide range of ICs.

  • Molded Orientation Notch: Each socket features a molded notch to ensure proper orientation of ICs during insertion, reducing the risk of incorrect placement.

  • Heat Protection: Using sockets helps protect temperature-sensitive ICs from potential heat damage during soldering, as the ICs can be inserted into the sockets after the sockets have been soldered onto the PCB.

  • Durable Storage Box: The kit comes with a durable plastic storage box, keeping the sockets organized and protected from damage or mixing with other components.
