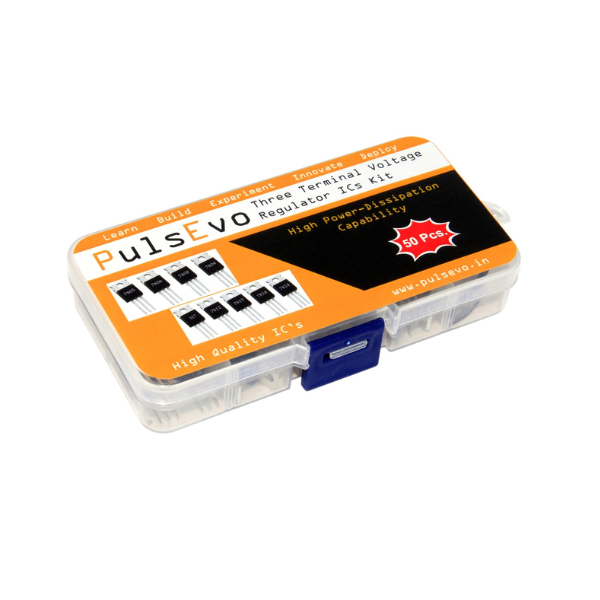

PulsEvo Three Terminal Voltage Regulator ICs Kit (50PCS) | High Power-Dissipation Capability | Output Current up to 0.5A to 1.5A

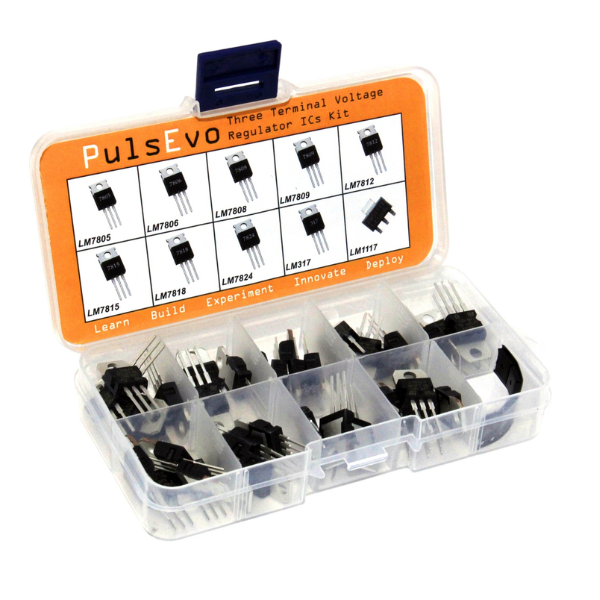

Versatile Voltage Regulator Kit: LM317T, L7805CV, L7806CV, L7808CV, L7809CV, L7810CV, LM1117, L7815CV, L7818CV, L7824CV

This comprehensive kit offers a wide range of voltage regulators, providing flexible and reliable power solutions for various electronic applications.

Key Features:

• Versatile Voltage Options: Includes multiple voltage regulator types to suit your specific needs.
• Local On-Card Regulation: Eliminates the distribution issues associated with single-point regulation.
• Robust Protection: Features internal current limiting, thermal shutdown, and safe area protection for enhanced reliability.
• High Current Capability: Capable of delivering substantial output current, making it suitable for powering various devices.
• Adjustable Voltage and Current: Can be used with external components to achieve adjustable voltage and current levels.
• Convenient Packaging: Comes in a high-quality plastic box with a separator for easy organization and storage.

Applications:

• Power Supplies: Provides regulated power for various electronic devices.
• Industrial Control: Used in industrial control systems for reliable power regulation.
• Instrumentation: Powers instruments and measurement devices.
• Consumer Electronics: Widely used in consumer electronics for power supply and regulation.

Specifications:

• Voltage Regulator Types: LM317T, L7805CV, L7806CV, L7808CV, L7809CV, L7810CV, LM1117, L7815CV, L7818CV, L7824CV
• Mounting Type: Through-hole
• Output Type: Adjustable
• Protection: Thermal overload, short-circuit, safe area protection

DATA SHEET AND USECASE

Specifications:

• LM317T: An adjustable regulator that can provide output voltages from 1.25V to 37V with an output current up to 1.5A.

• L7805CV: Provides a fixed 5V output with a maximum output current of 1.5A.

• L7806CV: Provides a fixed 6V output with a maximum output current of 1.5A.

• L7808CV: Provides a fixed 8V output with a maximum output current of 1.5A.

• L7809CV: Provides a fixed 9V output with a maximum output current of 1.5A.

• L7810CV: Provides a fixed 10V output with a maximum output current of 1.5A.

• LM1117: A low-dropout regulator available in fixed voltages like 3.3V and adjustable versions, typically supporting up to 0.8A.

• L7815CV: Provides a fixed 15V output with a maximum output current of 1.5A.

• L7818CV: Provides a fixed 18V output with a maximum output current of 1.5A.

• L7824CV: Provides a fixed 24V output with a maximum output current of 1.5A.
