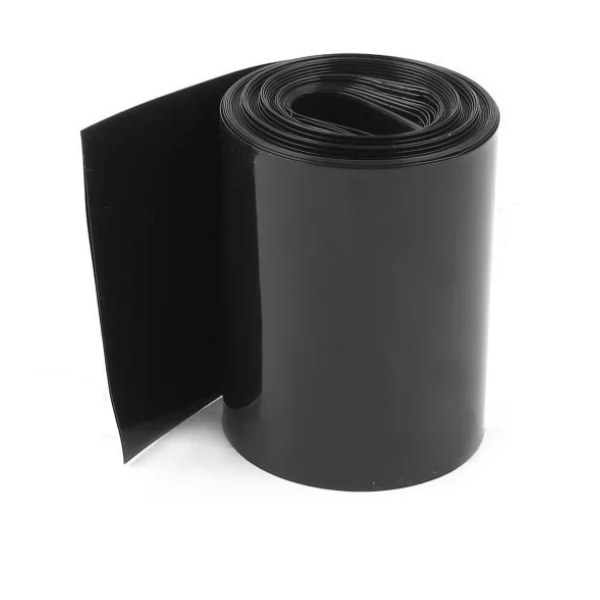

PVC Heat Shrink Sleeve 170 mm 1 Meter Black for Battery Pack

• Protection: Shields battery packs from physical damage, moisture, dust, and abrasion.
• Insulation: Provides electrical insulation, preventing short circuits and improving safety.
• Strain Relief: Reduces stress on soldered connections, extending the life of the battery pack.
• Organization: Keeps battery pack components neatly bundled and organized.
• Professional Appearance: Gives a clean and finished look to custom battery packs.

• Material: Polyvinyl Chloride (PVC)
• Color: Black
• Inside Diameter: 170 mm
• Length: 1 meter
• Shrink Ratio: 2:1 (shrinks to half its original diameter)
• Operating Temperature: -55°C to 105°C

DATA SHEET AND USECASE

Key Specifications:

• Material: Polyvinyl Chloride (PVC)

• Flat Width: 170 mm

• Length: 1 meter

• Shrink Ratio: Typically 2:1, allowing the sleeve to shrink to approximately half its original diameter upon application of heat

• Shrink Temperature: Begins shrinking at around 80°C

• Operating Temperature Range: -40°C to +105°C

• Dielectric Strength: Minimum of 1,083 V/mil (43 kV/mm), indicating excellent electrical insulation properties
