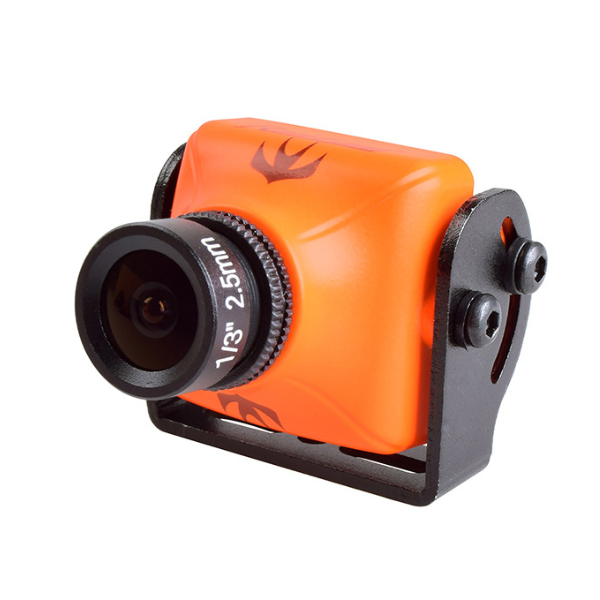

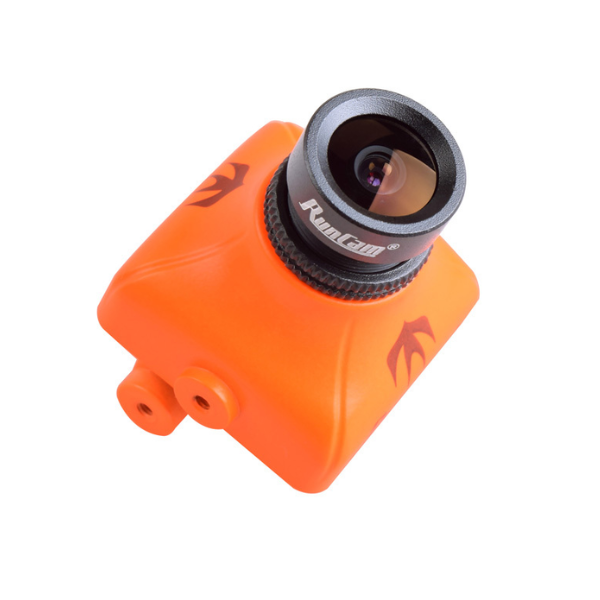

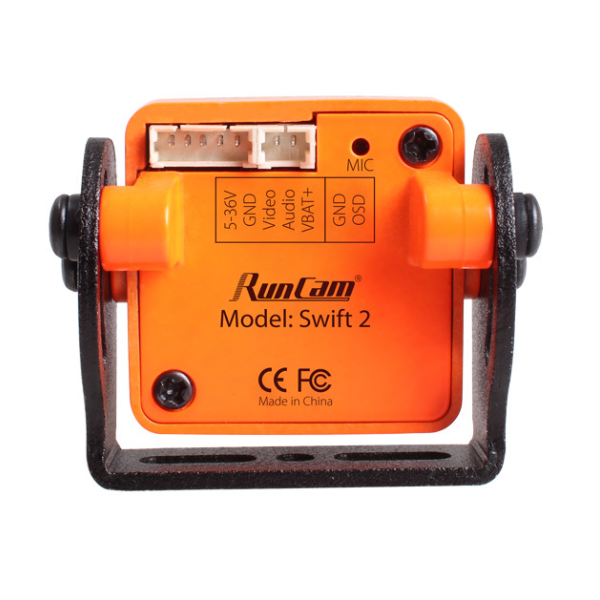

RUNCAM SWIFT 2 1/3 CCD 600TVL PAL FPV CAMERA

The Run-Cam Swift 2 is a high-quality FPV camera designed for use in drones and other aerial applications. It features a 1/3" Sony Super HAD II CCD sensor and a 600 TVL resolution, providing excellent image quality and clarity.

Key Features:

• High-quality image sensor: 1/3" Sony Super HAD II CCD for exceptional image clarity.
• 600 TVL resolution: Provides high-resolution images for detailed viewing.
• Wide dynamic range: Offers clear images in both bright and low-light conditions.
• 2D noise reduction: Reduces image noise for cleaner, more detailed footage.
• Integrated OSD: Displays essential camera settings and information on screen.
• Wide operating voltage: Can be powered by 5-36V, making it compatible with a variety of FPV vehicles.
• Compact and lightweight: Small and lightweight design for easy installation.

Specifications:

• Image Sensor: 1/3" Sony Super HAD II CCD
• Resolution: 600 TVL
• Lens: 2.3mm (wide-angle)
• Field of View: 150 degrees
• Video Output: PAL/NTSC
• Power Supply: 5-36V DC

Applications:

• FPV drones: Provides a first-person view for flying drones.
• Aerial photography and videography: Captures high-quality aerial footage.
• Surveillance: Monitors areas from a bird's-eye view.
• Other applications: Can be used in various other applications that require a small, high-quality camera.

DATA SHEET AND USECASE

Key Specifications:

• Image Sensor: 1/3" SONY Super HAD II CCD
• Horizontal Resolution: 600TVL
• Lens Options: 2.5mm / 2.3mm / 2.1mm
• Signal System: PAL/NTSC (Non-Switchable)
• Integrated OSD: Yes
• Integrated Microphone: Yes
• S/N Ratio: >60dB (AGC OFF)
• Electronic Shutter Speed: PAL: 1/50100,000; NTSC: 1/60100,000
• Auto Gain Control (AGC): Yes
• Back Light Compensation (BLC): Yes
• Minimum Illumination: 0.01Lux@1.2F
• WDR: D-WDR
• DNR: 2DNR
• Day/Night: Color / Auto / B&W
• Power: DC 5 to 36V
• Working Current: 5V@130mA / 12V@70mA
• Net Weight: 14g
• Dimensions: 28.5mm * 26mm * 26mm
