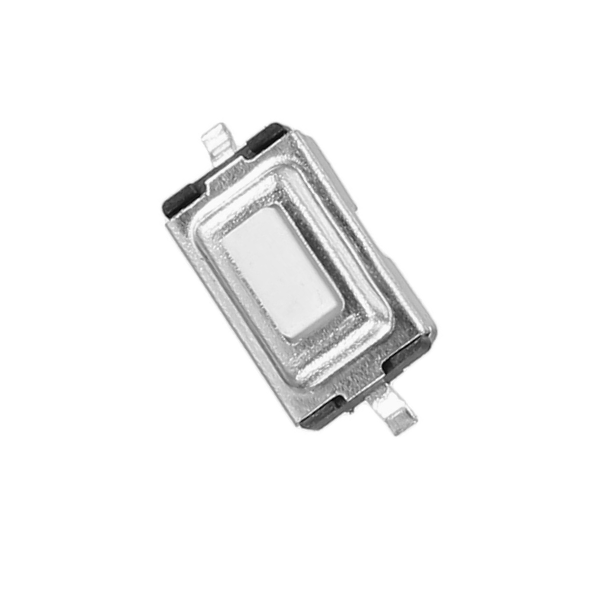

SMD Tactile Switch 3x6x2.5mm Pack 2

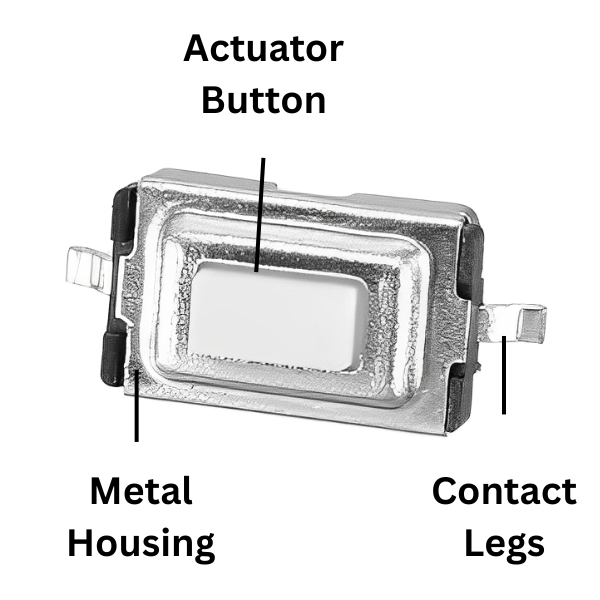

SMD Tactile Switch

Precision and Durability

The SMD Tactile Switch is a reliable and precise input solution for various electronic projects. Its compact design and high-quality construction make it ideal for applications where space is limited.

Key Features:

• Surface Mount Technology: Easy integration into PCB designs
• High Operating Force: Suitable for demanding applications like automotive equipment
• Long Lifespan: Rated for 300,000 cycles of operation
• Reliable Dome Contact: Ensures consistent and accurate switching
• Strong Tactile Feedback: Provides a satisfying user experience
• Waterproof and Resistant: Protects against environmental factors

Applications:

• Telecommunications: Keypads, control panels, and other devices
• Consumer Electronics: Remote controls, calculators, and more
• Audio/Visual Equipment: Buttons, switches, and controls
• Medical Devices: User interfaces and diagnostic tools
• Testing and Instrumentation: Precision measurement devices
• Computer Peripherals: Keyboards, mice, and other input devices

DATA SHEET AND USECASE

Key Specifications:

• Contact Type: Momentary contact
• Mounting Type: SMD
• Dimensions: 3mm (Length) x 6mm (Width) x 2.5mm (Height)
• Current Rating: 50mA at 12V DC
• Contact Resistance: Maximum 100mΩ
• Insulation Resistance: Minimum 100MΩ at 500V DC
• Dielectric Strength: 250 VAC for 1 minute
• Operating Force: 160±50gf
• Operating Temperature Range: -25°C to +70°C
• Storage Temperature Range: -30°C to +80°C
