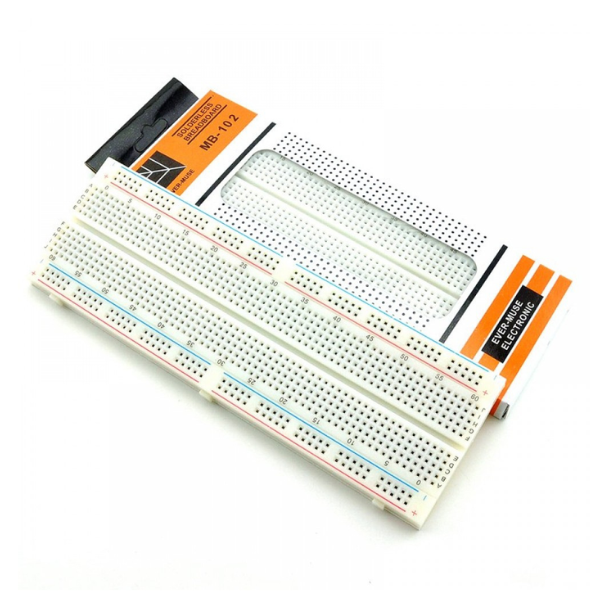

Solderless Breadboard MB-102 High Quality

Description:

The MB-102 solderless breadboard is a rectangular plastic board with a grid of holes and interconnected metal strips underneath. It provides a convenient and reusable platform for prototyping electronic circuits without the need for soldering. Components are easily inserted and connected using jumper wires, making it ideal for experimentation, learning, and quick circuit building. The "high quality" designation usually implies better materials and construction compared to cheaper breadboards.

Key Features:

• Solderless: Components are connected using push-in wires, eliminating the need for soldering.
• Reusable: Circuits can be easily modified or disassembled, and the breadboard can be used repeatedly.
• Interconnected Rows and Columns: The internal metal strips provide electrical connections between the holes, allowing for easy circuit construction.
• Standard Hole Spacing: The holes are spaced to accommodate standard component leads and jumper wires.
• Adhesive Backing (Often): Many MB-102 breadboards have an adhesive backing, allowing them to be attached to a surface for stability.
• Power Rails: Typically includes two or four power rails  along the sides for easy access to power and ground.
• High Quality: Implies better materials, construction, and contact reliability, leading to a longer lifespan and more dependable connections.

Applications:

• Prototyping: Quickly building and testing electronic circuits before committing to a permanent design.
• Educational Projects: Learning about basic electronics and circuit design.
• DIY Electronics: Building hobby projects, experimenting with circuits, and testing ideas.
• Arduino and Microcontroller Projects: Interfacing with microcontrollers and building related circuits.
• Circuit Debugging: Isolating and testing different parts of a circuit.

Specifications:

• Model: MB-102
• Material: ABS Plastic , Phosphor Bronze
• Number of Holes: Varies, usually around 830 tie points
• Hole Spacing: 0.1 inch (2.54 mm)
• Dimensions:  around 16.5cm x 5.4cm x 0.85cm
• Color: White
• Power Rails: Two or four power rails
• Adhesive Backing: Often included
• Contact Resistance: Low contact resistance for reliable connections.

DATA SHEET AND USECASE

Key Specifications:

• Dimensions: Approximately 16.7 x 5.7 x 1 cm.

• Tie Points: 830 total (630 for terminal strips and 200 for distribution strips).

• Material: Constructed from durable ABS plastic with phosphor bronze nickel-plated spring clips.

• Wire Compatibility: Suitable for wire sizes ranging from 20 to 29 AWG (0.3mm to 0.8mm).

• Additional Features: Includes a peelable self-adhesive backing for secure placement and colored coordinates to assist in component placement.
