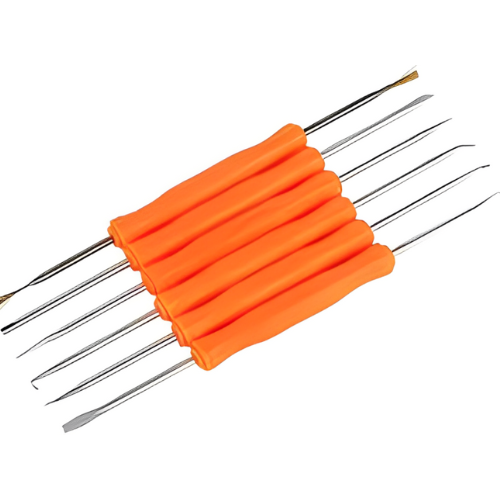

SOLDRON 6 in 1 Solder Assist Desoldering Tool Circuit PCB Cleaning Kit

Description:

A solder assist set is a comprehensive tool kit designed to facilitate efficient and precise soldering tasks. It typically includes a range of essential tools and materials, such as a soldering iron, solder, de-soldering braid, flux, tweezers, and a heat sink.

Key Features:

• Soldering Iron: A heated tool used to melt solder and create electrical connections between components.
• Solder: A metal alloy used to join components together.
• Desoldering Braid: A braided wire used to remove excess solder from joints.
• Flux: A chemical substance that cleans metal surfaces and promotes solder flow.
• Tweezers: Used to manipulate components and hold them in place during soldering.
• Heat Sink: A device used to dissipate heat from components during soldering to prevent damage.
• Other Accessories: May include wire strippers, cleaning cloths, and a stand for the soldering iron.

Applications:

• Electronics Assembly: Connecting components on circuit boards and other electronic devices.
• Repair Work: Repairing damaged electronic components or circuits.
• Hobby Projects: Building and modifying electronic devices or gadgets.
• Industrial Applications: Soldering connections in various industrial settings.
• Educational Purposes: Learning and practicing soldering techniques.

Benefits:

• Efficiency: Streamlines the soldering process, saving time and effort.
• Precision: Ensures accurate and reliable connections.
• Safety: Helps prevent damage to components and injuries.
• Versatility: Can be used for a wide range of soldering tasks.
• Convenience: Provides a complete set of tools in one place.

DATA SHEET AND USECASE

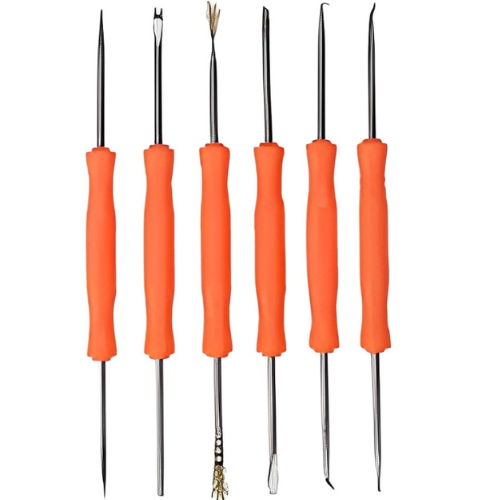

Components and Their Uses:

1. Positioning Terminal: Assists in accurately adjusting and positioning surface mount component pins on finger pads or designated locations.

2. Brush: Used to clean dust and residue from parts prior to soldering, ensuring a clean surface for optimal soldering results.

3. Awl: Useful for cleaning or enlarging pad holes on the PCB, facilitating the insertion of component leads.

4. Knife: Allows for cutting copper connections on the PCB, aiding in circuit modifications or repairs.

5. Scraper: Removes residual solder, flux, or oxide layers from pads or fingers, maintaining clean contact points on the PCB.

6. Fork: Used to fix or adjust component leads and connecting wires, ensuring proper alignment and connection.

Specifications:

• Product Name: SOLDRON 6-in-1 Solder Assist De-soldering Tool Circuit Board Soldering Aids PCB Cleaning Kit.
