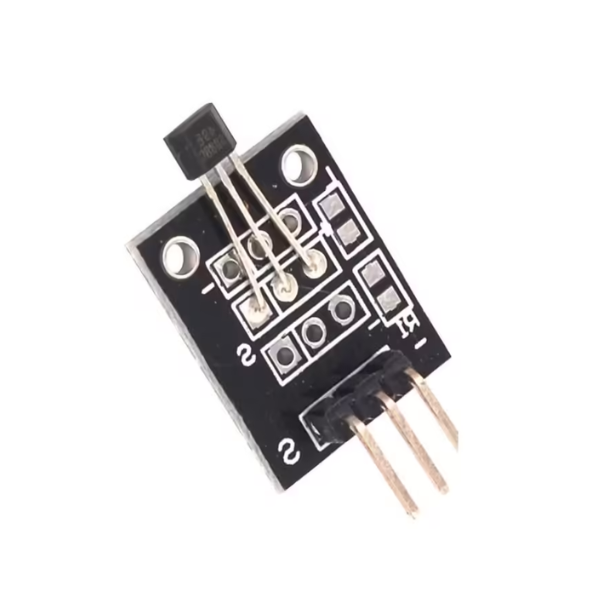

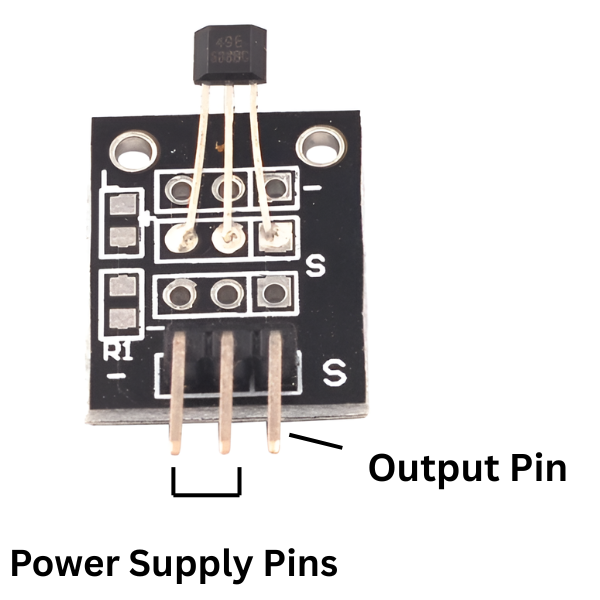

SS49E Linear Hall Effect Sensor Module

The SS49E Linear Hall Effect Sensor Module is a highly sensitive and accurate device designed to measure magnetic fields. It utilizes the Hall effect principle to convert the magnetic field strength into a voltage output, providing a reliable and precise measurement.

Key Features:

• Linear Output: Provides a linear relationship between the magnetic field strength and the output voltage.
• High Sensitivity: Detects even weak magnetic fields.
• Wide Operating Range: Can measure a wide range of magnetic field strengths.
• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered applications.
• Compact Size: Small and lightweight for easy integration into various projects.

Applications:

• Magnetic Field Measurement: Measures magnetic fields in various applications, such as scientific research, industrial automation, and robotics.
• Position Sensing: Detects the position of magnetic objects or components.
• Speed Measurement: Measures rotational speed by detecting the magnetic field generated by rotating objects.
• Proximity Sensing: Detects the presence of magnetic objects.
• Industrial Automation: Controls and monitors industrial processes based on magnetic field measurements.

DATA SHEET AND USECASE

Key Specification:

• Operating Voltage: 4.5V to 10.5V
• Output Type: Analog Voltage (ratiometric to the supply voltage)
• Output Voltage at Zero Field: Vcc/2 (mid-range output)
• Sensitivity: Approximately 2.5 mV/G (milli-volts per Gauss)
• Linear Range: -40 to +40 Gauss
• Package: TO-92 (3-lead package)
• Temperature Range: -40°C to +85°C
• Applications: Position sensing, current sensing, magnetic field detection, etc.
