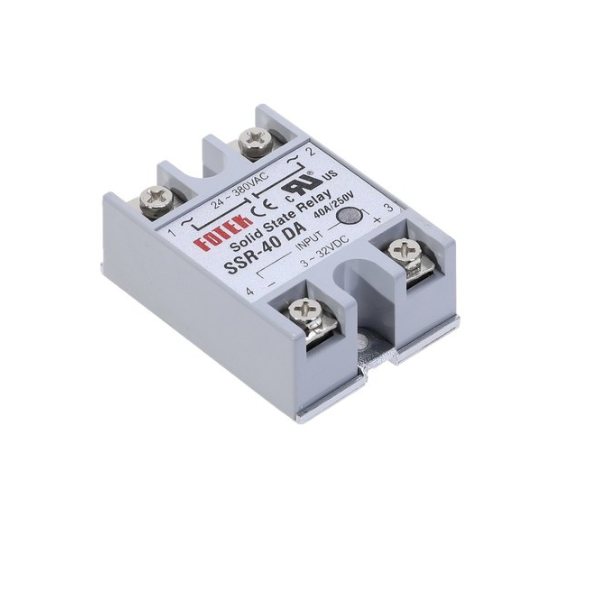

SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A

Description:

Control Heavy-Duty AC Loads with Precision:

Introducing the SSR-40DA solid state relay, a powerful and reliable solution for controlling high-current AC loads from low-voltage DC circuitry. This durable component offers exceptional performance and longevity.

Key Features:

• High Current Capacity: Handle loads up to 40 amps, making it suitable for demanding applications.
• Versatile Voltage Input: Operate with a DC control voltage between 3 and 32 volts.
• Wide AC Switching Range: Control AC loads from 24 to 380 volts.
• Long Service Life: Designed for extended use and minimal maintenance.
• Reduced EMI: Minimize electromagnetic interference for cleaner operation.
• Compact and Durable: Small footprint and robust construction for easy installation.

Benefits of Solid State Relays:

• Faster Switching: Achieve rapid on/off transitions for precise control.
• No Moving Parts: Eliminate mechanical wear and tear for increased reliability.
• Quiet Operation: Operate silently without the clicking sounds of mechanical relays.

Applications:

• Industrial Automation: Control heavy machinery and processes.
• Power Systems: Manage high-current loads in electrical grids.
• Laboratory Equipment: Power and control scientific instruments.
• Commercial Applications: Drive motors, heaters, and other large loads.

Package Includes:

• 1 x SSR-40DA Solid State Relay

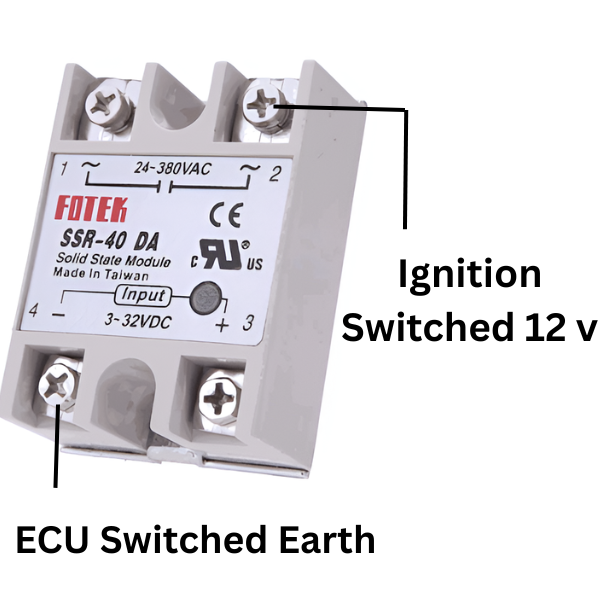

DATA SHEET AND USECASE

Key Specifications:

• Input Voltage: 3-32V DC
• Output Voltage: 24-380V AC
• Maximum Load Current: 40A
• Control Current: 3-25mA DC
• Switching Time: ≤10ms
• Dielectric Strength: ≥2.5kV AC
• Insulation Resistance: ≥500MΩ (500V DC)
• Operating Temperature Range: -20°C to +85°C
