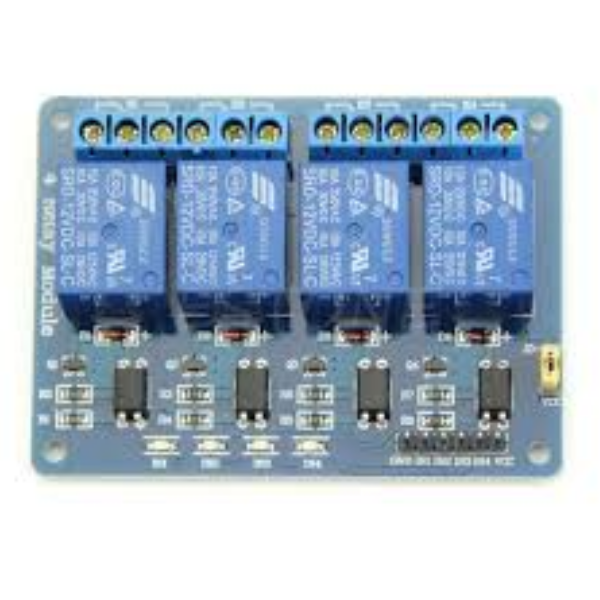

4 channel relay module (12V)

Sold By

DSMElectro Solutions Private Limited

(738 customer reviews)

Top Selling Products

1N4148 SWITCHING DIODE STANDARD 75V 150MA THROUGH HOLE 10

73% OFF

~~₹59~~ ₹17
Bluetooth HC-05 Wireless UART Module

55% OFF

~~₹599~~ ₹273
Programmable Robot Leju Humanoid Robot Aelos Pro Version With Remote Control D / A AL-PRO-E1E + Control

20% OFF

~~₹25,000~~ ₹20,001
Arduino Uno R3 board

51% OFF

~~₹999~~ ₹494
TP4056 1A Lithium Battery Charger C Type Module

78% OFF

~~₹99~~ ₹22
E-BIKE DC GEARED MOTOR 24V 250W 300RPM

51% OFF

~~₹5,999~~ ₹2,925
Openpilot cc3d flight controller

52% OFF

~~₹2,599~~ ₹1,238
Arduino Mega 2560 R3

35% OFF

~~₹1,999~~ ₹1,297

Description Reviews

Description:

Expand Your Project Capabilities with Powerful Control:

Introducing our versatile 12V 4-channel relay module, designed to seamlessly integrate into your microcontroller-based projects. This powerful component allows you to control a wide range of high-current appliances and equipment.

Key Features:

Quadruple Channel Functionality: Manage four separate loads simultaneously.
High-Current Capacity: Handle currents up to 10 amps at 250VAC or 30VDC.
Low-Power Consumption: Requires only 15-20mA driver current per channel.
Wide Compatibility: Works with popular microcontrollers like Arduino, 8051, AVR, PIC, DSP, ARM, and more.
Easy Integration: Simple connection options for effortless integration into your projects.
Clear Indicators: LED indicators for each relay provide visual feedback on status.
Reliable Performance: Built with quality components for dependable operation.

Ideal Applications:

Home Automation: Control lights, appliances, and security systems.
Industrial Control: Operate machinery and equipment.
Robotics: Drive motors and actuators.
DIY Projects: Add powerful control to your creations.

Package Includes:

1 x 12V 4-Channel Relay Module

DATA SHEET AND USECASE

Key Features:

Relay Specifications: Each relay is typically rated for up to 10A at 250VAC or 30VDC, suitable for controlling lights, motors, or other high-power devices.

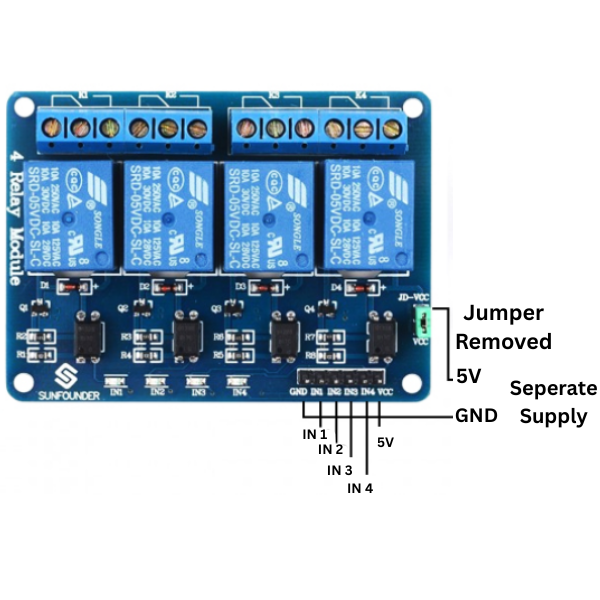

Control Signals: The module can be directly interfaced with various microcontrollers, including Arduino, AVR, PIC, and ARM. Each relay channel requires a control signal, usually needing 15-20mA driver current.
Optocoupler Isolation: Many modules feature optocouplers to electrically isolate the control signals from the high-power circuits, enhancing safety and reducing noise interference.
