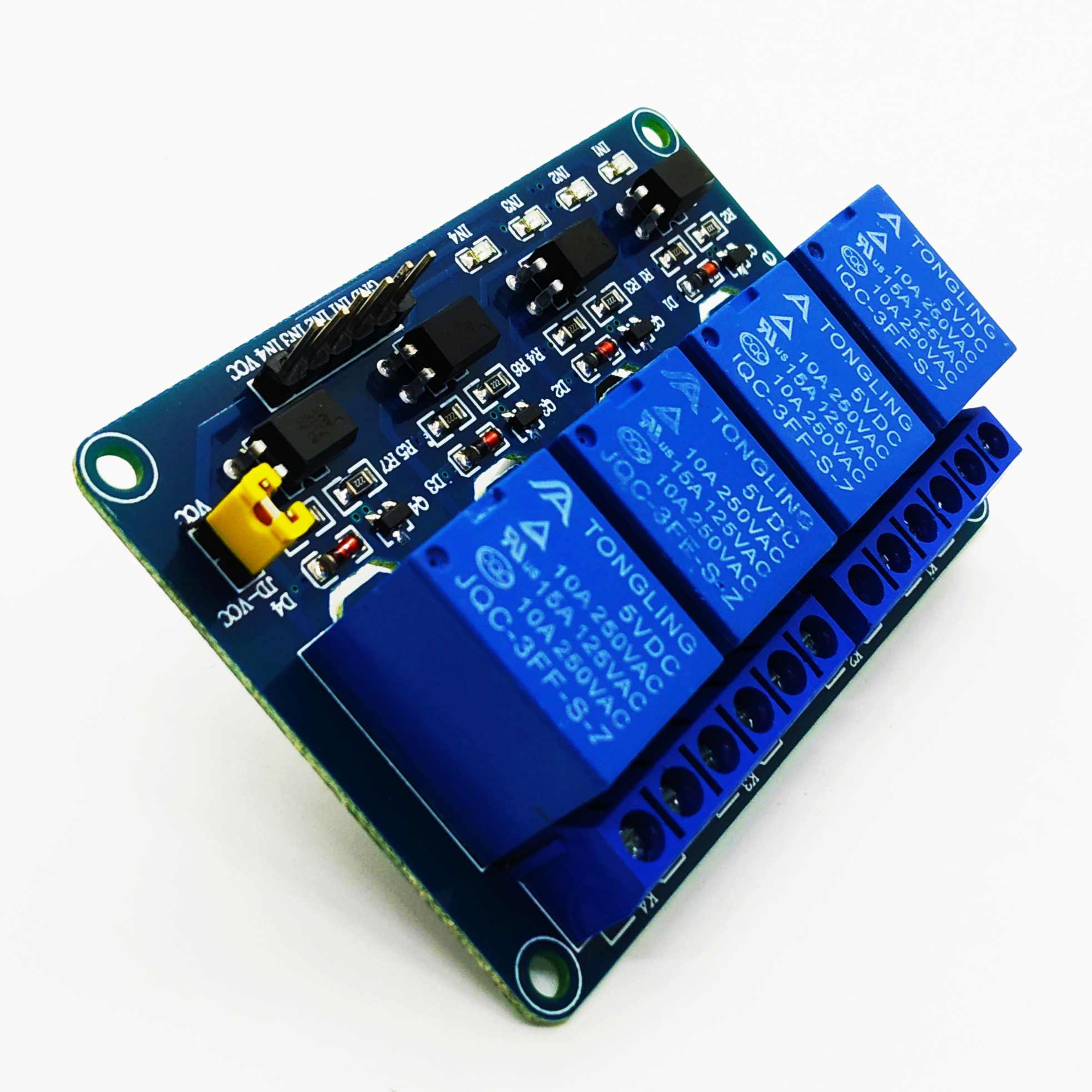

RELAY BOARD MODULE 4 CHANNEL 5V

Description:

Expand Your Project Capabilities with Powerful Control:

Introducing our versatile 5V 4-channel relay module, designed to seamlessly integrate into your microcontroller-based projects. This powerful component allows you to control a wide range of high-current appliances and equipment.

Key Features:

• Quadruple Channel Functionality: Manage four separate loads simultaneously.
• High-Current Capacity: Handle currents up to 10 amps at 250VAC or 30VDC.
• Wide Compatibility: Works with popular microcontrollers like Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, and more.
• Easy Integration: Simple connection options for effortless integration into your projects.
• Reliable Performance: Built with quality components for dependable operation.

Ideal Applications:

• Home Automation: Control lights, appliances, and security systems.
• Industrial Control: Operate machinery and equipment.
• Robotics: Drive motors and actuators.
• DIY Projects: Add powerful control to your creations.

Package Includes:

• 1 x 5V 4-Channel Relay Module

Related Products:

• Single-Channel Relay Modules: For simpler applications or prototyping.
• WiFi-Enabled Relay Modules: For remote control and IoT integration.
• High-Voltage Relay Modules: For controlling larger loads.
• Optocoupler-Isolated Relay Modules: For enhanced electrical isolation.
• Power Supply Modules: For providing the necessary voltage for your projects.

DATA SHEET AND USECASE

Key Features:

• Control Inputs: Four input pins (IN1 to IN4) correspond to each relay, typically requiring a 5V TTL signal with a driver current of 15-20mA.

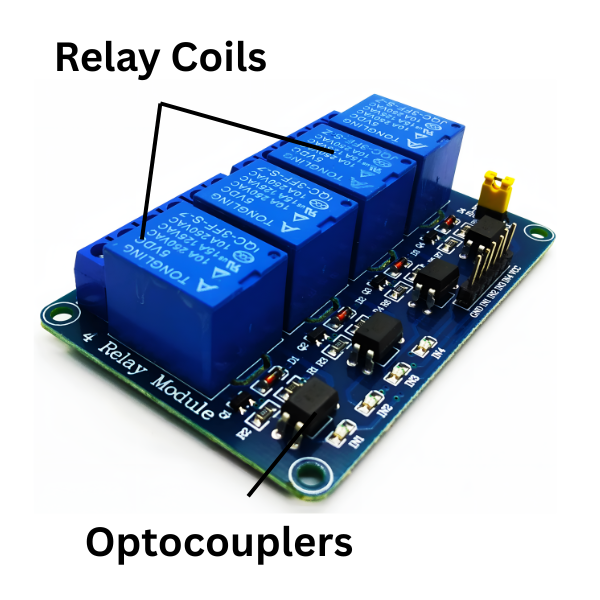

• Optocoupler Isolation: Optocouplers provide electrical isolation between the control signals and the high-power circuits, enhancing safety and reducing interference.

• Indicator LEDs: Each relay has an associated LED that lights up when the relay is active, providing a visual status indication.
