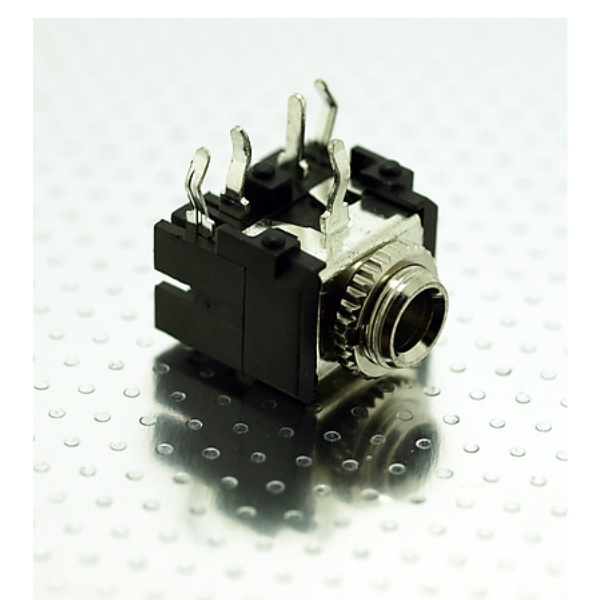

Stereo Jack (STX3100 3.5MM)

Description

The STX3100 3.5mm stereo jack is a common audio connector used to connect electronic devices that support stereo audio. It has a three-conductor design, allowing for the transmission of both left and right audio channels.

Key Features

• 3.5mm Connector: Standard size for compatibility with a wide range of devices.
• Stereo Audio: Supports both left and right audio channels for a balanced sound experience.
• Gold-Plated Contacts: Ensures reliable and high-quality audio signal transmission.
• Durable Construction: Built to withstand frequent use and provide long-lasting performance.
• Various Mounting Options: Available in panel mount or solder cup configurations.

Applications

3.5mm stereo jacks are used in a wide range of electronic devices, including:

• Audio Equipment: Amplifiers, speakers, headphones, and audio interfaces.
• Computers and Laptops: Providing audio input and output connections.
• Mobile Devices: Used in smartphones, tablets, and MP3 players.
• Gaming Consoles: Connecting controllers, headsets, and external speakers.
• Custom Audio Projects: Building DIY audio systems and devices.

DATA SHEET AND USECASE

Specifications:

• Contact Rating: 16V DC at 0.3A.

• Contact Resistance: 30 milliohms maximum to terminals; 50 milliohms maximum to sleeve.

• Insulation Resistance: 100 megohms minimum at 250V DC.

• Dielectric Withstanding Voltage: 250V AC RMS for 1 minute.

• Operating Temperature Range: -25°C to +85°C.

• Materials:

  • Housing: PBT thermoplastic, black color, UL94V-0 rated.
  • Bushing: Brass, nickel-plated
