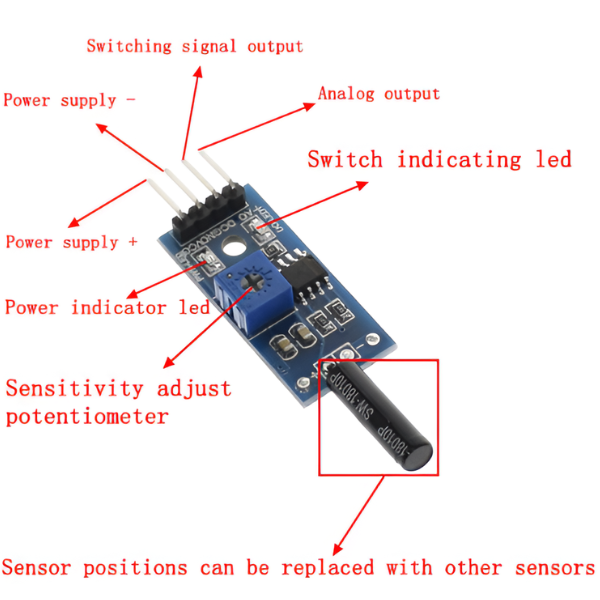

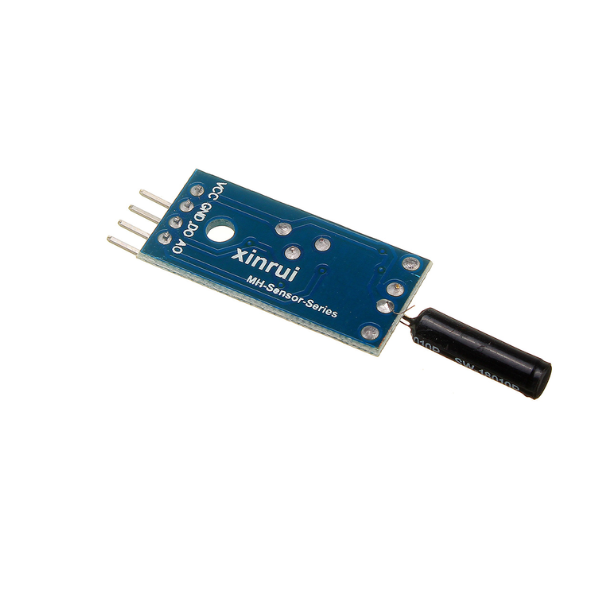

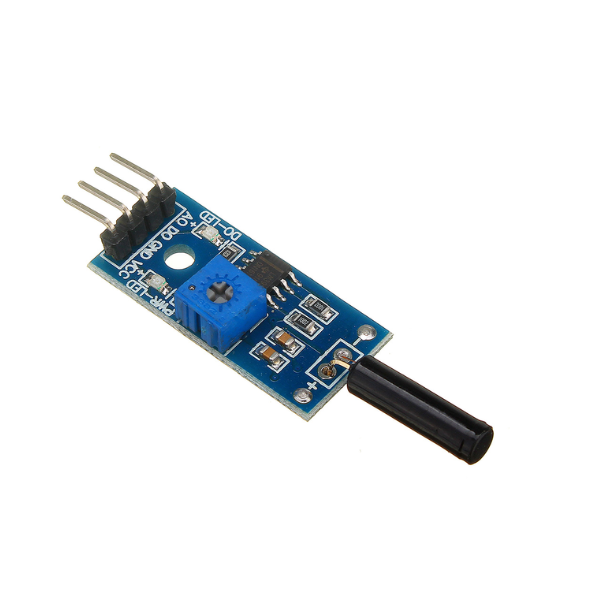

Tilt Vibration SW-180 Sensor Switch Module

Description:

The Tilt Vibration SW-180 Sensor Switch Module is a compact and versatile device designed to detect both tilt and vibration. It incorporates a highly sensitive sensor that triggers an output signal when the module is tilted beyond a certain angle or subjected to vibrations. This makes it suitable for a wide range of applications, including:

• Security systems: Detecting unauthorized movement or tampering.
• Home automation: Triggering alarms, lighting, or other devices based on tilt or vibration events.
• Industrial applications: Monitoring machine vibration, detecting equipment malfunctions, or triggering safety mechanisms.
• Robotics: Detecting changes in orientation or movement.

Key Features:

• Dual Functionality: Detects both tilt and vibration.
• High Sensitivity: Reacts to subtle movements and vibrations.
• Compact Size: Easy to integrate into various projects.
• Simple Output: Provides a clear digital output signal.
• Versatility: Suitable for a wide range of applications.

Specifications:

• Operating Voltage: Typically 3.3V to 5V DC
• Output Signal: Digital (High/Low)
• Sensitivity: Adjustable
• Dimensions: Varies depending on the specific module
• Mounting: Often includes mounting holes for easy installation

DATA SHEET AND USECASE

Key Specifications:

• Maximum Working Voltage: 12V
• Maximum Current:
  • SW-18010P: <20mA
  • SW-18020P: <5mA
• Open Circuit Resistance: >10 MΩ
• On Resistance: <5 Ω
• Operating Temperature: -25°C to 85°C
