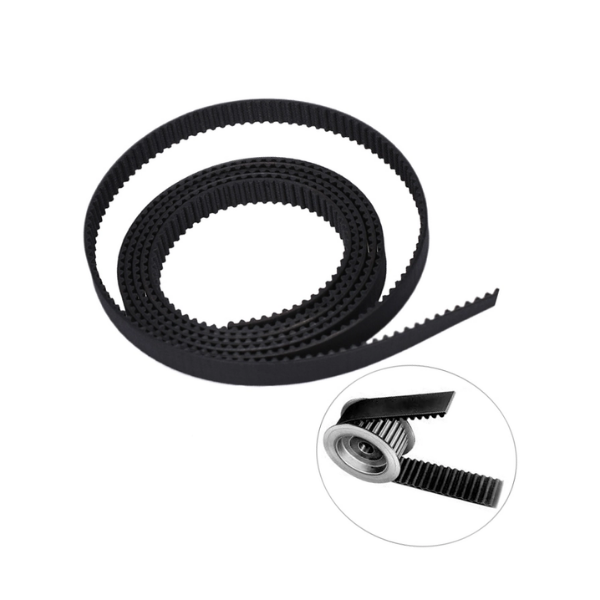

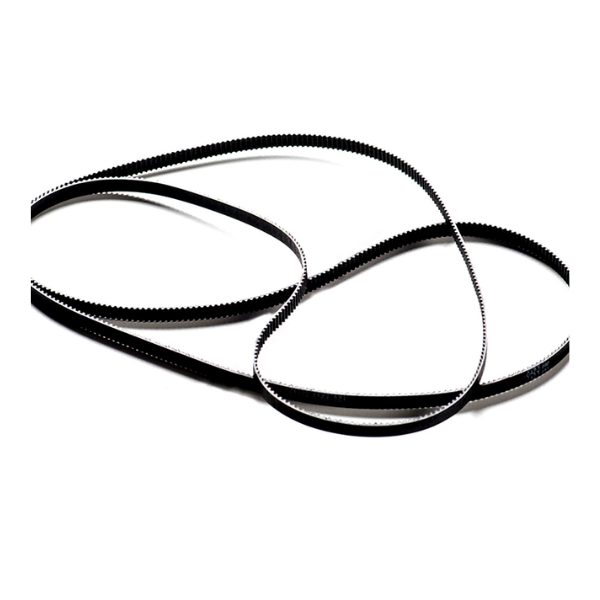

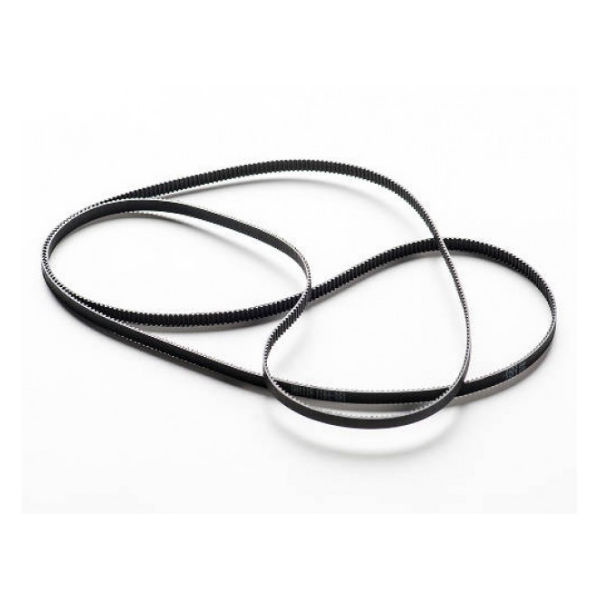

Timing Belt GT2 Profile - 2mm pitch - 1Meter

• The GT2 timing belt is a synchronous belt designed for linear motion applications.
• "GT2" refers to the tooth profile, which is specifically shaped to minimize backlash and ensure accurate movement.
• "2mm pitch" indicates the distance between the centers of adjacent teeth.
• "1 Meter" specifies the length of the belt.
• These belts are typically made from a polyurethane or neoprene material reinforced with steel cords for strength and durability.

• Precise Motion: The GT2 profile minimizes backlash, providing accurate and repeatable positioning.
• Synchronous Operation: Ensures that the belt and pulley move in perfect synchronization.
• 2mm Pitch: Allows for fine resolution and precise movement.
• High Strength: Reinforced construction provides excellent tensile strength.
• Durable Materials: Resistant to wear and tear, ensuring a long service life.
• Versatility: Available in various widths to suit different load requirements.

• 3D Printers: Used for precise movement of the print head and build platform.
• CNC Machines: Enables accurate positioning of tools and workpieces.
• Robotics: Provides reliable motion control for robotic arms and other mechanisms.
• Linear Actuators: Drives linear motion systems in various industrial and automation applications.
• Laser Engravers: Facilitates precise movement of the laser head.
• Automation Equipment: Used in a wide range of automated systems.

DATA SHEET AND USECASE

Key Specifications:

• Pitch: 2mm
• Width: Typically 6mm
• Length: Supplied in 1-meter open-ended sections
• Material: Commonly made from neoprene with fiberglass reinforcement for durability and reduced stretch

• Breaking Strength: Approximately 86 N per 1mm of belt width
