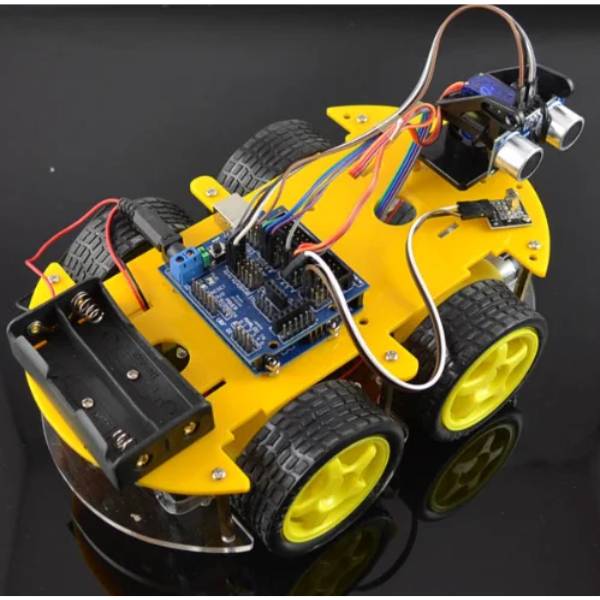

Ultrasonic Intelligent Bluetooth Robot Car Kit

The Ultrasonic Intelligent Bluetooth Robot Car Kit is a versatile and educational robotics project that allows users to build and control a fully functional robot car using their smartphone or computer. It combines ultrasonic sensors, Bluetooth connectivity, and intelligent programming to enable the robot to navigate its surroundings, avoid obstacles, and perform various tasks.

Key Features:

• Ultrasonic Sensors: The robot is equipped with ultrasonic sensors that can detect objects within a certain range, allowing it to avoid collisions and navigate through complex environments.
• Bluetooth Connectivity: The robot can be controlled wirelessly using a smartphone or computer via Bluetooth. This provides flexibility and convenience in operation.
• Intelligent Programming: The robot can be programmed using various programming languages to perform different tasks, such as line following, obstacle avoidance, and object detection. This allows for customization and creativity.
• DIY Assembly: The kit requires users to assemble the robot from individual components, providing a hands-on learning experience and fostering problem-solving skills.
• Educational Value: The Ultrasonic Intelligent Bluetooth Robot Car Kit is a valuable educational tool, as it introduces users to robotics, electronics, programming, and problem-solving concepts.

DATA SHEET AND USECASE

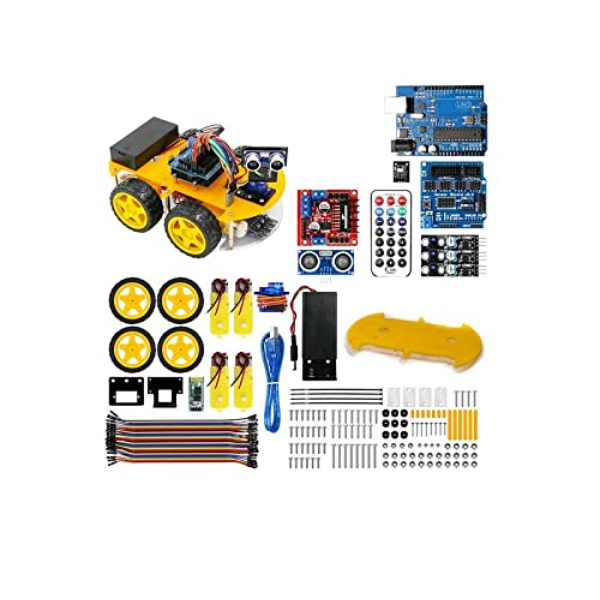

Key Components:

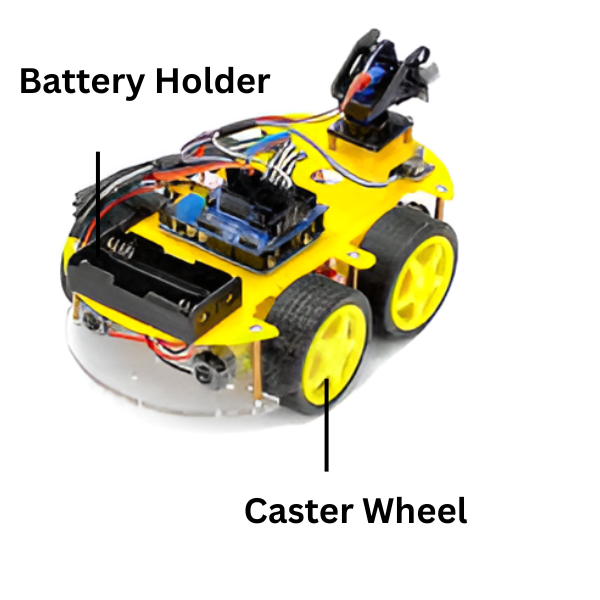

• Chassis and Motors: A robust 4-wheel drive (4WD) chassis equipped with four gear motors and 65mm wheels ensures stability and maneuverability.

• Control Boards: An Arduino-compatible UNO R3 board serves as the central controller, interfacing with various sensors and modules. A motor drive board manages the power and control signals to the motors.

• Sensors:

  • Ultrasonic Sensor: Detects obstacles and measures distance, enabling the car to navigate around objects.
  • Infrared (IR) Sensors: Facilitate line tracking and obstacle avoidance by detecting variations in surface colors and proximity.


• Communication Modules:

  • Bluetooth Module (HC-05/HC-06): Allows wireless control of the robot car via smartphones or other Bluetooth-enabled devices.

  • Infrared Remote Control: Provides an alternative method for manual control of the car.
