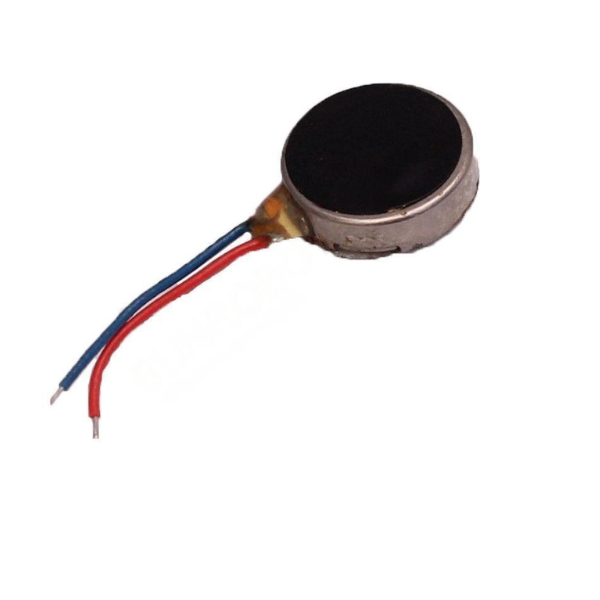

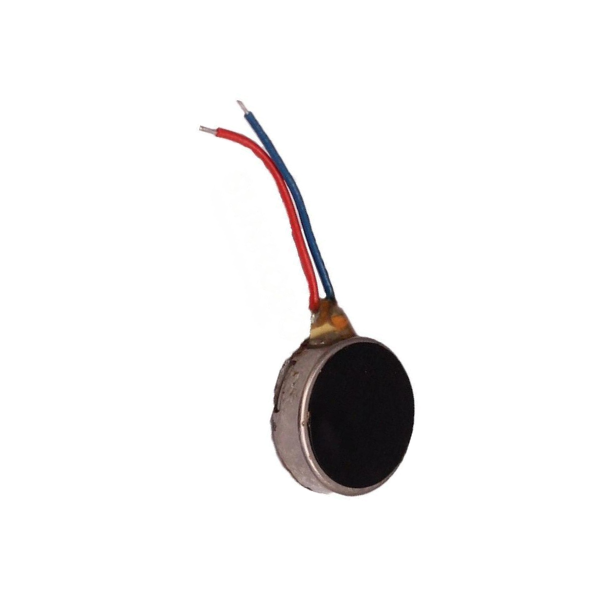

Vibration Motor Round Coin Button Type 10mm

Description:

A 10mm round coin-type vibration motor is a small, self-contained unit that produces vibrations. It's designed for surface mounting and is commonly used to provide tactile feedback in various electronic devices. The "coin" or "button" shape refers to its small, flat, cylindrical form factor.

Key Features:

• Small and Compact: 10mm diameter makes it ideal for space-constrained applications.
• Coin/Button Shape: Easy to mount on PCBs or within enclosures.
• Vibration Generation: Produces vibrations for tactile feedback.
• Surface Mountable: Designed for easy soldering onto PCBs.
• Low Voltage Operation: Typically operates at low DC voltages (e.g., 3V).
• Low Current Consumption: Efficient operation with minimal power draw.

Applications:

• Mobile Phones: Providing vibration feedback for calls, notifications, and touch interactions.
• Wearable Devices: Creating alerts and notifications in smartwatches, fitness trackers, etc.
• Game Controllers: Offering tactile feedback for in-game events.
• Alert Systems: Generating silent alerts in pagers, medical devices, etc.
• Haptic Feedback Devices: Providing tactile feedback in user interfaces.
• Small Electronics Projects: Adding vibration functionality to custom devices.

Specifications:

• Diameter: 10mm
• Thickness: 2mm to 4mm
• Operating Voltage: 3v DC
• Operating Current: 10 to 100 mA
• Vibration Force: 0.5g to 1.5g
• Lead Length: 10mm to 30mm

DATA SHEET AND USECASE

Key Specifications:

• Diameter: 10 mm
• Thickness: Varies by model (e.g., 2.7 mm, 3.0 mm)
• Rated Voltage: Typically 3.0 V DC
• Operating Voltage Range: 2.4 V to 3.6 V DC
• Rated Speed: Approximately 11,000 RPM at 3.0 V
• Rated Current: Around 80 mA
• Vibration Amplitude: Approximately 0.75 G
• Operating Temperature Range: -30°C to +70°C
