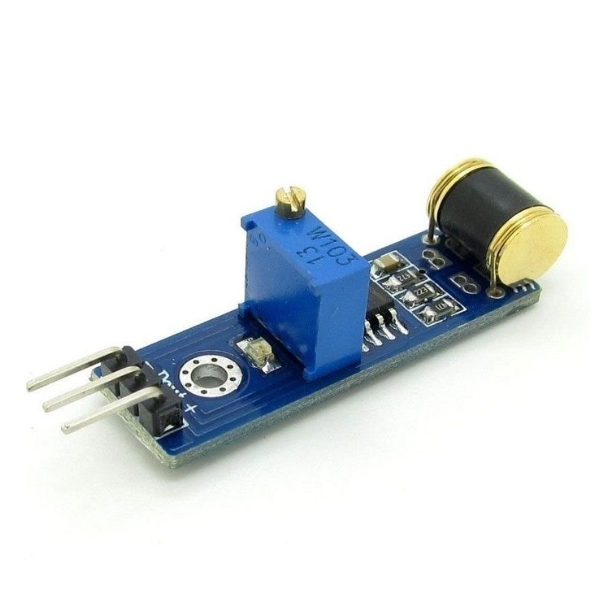

Vibration Shock Sensor Module 801S

Description:

The 801S Vibration Shock Sensor Module is a compact and sensitive device designed to detect vibrations and shocks. It utilizes a high-precision vibration sensor to accurately capture even subtle movements or impacts. The module provides a digital output signal, making it easy to interface with microcontrollers or other digital devices for further processing.

Key Features:

• High Sensitivity: Detects even minor vibrations and shocks.
• Digital Output: Provides a clean digital signal for easy interfacing.
• Adjustable Sensitivity: Allows for customization to suit specific application requirements.
• Compact Size: Ideal for space-constrained projects.
• Durable Construction: Ensures reliable performance in various environments.

Specifications:

• Supply Voltage: DC 3-5V
• Output Signal: Digital (TTL level)
• Sensitivity: Adjustable via potentiometer

Applications:

• Home Automation: Intrusion detection, appliance monitoring, smart home devices
• Security Systems: Alarm triggers, vibration alarms, motion detection
• Industrial Control: Machinery monitoring, fault detection, process control
• Robotics: Motion sensing, obstacle avoidance, robot control
• IoT Projects: Wearable devices, smart appliances, remote monitoring systems

DATA SHEET AND USECASE

Key Features:

• High Sensitivity: Capable of detecting minor vibrations and shocks.
• Dual Outputs: Provides both digital (D0) and analog (A0) signal outputs.

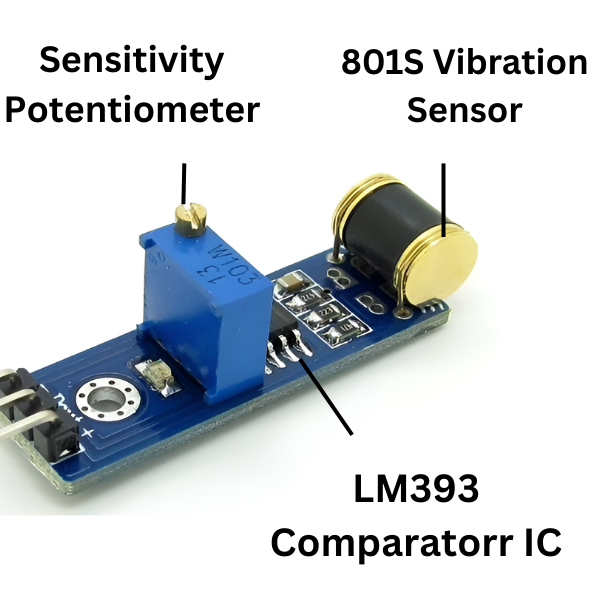

• Adjustable Sensitivity: Equipped with an onboard potentiometer to fine-tune detection thresholds.
• Durability: Gold alloy plating ensures a lifespan of up to 60 million shock detections.
• Wide Detection Range: Operates effectively without directional limitations.
