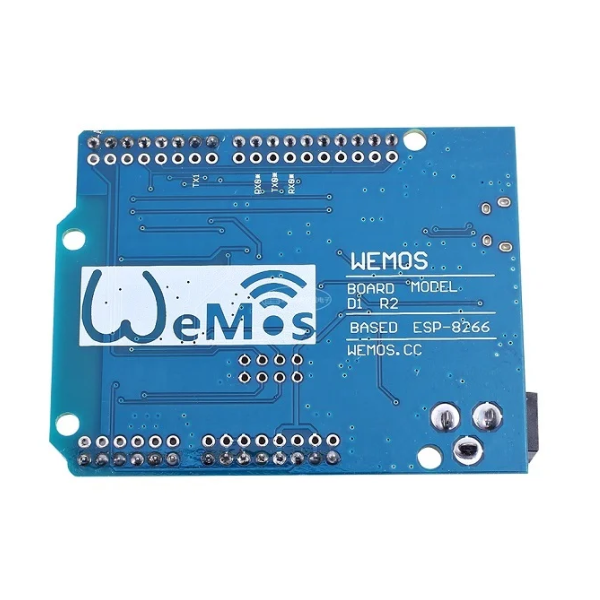

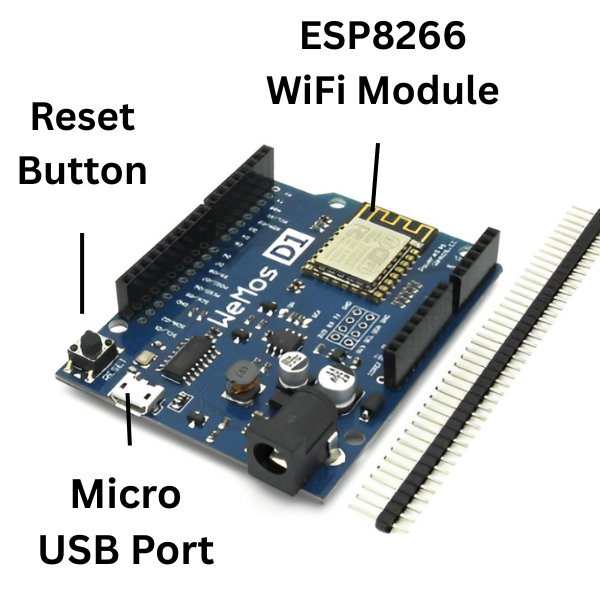

Wemos ESP8266 D1 R2 V2.1.0 WIFI Development Board

Description:

Unlock the potential of the internet of things (IoT) with the WeMos ESP8266 D1 R2 V2.1.0 WiFi development board. This versatile platform is equipped with a powerful ESP8266EX microcontroller, offering robust performance for your IoT projects.

Key Features:

• Built-in WiFi connectivity
• Large 4MB flash memory
• Onboard switching power supply
• Arduino-compatible layout and IDE
• 11 digital I/O pins and 1 analog input pin
• ESP8266EX microcontroller for powerful performance

Ideal for:

• Robotics
• Wearable technology
• Industrial automation
• Smart home automation
• Environmental monitoring

DATA SHEET AND USECASE

Key Features:

• Flash Memory: 4MB
• Clock Speed: 80/160MHz
• Operating Voltage: 3.3V
• Microcontroller: ESP8266EX
• Weight: Approximately 21.8g
• Dimensions: 68.6mm x 53.4mm
• Analog Input Pins: 1 (maximum input voltage: 3.2V)
• Digital I/O Pins: 11 (all I/O pins support interrupt, PWM, I2C, and one-wire functions, except D0)
