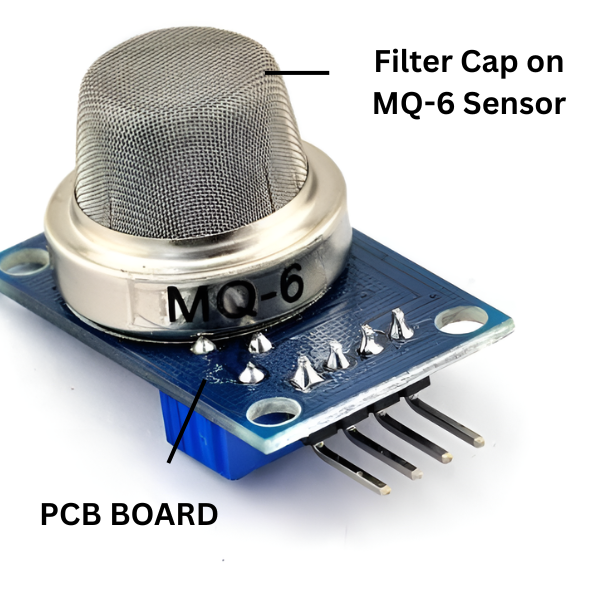

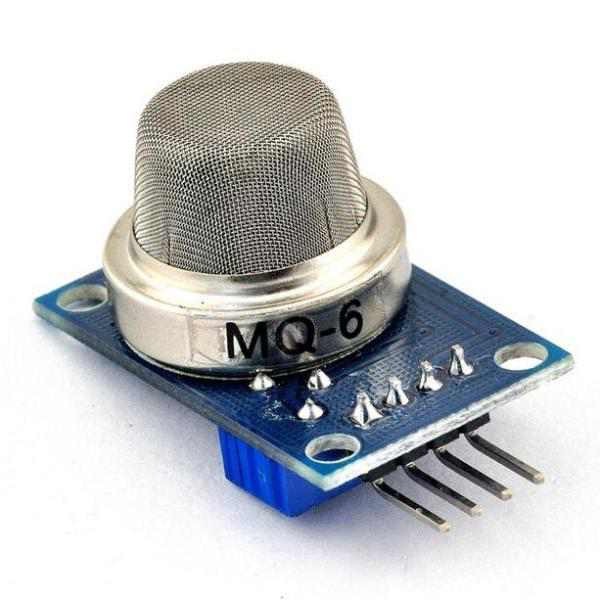

MQ-6 Isobutene Propane Gas Sensor Module

The MQ-6 Isobutene Propane Gas Sensor Module is a highly sensitive and selective device designed to detect and measure isobutene and propane gas concentrations in the surrounding environment. It utilizes a semiconductor oxide sensing element to detect these gases, providing a reliable and accurate output signal.

Key Features:

• High Sensitivity: Detects even low concentrations of isobutene and propane gas.
• Selectivity: Primarily responds to isobutene and propane gases, minimizing interference from other gases.
• Analog Output: Provides an analog voltage output proportional to the concentration of the detected gas.
• Temperature Compensation: Automatically compensates for temperature variations to ensure accurate measurements.
• Compact Size: Small and lightweight for easy integration into various applications.

Applications:

• Isobutene and Propane Gas Detection: Detects and alerts users to potential leaks of these gases.
• Industrial Process Control: Monitors isobutene and propane gas levels in industrial processes.
• Scientific Research: Studies isobutene and propane gas behavior and emissions.
• Environmental Monitoring: Monitors isobutene and propane gas levels in the atmosphere.

DATA SHEET AND USECASE

Key Features:

• Detection Range: Capable of sensing gas concentrations from 200 to 10,000 parts per million (ppm).
• Sensitivity: High sensitivity to LPG, isobutane, and propane, with minimal sensitivity to alcohol and smoke.
• Response Time: Fast response time of less than 10 seconds.
• Output: Provides both analog and digital outputs. The analog output ranges from 0 to 5V, corresponding to the gas concentration, while the digital output can be set using an onboard potentiometer.
• Operating Voltage: Heater voltage of 5V (AC or DC) with a tolerance of ±0.2V.
• Dimensions: Approximately 36 x 20 x 22 mm (LxWxH).
