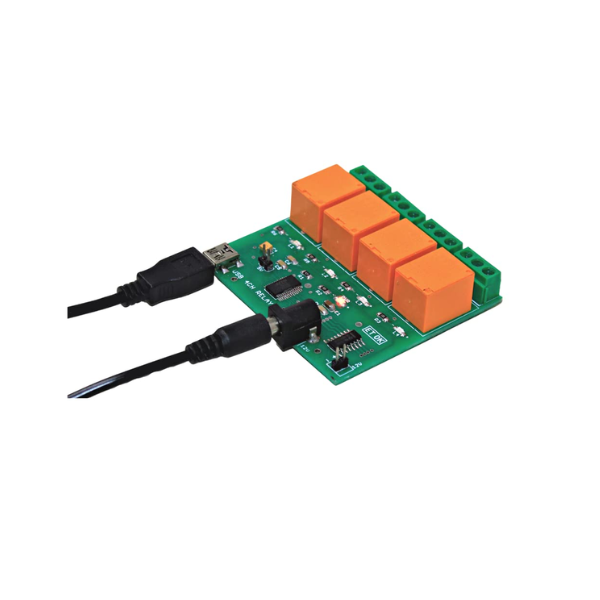

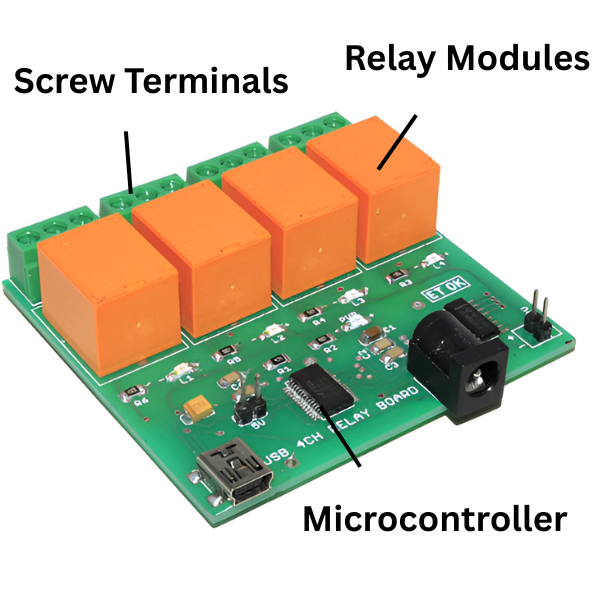

4-Channel USB Relay Board Best for Home Automation, PC Controlled Device Application Based on FTDI Driver4 channel relay module

Description:Control your devices with precision using our versatile 4x SPDT relay module. This powerful module features a fully integrated 1024-bit EEPROM for storing device descriptors and FIFO I/O configuration, ensuring seamless operation and customization.

Key Features:

• High-Capacity Storage: 1024-bit EEPROM for storing configuration data.
• Wide Operating Temperature: Reliable performance from -40°C to 85°C.
• High-Speed Data Transfer: Up to 1Mbyte/second data transfer rates.
• USB 2.0 Compatibility: Supports USB 2.0 Full Speed for fast and efficient communication.
• Powerful Relays: Control high-current loads with four SPDT relays (7A 250V, 12A 120V, 10A 125VAC, 10A 28VDC).
• Flexible Power Supply: Choose from 5V, 12V, or 24V power options to suit your application.

Applications:

• Industrial Automation: Control machinery and processes.

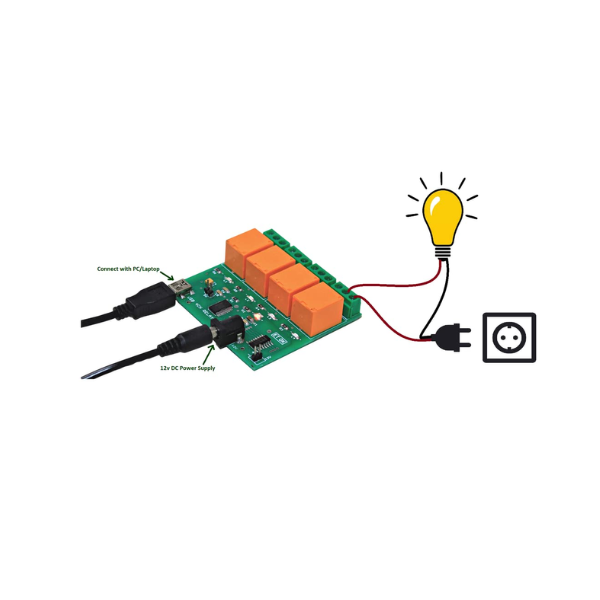

• Home Automation: Automate appliances and lighting.
• Scientific Research: Automate experiments and data collection.
• IoT Devices: Connect and control devices over the internet.

Specifications:

• EEPROM: 1024-bit
• Operating Temperature: -40°C to 85°C
• Data Transfer Rate: Up to 1Mbyte/second
• USB Compatibility: USB 2.0 Full Speed
• Relays: 4x SPDT (7A 250V, 12A 120V, 10A 125VAC, 10A 28VDC)
• Power Supply: 5V, 12V, or 24V
