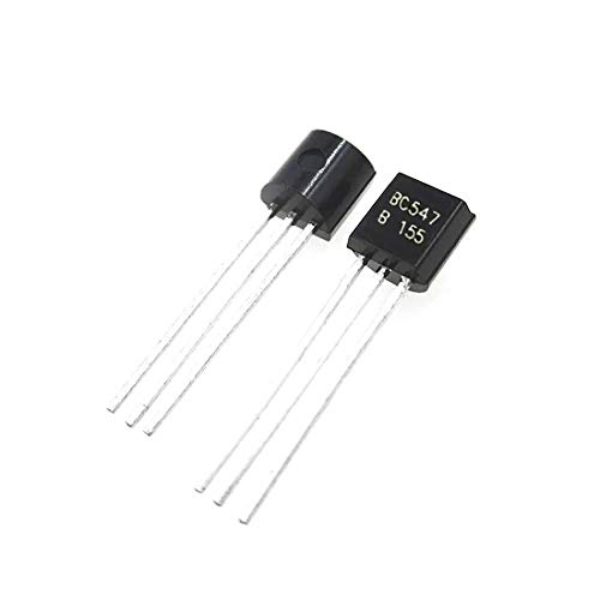

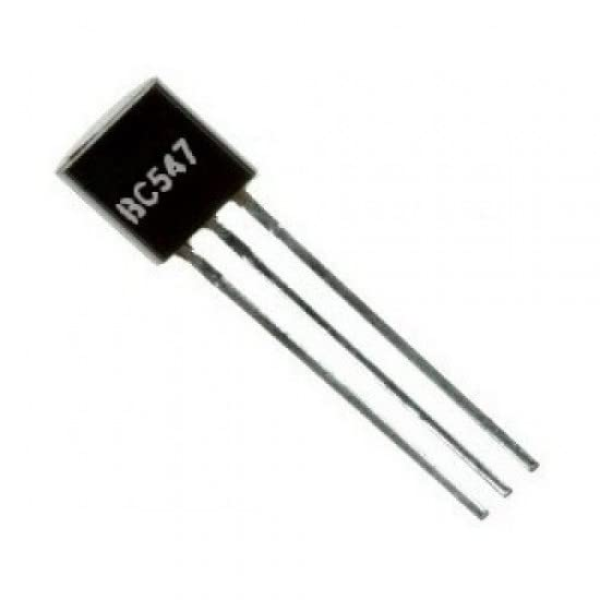

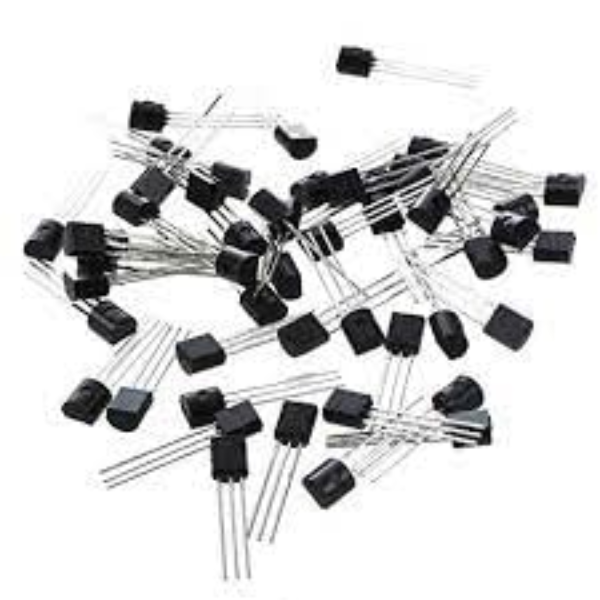

BC547 NPN Transistor TO92 (Pack of 5)

Description:

The BC547 is a versatile general-purpose NPN transistor designed for a wide range of electronic applications. Its high gain and reliable performance make it ideal for amplification, switching, and other circuit functions.

Key Features:

• High gain: Provides excellent amplification capabilities.
• Continuous collector current (Ic): Handles up to 100mA.
• Versatile applications: Suitable for a wide range of electronic projects.
• NPN transistor: Suitable for both switching and amplification applications.
• Low saturation voltage: Minimizes power dissipation in switching applications.

Specifications:

• DC Current Gain (hFE): 800 maximum
• Collector Base Voltage (Vcbo): 50V
• Collector Emitter Voltage (Vceo): 45V
• Emitter Base Voltage (Vbe): 6V
• Base Current (IB): 5mA maximum

Applications:

• Switches
• LED drivers
• Relay drivers
• Darlington pairs
• Amplifiers (audio, signal)
• General-purpose electronics

DATA SHEET AND USECASE

Key Features:

• Package Type: TO-92​
• Emitter-Base Voltage (V_EBO): 6 V​
• Collector-Base Voltage (V_CBO): 50 V​
• Collector-Emitter Voltage (V_CEO): 45 V​
• Transition Frequency (f_T): Up to 300 MHz​
• Continuous Collector Current (I_C): 100 mA​
• DC Current Gain (h_FE): Typically ranges from 110 to 800, depending on the specific variant (A, B, or C)​
