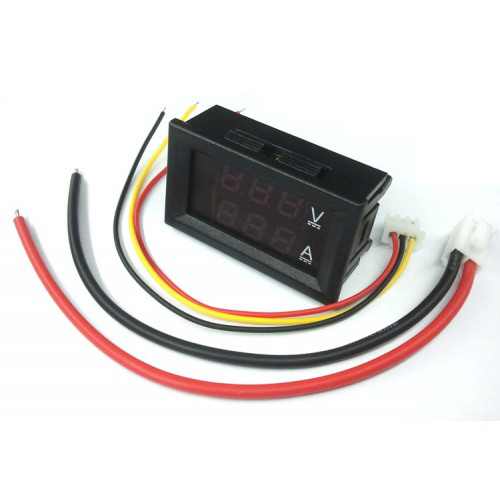

Digital Voltmeter Ammeter DC 100V 10A Dual Led Monitor Panel

The Digital Voltmeter Ammeter DC 100V 10A Dual LED Monitor Panel is a versatile electronic component used to measure both DC voltage and current. It features a dual LED display for clear readings of both values.

Key Features:

• Dual LED Display: Displays both DC voltage and current readings simultaneously.
• DC Voltage Measurement: Measures DC voltage up to 100 volts.
• DC Current Measurement: Measures DC current up to 10 amperes.
• High Accuracy: Provides accurate measurements within specified tolerances.
• Easy-to-Read Display: The LED display is clear and easy to read, even in low-light conditions.
• Compact Size: The small size makes it suitable for integration into various electronic projects and devices.
• Wide Applications: Can be used in various applications, such as battery monitoring, power supply testing, and electronic projects.

DATA SHEET AND USECASE

Key Specifications:

• Operating Voltage: DC 4.5V to 30V
• Voltage Measurement Range: DC 0V to 100V
• Current Measurement Range: 0A to 10A
• Voltage Resolution: 0.1V
• Current Resolution: 0.01A
• Display: Dual 0.28" LED digital tubes
• Dimensions: 48mm x 29mm x 21mm
• Mounting Cutout: 45.5mm x 26.5mm
• Operating Temperature: -10°C to 65°C
• Operating Humidity: 10% to 80% (non-condensing)
• Accuracy: ±1% (±1 digit)
