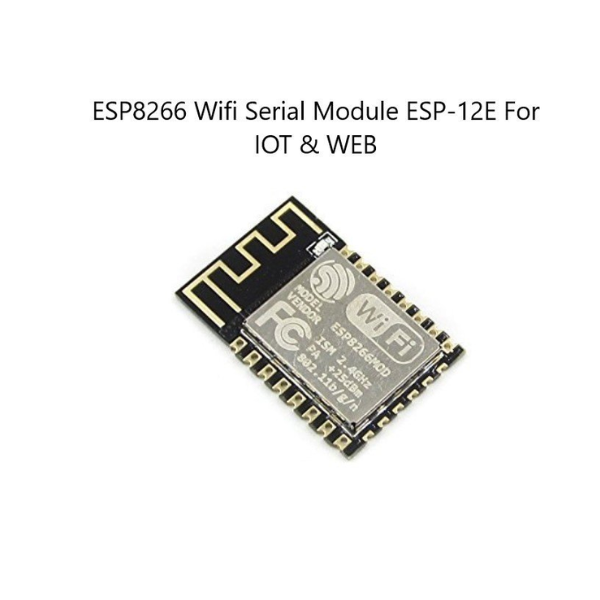

Unleash the Power of Wi-Fi in Your Projects with the ESP-12E
Description:
The ESP-12E is a budget-friendly Wi-Fi module that empowers you to add wireless connectivity to your electronics projects.
Key Features for Makers:
- Built-in Wi-Fi : Connect to your Wi-Fi network for internet access and remote control of your creations.
- Flexible Functionality: Host applications directly on the module or offload Wi-Fi tasks from a separate processor.
- Arduino Friendly: Get started quickly with familiar Arduino libraries (requires additional firmware).
- Powerful Processor: Built-in 80 MHz 32-bit processor for custom applications and even simple web serving.
- Large and Active Community: Benefit from a vast community of developers for support and inspiration.
Applications :
- Home automation projects
- Internet of Things (IoT) devices
- Industrial control applications
- Data logging and remote monitoring systems
DATA SHEET AND USECASE
Key Specification:
Processor: Tensilica L106, 32-bit RISC, 80 MHz (can be overclocked to 160 MHz)
Wi-Fi Standards: 802.11 b/g/n (2.4 GHz)
Operating Voltage: 3.0V - 3.6V (Recommended 3.3V)
GPIO Pins: 11 (Supports PWM, I2C, SPI, UART, ADC)
Flash Memory: 4MB
Power Consumption: Low power (Deep Sleep Mode ~10µA)
Security: WPA/WPA2, WEP encryption

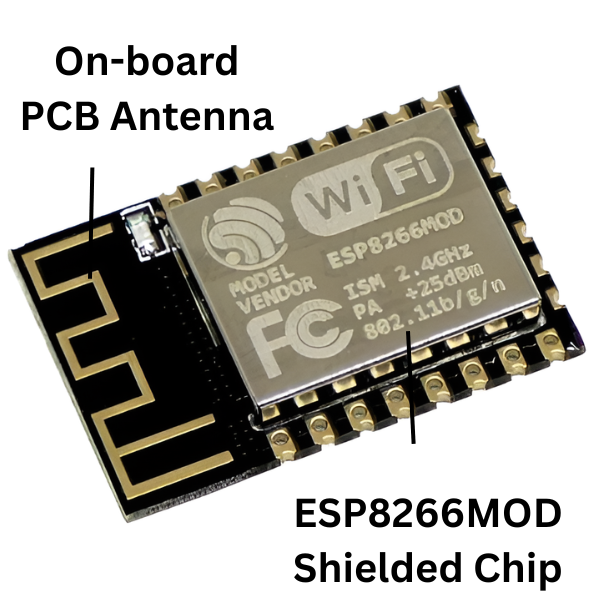

Antenna: PCB antenna onboard
Network Modes: Supports Station (STA), Access Point (AP), and both simultaneously
