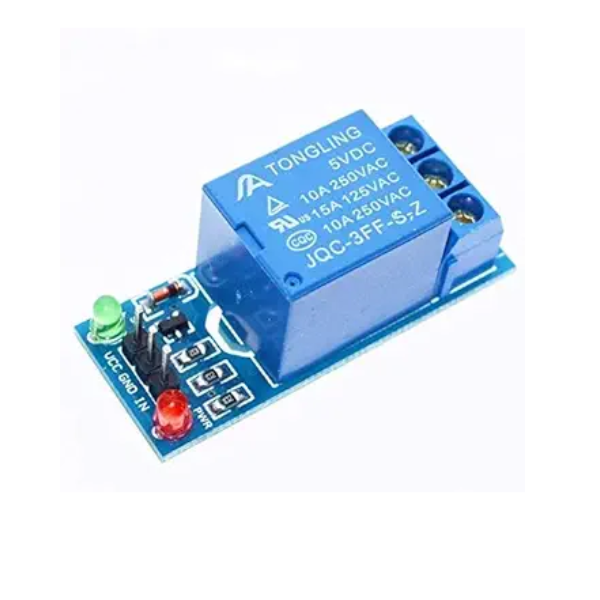

Relay Module 5V Single Channel

(0 Reviews)
In stock
Estimate Shipping Time: 4 Days

Category: Relay Module

SKU: 2183


MRP Price:
₹99 57% OFF
Discounted Price:
₹44 (Incl.GST)

Quantity:
(50 available)

Weight:
50 g

Total Price:
Bulk Order
Share:
Sold By
DSMElectro Solutions Private Limited
(1249 customer reviews)
Description :

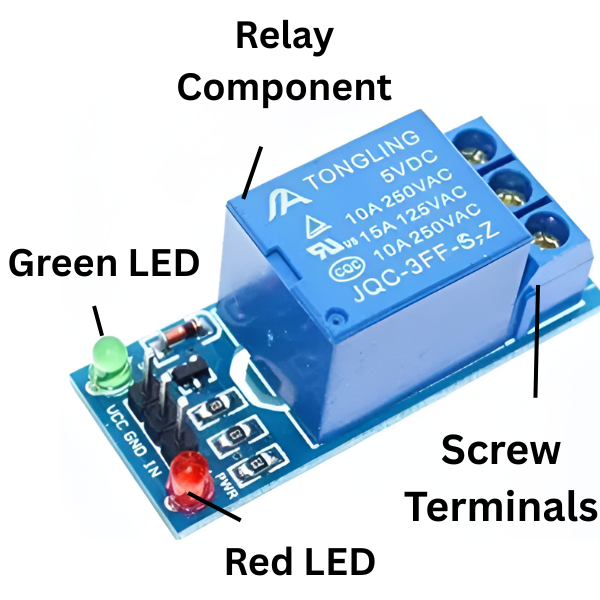

Control high-current loads with precision using our 1-Channel 5V 10A Relay Control Board Module. This versatile module is ideal for a variety of applications, including home automation, industrial control, and robotics.

Key Features:
  • Reliable Isolation: Optocoupler ensures safety and prevents interference.
  • Versatile Control: Control both AC and DC loads up to 10A.
  • Easy Installation: Fixed screw holes for simple mounting.
  • Clear Status Indicators: Power and control indicator lamps.
  • High-Quality Components: Triode drive, pull-down circuit, and high-impedance controller pin.
Applications:
  • Home Automation: Control appliances and lighting.
  • Industrial Control: Automate machinery and processes.
  • Robotics: Power and control motors and actuators.
Specifications:
  • Relay Rating: 10A@250VAC / 10A@30VDC
  • Input Signal: High-level or low-level trigger
  • Status Indicators: Power and control indicator lamps
  • Mounting Holes: 4 fixed screw holes (3.1mm diameter)
  • Isolation: Optocoupler for enhanced safety
Package Includes:
1 x 1-Channel 5V 10A Relay Control Board Module (with optocoupler

DATA SHEET AND USECASE
Key Specifications:

  • Operating Voltage: 5V DC
  • Trigger Voltage: 3.3V - 5V (suitable for both Arduino & Raspberry Pi)
  • Relay Type: SPDT (Single Pole Double Throw)
  • Max Switching Voltage: 250V AC / 30V DC
  • Max Switching Current: 10A
  • Optocoupler Isolation: Yes (in most models)
  • Indicator LED: Yes (for Power and Relay Status)
