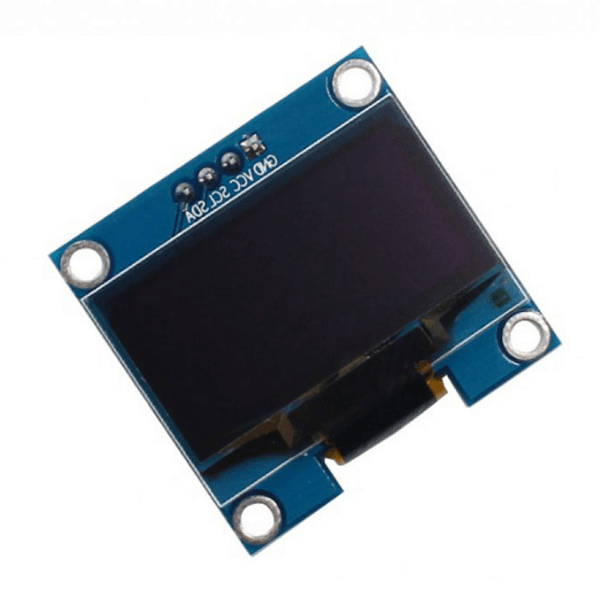

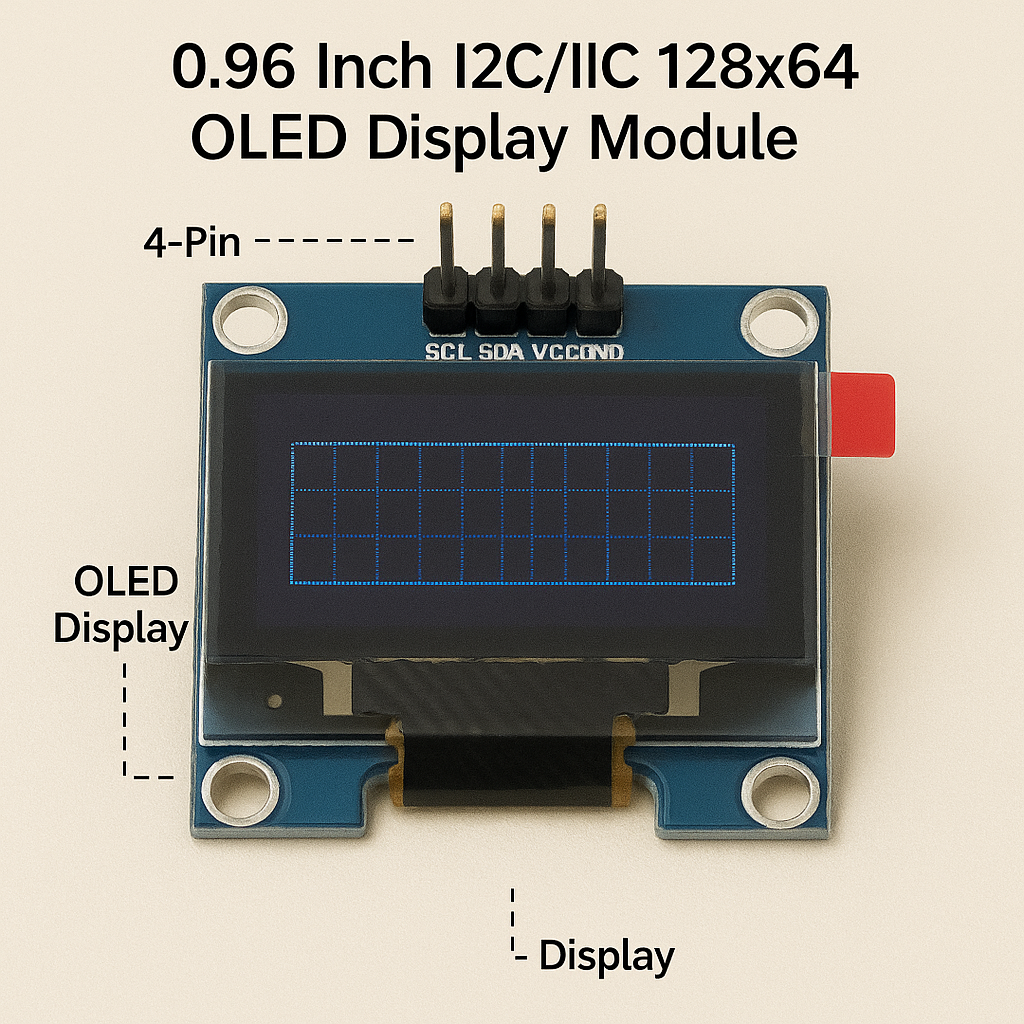

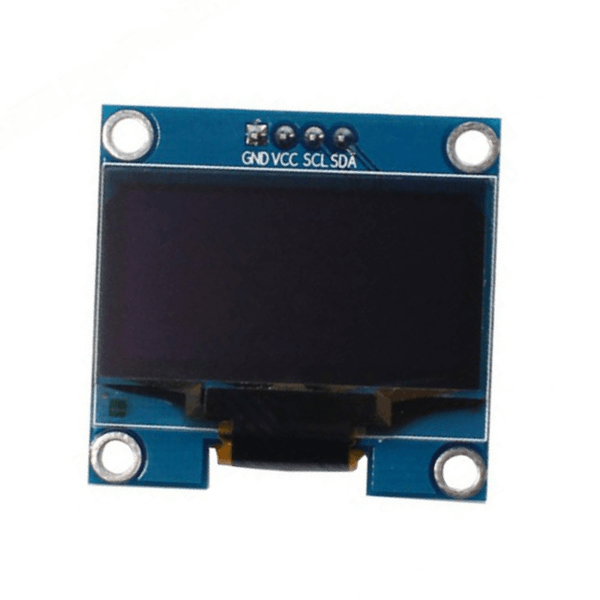

0.96 Inch I2C/IIC 128x64 OLED Display Module 4 Pin

The 0.96 Inch I2C/IIC 128x64 OLED Display Module 4 Pin is a compact and high-resolution display that provides a clear and vibrant visual output. It features a 128x64 pixel resolution and a 4-pin I2C interface for easy communication with microcontrollers and other devices.

Key Features:

• 128x64 Pixel Resolution: Offers high-quality images and text with sharp details.
• OLED Technology: Provides excellent contrast, wide viewing angles, and low power consumption.
• I2C Interface: Communicates with microcontrollers and other devices using the I2C protocol.
• 4-Pin Connection: Simple and easy to connect with a 4-pin header.
• Built-in SSD1306 Controller: Handles display functions and reduces the workload on the microcontroller.
• Wide Operating Voltage: Compatible with various power supply voltages.

Applications:

• Wearable Devices: Displaying information on smartwatches, fitness trackers, and other wearable devices.
• IoT Devices: Showing data from sensors and other connected devices.
• Robotics: Providing visual feedback for robots and autonomous systems.
• Gaming Devices: Displaying game graphics and information.
• DIY Projects: Incorporating a small display into custom-built devices.

DATA SHEET AND USECASE

Using the OLED Display Module:

To interface this OLED display with an Arduino, follow these steps:

1. Wiring Connections:

   • GND: Connect to Arduino's GND.
   • VCC: Connect to Arduino's 3.3V or 5V (ensure compatibility with your specific module).
   • SCL: Connect to Arduino's A5 (on Uno) or the dedicated SCL pin.
   • SDA: Connect to Arduino's A4 (on Uno) or the dedicated SDA pin.
