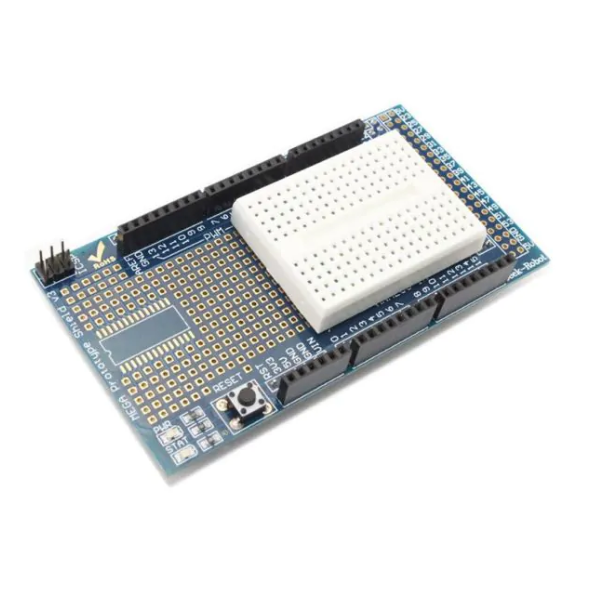

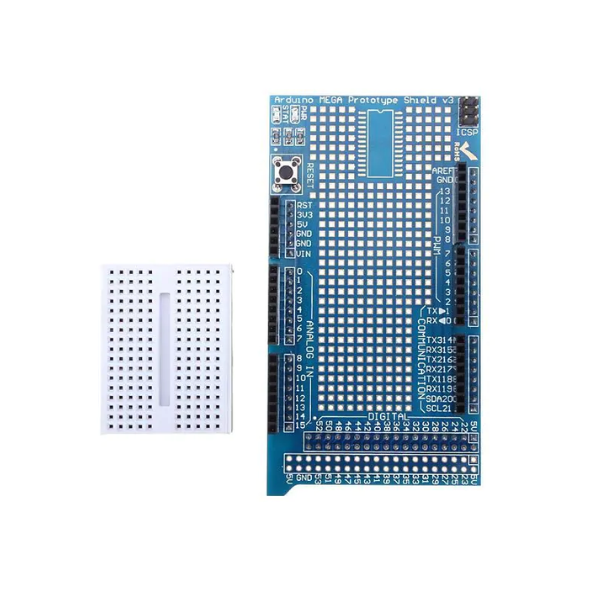

Arduino Mega Protoshield prototype expansion board+ Mini Breadboard

The Arduino Mega Protoshield Prototype Expansion Board + Mini Breadboard is a versatile and user-friendly development platform designed to expand the capabilities of your Arduino Mega microcontroller. It combines the functionality of a protoshield with a built-in mini breadboard, providing a convenient and flexible workspace for prototyping and experimenting with various electronic components.

Key Features:

• Arduino Mega Compatibility: Specifically designed to be compatible with the Arduino Mega microcontroller.
• Protoshield Functionality: Offers a large prototyping area with pre-routed traces for easy connection of components.
• Built-in Mini Breadboard: Provides a convenient workspace for experimenting with different components.
• Power Supply: Provides power regulation and distribution for your project.
• Grove Connectors: Compatible with Grove modules for easy expansion and customization.
• Jumper Pins: Allows you to configure the board's functionality and connect different components.
• Compact Design: Small and lightweight for easy integration into your projects.

Applications:

• Robotics: Controlling motors, sensors, and actuators.
• IoT Projects: Connecting devices to the internet for remote monitoring and control.
• Educational Purposes: Learning about electronics and programming.
• Hobby Projects: Creating custom gadgets and devices.

DATA SHEET AND USECASE

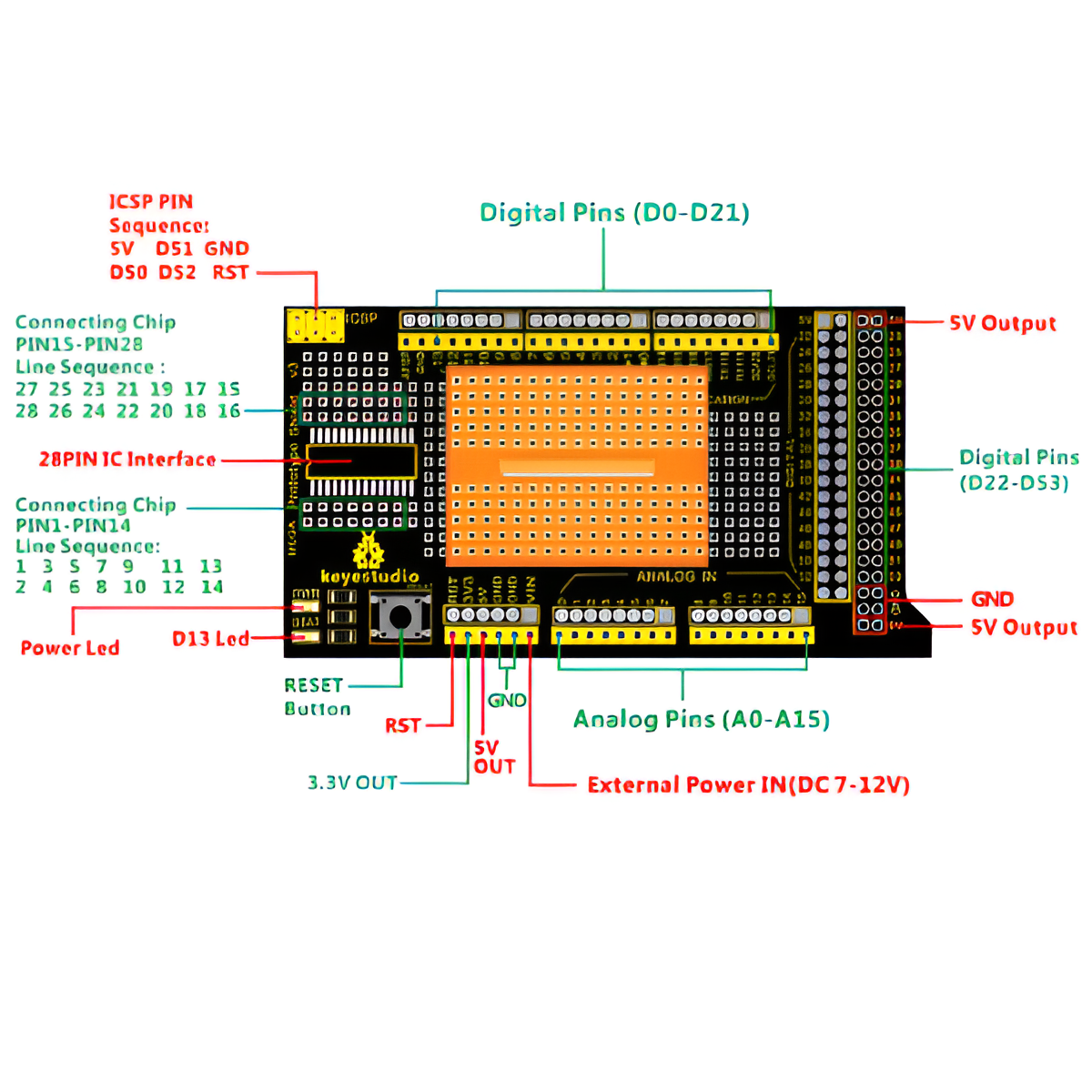

Key Specification

• Prototyping Area: A spacious area with multiple through-hole pads (100 mils pitch) for soldering components and creating custom circuits.

• Power Rails: Integrated power bus rows connected to the Arduino's standard 5V and GND pins, facilitating efficient power distribution to your components.

• Stackable Design: The shield is designed to stack on top of the Arduino Mega, maintaining access to all I/O pins for seamless integration with other shields.

• Additional Components: Some versions include extra features like general-use LEDs and push buttons for quick testing and debugging
