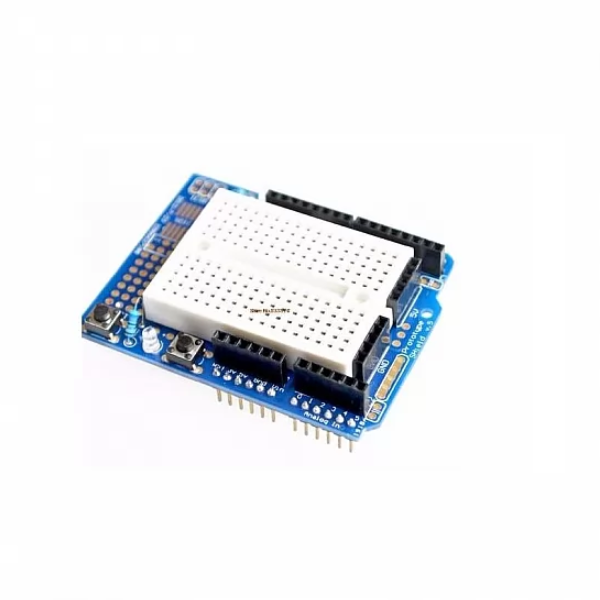

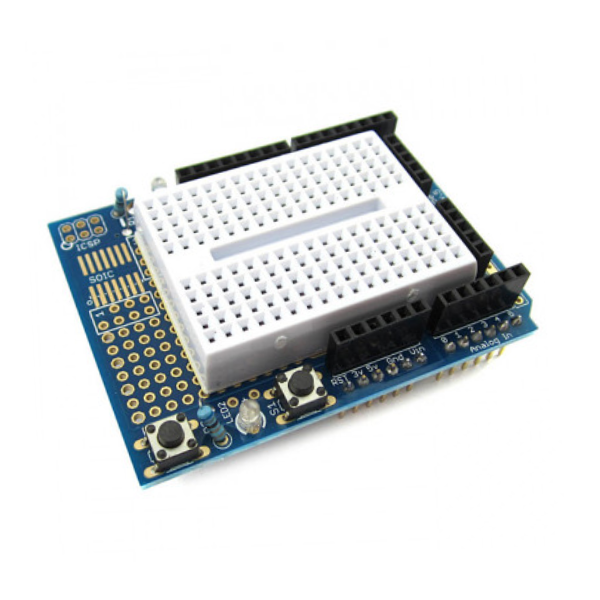

Arduino Uno Protoshield + Mini Breadboard

The Arduino Uno Protoshield + Mini Breadboard is a versatile and user-friendly development platform designed to expand the capabilities of your Arduino Uno microcontroller. It combines the functionality of a protoshield with a built-in mini breadboard, providing a convenient and flexible workspace for prototyping and experimenting with various electronic components.

Key Features:

• Arduino Uno Compatibility: Specifically designed to be compatible with the Arduino Uno microcontroller.
• Protoshield Functionality: Offers a large prototyping area with pre-routed traces for easy connection of components.

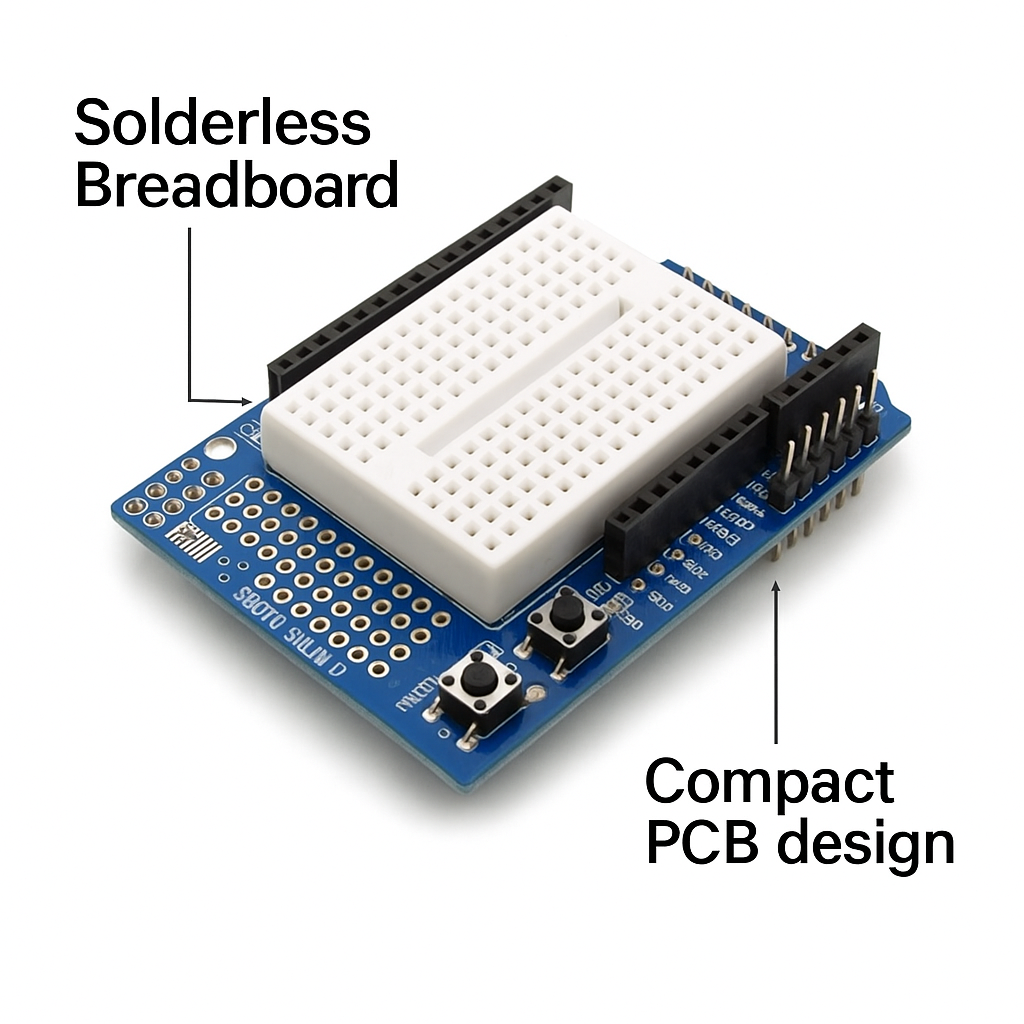

• Built-in Mini Breadboard: Provides a convenient workspace for experimenting with different components.
• Power Supply: Provides power regulation and distribution for your project.
• Grove Connectors: Compatible with Grove modules for easy expansion and customization.
• Jumper Pins: Allows you to configure the board's functionality and connect different components.
• Compact Design: Small and lightweight for easy integration into your projects.

Applications:

• Robotics: Controlling motors, sensors, and actuators.
• IoT Projects: Connecting devices to the internet for remote monitoring and control.
• Educational Purposes: Learning about electronics and programming.
• Hobby Projects: Creating custom gadgets and devices.

DATA SHEET AND USECASE

Key Specification:

• Prototyping Area: A through-hole prototyping area that allows for the soldering of components to create custom circuits.

• Power Lines: Two power lines (IOREF and GND) run alongside the prototyping area, providing easy access to power for your components.

• SPI Signal Pads: Breakout pads for SPI signals are available, accommodating boards that have SPI only on the ICSP header.

• SMD Footprint: A 24-pin SMD footprint (50 mils pitch) is included for surface-mount components.

• Additional Features: Footprints for two LEDs with corresponding resistors, an ICSP connector footprint, and a reset button are provided.
