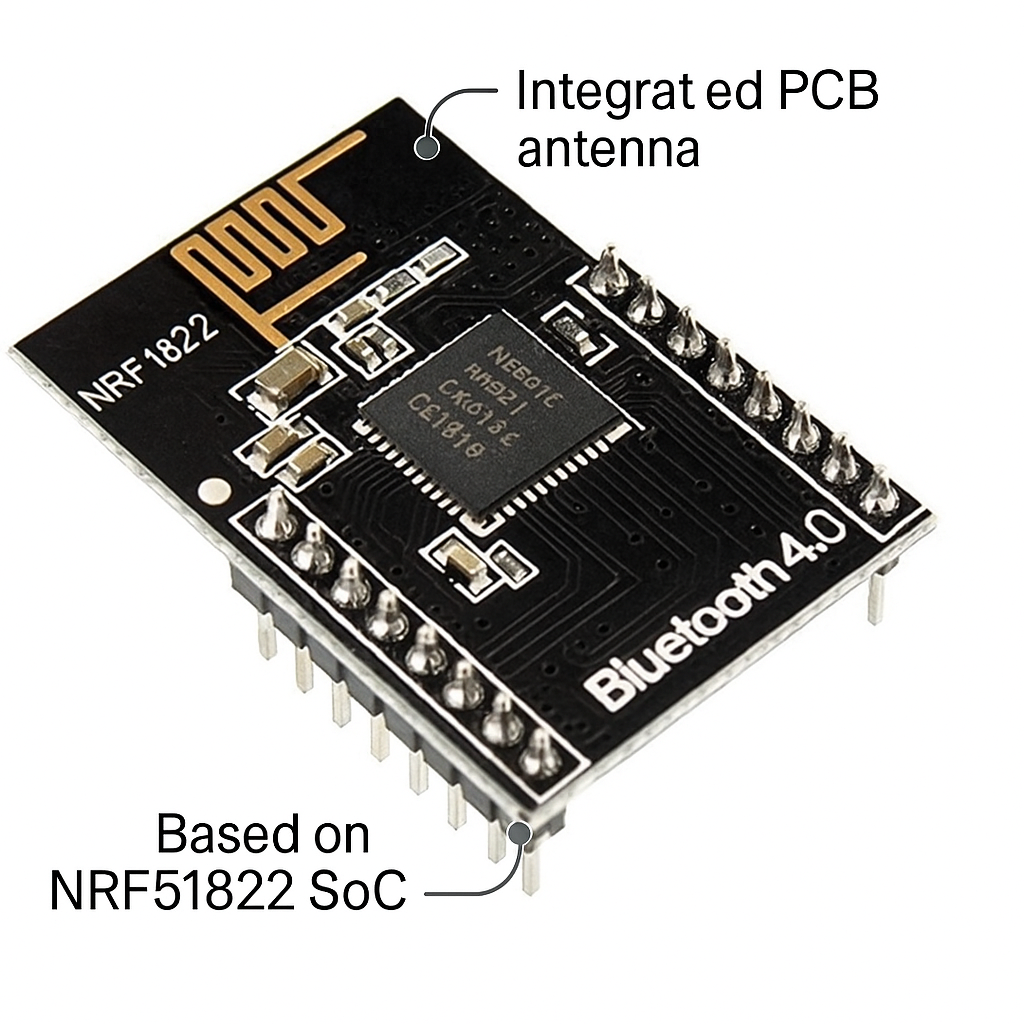

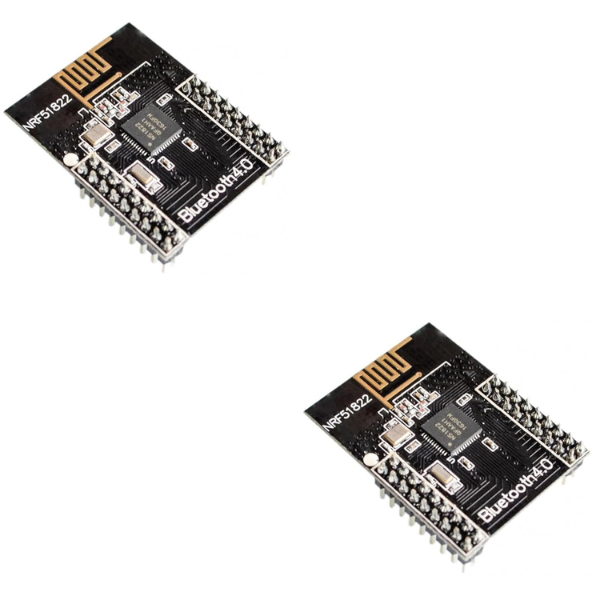

Core51822: Your Powerful Bluetooth 4.0 Wireless Module
Introducing the Core51822, a versatile and low-power wireless module based on the nRF51822 SoC. This module is ideal for a wide range of applications, from wearable devices to industrial control.
Key Features:
- Bluetooth 4.0 Compatibility: Ensures reliable and efficient wireless communication.
- Low Power Consumption: Designed for ultra-low power applications.
- Compact Size: Small form factor for easy integration into various projects.
- Versatile Functionality: Supports multiple communication protocols and peripherals.
- Flexible Power Supply: Operates from 1.8V to 3.6V.
- Robust Construction: Withstands harsh operating environments (-40°C to 85°C).
Applications:
- Wearable devices
- Bluetooth smart applications
- Mobile phone accessories
- RFID labels
- Smart home appliances
- Industrial control
- Data acquisition systems
- Unlock the potential of your wireless projects with the Core51822 module.
DATA SHEET AND USECASE
- Processor: 32-bit ARM® Cortex™-M0 CPU
- Memory Options: 256 KB or 128 KB flash memory; 32 KB or 16 KB RAM
- Radio Frequency: 2.4 GHz transceiver supporting BLE and proprietary protocols
- Sensitivity: 93 dBm in BLE mode
- Data Rates: Supports 250 kbps, 1 Mbps, and 2 Mbps
- Transmit Power: Configurable from -20 dBm to +4 dBm in 4 dB steps
- Power Consumption: 13 mA peak RX, 10.5 mA peak TX at 0 dBm

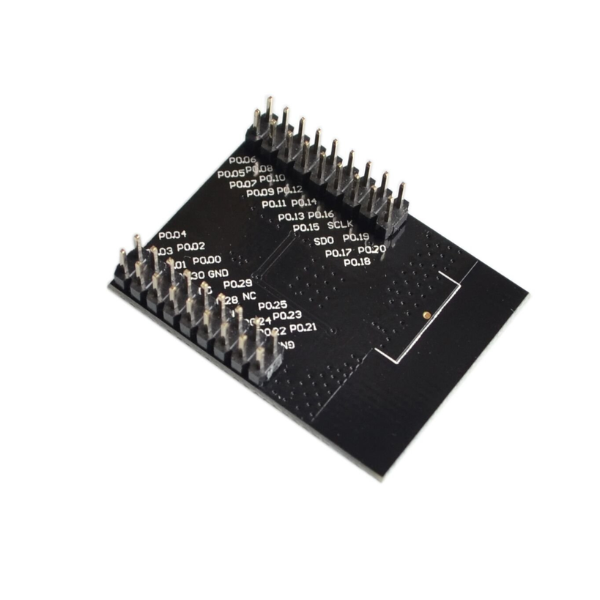

- Peripheral Interfaces: SPI, UART, I2C, ADC, and GPIOs
- Package Options: 48-pin QFN (6x6 mm) and various WLCSP packages
Applications:
The nRF51822 is ideal for various applications, including:
- Wearable Technology: Fitness trackers and health monitoring devices
- Smart Home Devices: Home automation systems and appliances
- Wireless Peripherals: Keyboards, mice, and remote controls
- Beacons: Proximity and location-based services
- Industrial Automation: Wireless sensors and control systems.
