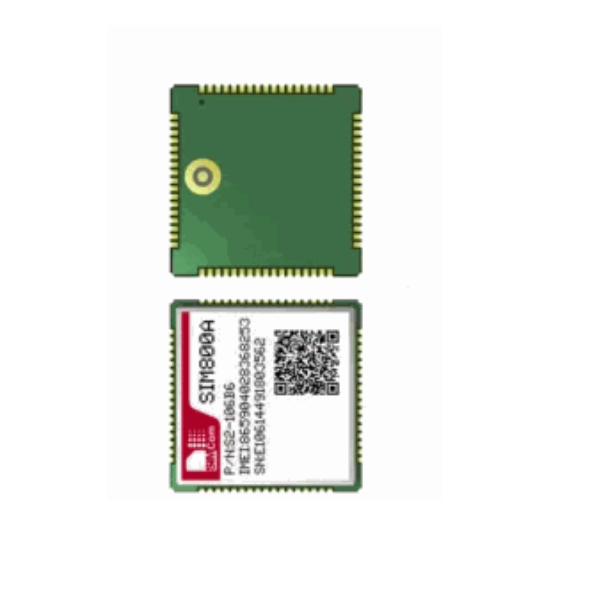

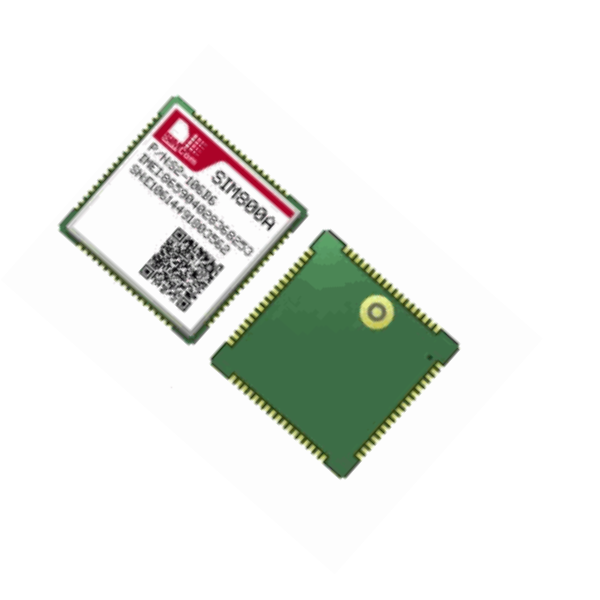

SIM800A Chip Module

SIM800A GSM/GPRS Module: Your Versatile Connectivity Solution

Introducing the SIM800A, a powerful and compact GSM/GPRS module that provides reliable wireless communication capabilities. With its versatile features and easy integration, the SIM800A is ideal for a wide range of applications.

Key Features:

• Dual-Band GSM/GPRS: Supports both 900/1800MHz frequencies for global connectivity.
• Versatile Interfaces: Includes UART, I2C, USB, audio, SIM card, GPIO, PWM, ADC, and antenna interfaces.
• Low Power Consumption: Optimized for efficient power usage in battery-powered devices.
• Easy Integration: Compact size and simple AT command control for seamless integration into your projects.
• Robust Performance: Adheres to GSM phase 2/2+ standards for reliable communication.

Applications:

• IoT devices
• Wearable technology
• M2M communication
• Remote monitoring
• And more!

Experience the power of the SIM800A GSM/GPRS module.

Key Features:

• Frequency Bands: Supports EGSM 900MHz and DCS 1800MHz.
• GPRS Connectivity: Offers multi-slot class 12/10 GPRS, supporting coding schemes CS-1, CS-2, CS-3, and CS-4.
• Compact Size: Measures 24mm x 24mm x 3mm, allowing integration into space-constrained designs.
• Interfaces:
• One full-function UART port.
• USB port for debugging and firmware updates.
• Audio channels, including a microphone input and speaker output.
• SIM card interface compliant with 1.8V and 3.0V standards.
• Power Consumption: Designed for low power consumption, making it ideal for battery-powered applications.
