NRF51822 evaluation kit for Bluetooth

Description:

The kit typically includes:

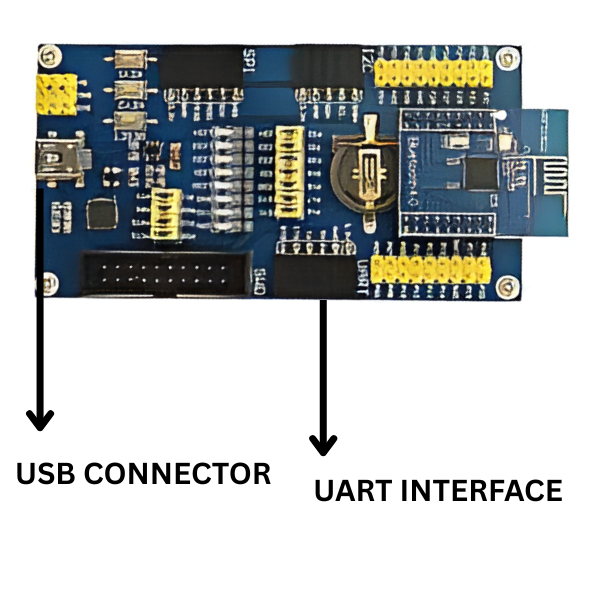

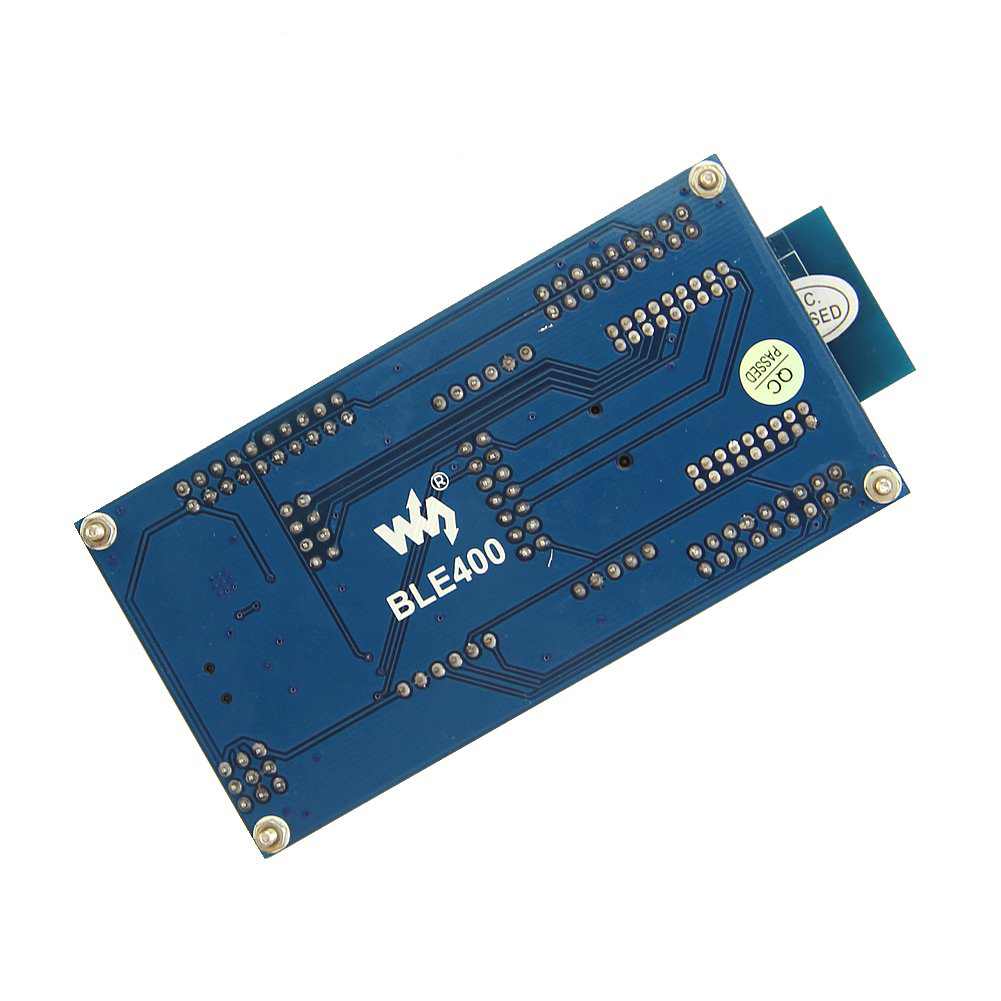

• nRF51822 Development Board: This is the core of the kit, featuring the nRF51822 SoC, along with essential components like memory, clock circuits, and various peripherals.
• On-board Debugger/Programmer: This allows for programming and debugging the nRF51822 using a computer.
• USB Interface: Enables communication with the development board and power supply.
• External Connectors: Provide access to the nRF51822's GPIOs (General Purpose Input/Output) for connecting sensors, actuators, and other peripherals.
• Documentation and Software: Includes user manuals, software development kits (SDKs), and example projects to help you get started.

Key Features:

• Bluetooth Low Energy (BLE) 4.0: Supports all core BLE features, including advertising, scanning, data transfer, and security.
• 2.4 GHz Radio: Provides reliable wireless communication over a wide range.
• Low Power Consumption: Designed for battery-powered applications with features like ultra-low power modes.
• Flexible Peripherals: Includes a variety of peripherals like GPIOs, timers, ADC, SPI, I2C, and UART.
• On-chip Flash and RAM: Provides sufficient memory for most BLE applications.
• Easy to Use: The kit is designed to be user-friendly, with clear documentation and a wide range of available resources.

Applications:

• Wearables: Smartwatches, fitness trackers, health monitors
• Internet of Things (IoT) Devices: Smart home devices, environmental sensors, industrial automation
• Proximity and Location-Based Services: Beacons, asset tracking, indoor positioning
• Medical Devices: Patient monitoring, remote controls
• Industrial Automation: Wireless sensor networks, machine control

DATA SHEET AND USECASE

Key Features:

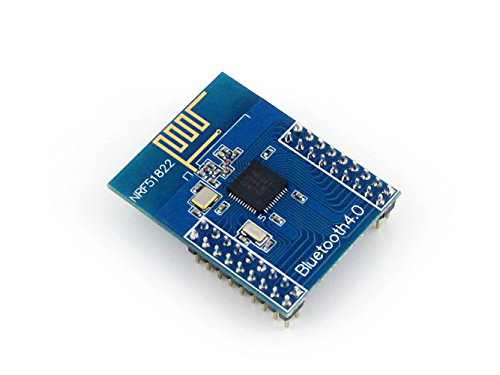

• nRF51822 SoC Integration: The kit features the nRF51822 SoC, which combines a 32-bit ARM® Cortex™-M0 CPU with a 2.4 GHz transceiver, supporting BLE and proprietary protocols.

• Comprehensive I/O Access: All General-Purpose Input/Output (GPIO) pins are accessible via pin headers, facilitating easy connection to external components and peripherals.

• Onboard Debugging Tools: Equipped with a Segger J-Link debugger, the kit enables seamless programming and debugging of applications.

• Power Options: Includes a coin-cell battery holder for portable applications and pins for external power supply and current measurements, allowing developers to evaluate power consumption accurately.

• User Interface Components: Features two buttons and two LEDs for user interaction and status indication, enhancing the development and testing experience.
