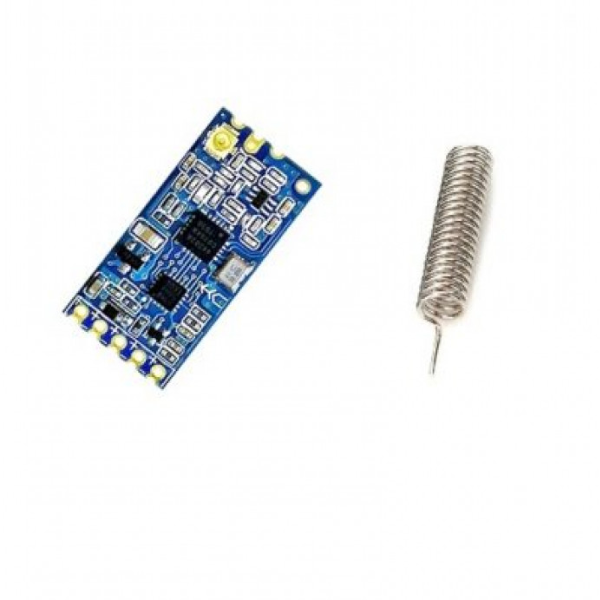

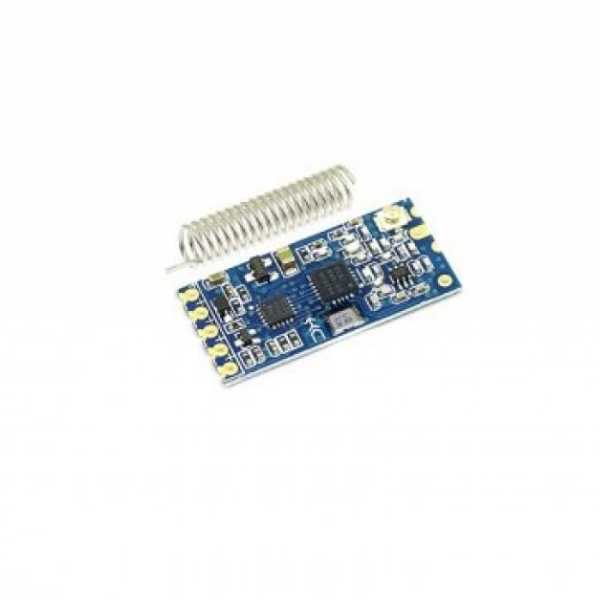

Wireless Bluetooth Module HC-12 SI4463 433Mhz 1Km Range

HC-12 Wireless Module: Your Reliable Communication Solution

The HC-12 wireless module is a versatile and efficient tool for long-range wireless data transmission. With its powerful features and easy-to-use interface, it's perfect for a wide range of applications.

Key Features:

• Long-Range Communication: Transmit and receive data up to 1000 meters in open environments.
• Flexible Frequency: Operate on frequencies between 433.4 MHz and 473.0 MHz.
• Multiple Channels: Choose from 100 available communication channels.
• High Power Output: Transmit data with up to 20dBm of power.
• Sensitive Reception: Receive signals with a sensitivity of -116dBm at 5000bps baud rate.
• Compact Design: Small form factor for easy integration into your projects.
• Versatile Antenna Options: Use either a spring antenna or external coaxial antenna.
• Simple Integration: Easily interface with your microcontroller using a simple TTL 2-wire serial interface.
• Low Power Consumption: Efficient power management for long battery life.
• Robust Performance: Adheres to various regulatory standards, including FCC, ETSI, and ARIB.

Applications:

• Home automation
• Industrial control
• Remote sensing
• Smart agriculture
• And more!

Experience reliable wireless communication with the HC-12 module.

DATA SHEET AND USECASE

Key Features:

• Frequency Range: 433.4–473.0 MHz with 100 selectable channels (400 kHz channel spacing).
• Communication Range: Up to 1,000 meters in open areas with the default antenna.
• Modulation: GFSK (Gaussian Frequency Shift Keying).
• Transmit Power: Adjustable up to 100 mW (20 dBm).
• Receiver Sensitivity: Up to -116 dBm at 5,000 bps baud rate.
• Serial Interface: UART with configurable baud rates from 1,200 to 115,200 bps.
• Operating Voltage: 3.2V to 5.5V DC.

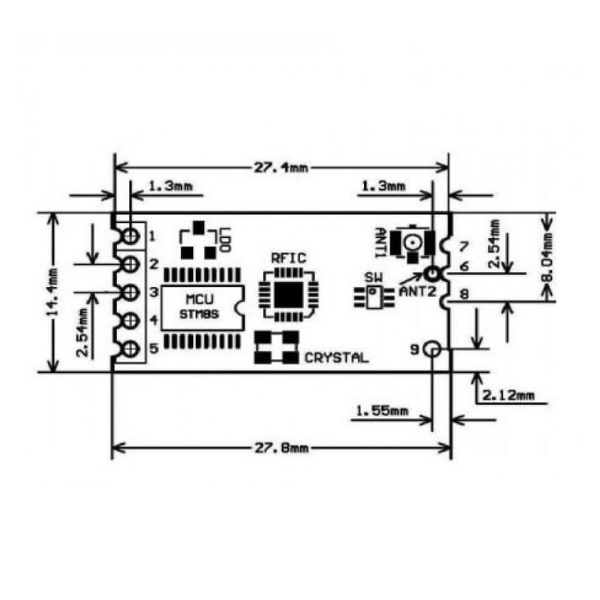

• Dimensions: 27.4 mm x 13.2 mm x 4 mm (including antenna connector).

Applications:

• Remote Monitoring: Collecting data from sensors in agriculture or environmental monitoring.
• Home Automation: Controlling devices like lights, thermostats, and security systems wirelessly.
• Robotics: Enabling communication between robots or between a robot and a control station.
• Wireless Data Acquisition: Gathering data from remote instruments or meters.
• Industrial Control: Managing machinery or processes without the need for wired connections.
