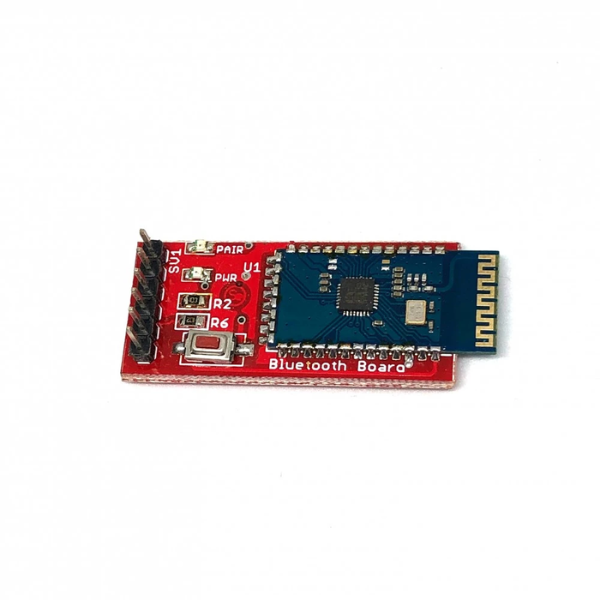

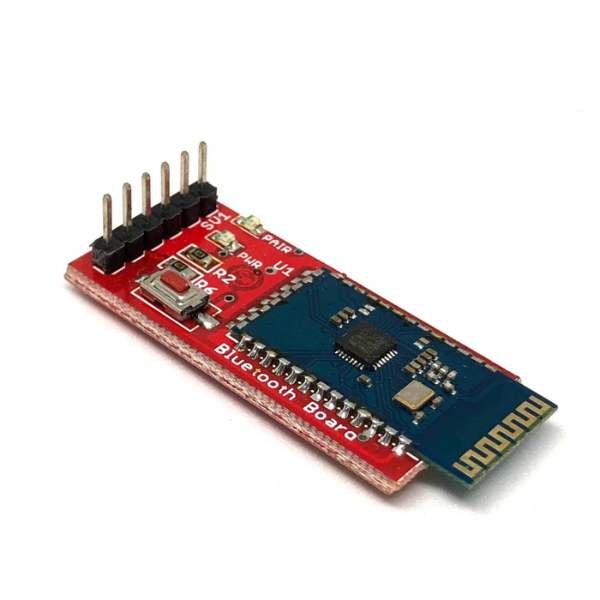

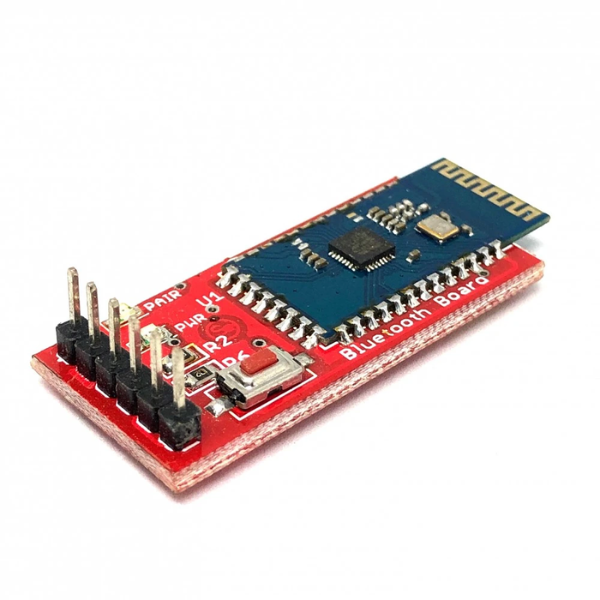

Bluetooth Module HC06 TTL

The Bluetooth Module HC06 TTL is a popular choice for wireless communication between devices. It allows for easy integration of Bluetooth connectivity into various projects, from hobby electronics to industrial applications.

Key Features:

• Bluetooth 2.0 Class 2: Provides a reliable and efficient connection with a range of up to 10 meters.
• TTL (Transistor-Transistor Logic) Interface: Compatible with microcontrollers and other digital devices.
• Low Power Consumption: Suitable for battery-powered applications.
• Master/Slave Mode: Can operate as either a master or slave device, allowing for flexible communication scenarios.
• AT Command Set: Configured using simple AT commands, making it easy to control and customize.

Common Applications:

• Wireless control: Remotely control devices like robots, lights, or appliances.
• Data transmission: Send and receive data between devices, such as sensor readings or GPS coordinates.
• Interfacing with smartphones: Connect to smartphones or tablets for app-based control.
• IoT (Internet of Things): Integrate devices into the IoT ecosystem for wireless connectivity.

Basic Usage:

1. Power Supply: Connect the HC06 to a 3.3V or 5V power supply.
2. Serial Connection: Connect the HC06's TX pin to the RX pin of your microcontroller or other device, and vice versa.
3. Configuration: Use AT commands to configure the module's parameters, such as baud rate, Bluetooth name, and pairing code.
4. Communication: Send and receive data using the serial interface.

Additional Considerations:

• Antenna: The HC06 typically comes with an internal antenna, but an external antenna can be used for improved range and performance.
• Pairing: Ensure proper pairing between the HC06 and the connecting device.
• Security: Consider implementing security measures, such as encryption, to protect data transmission.
• Compatibility: Verify compatibility with the specific microcontroller or device you are using.
