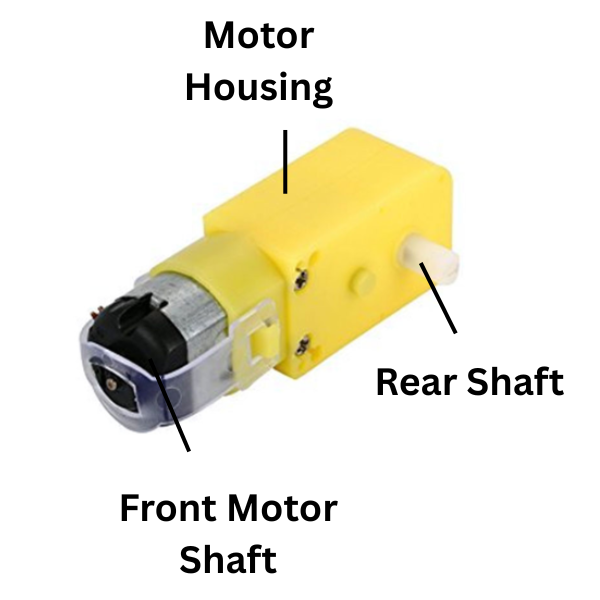

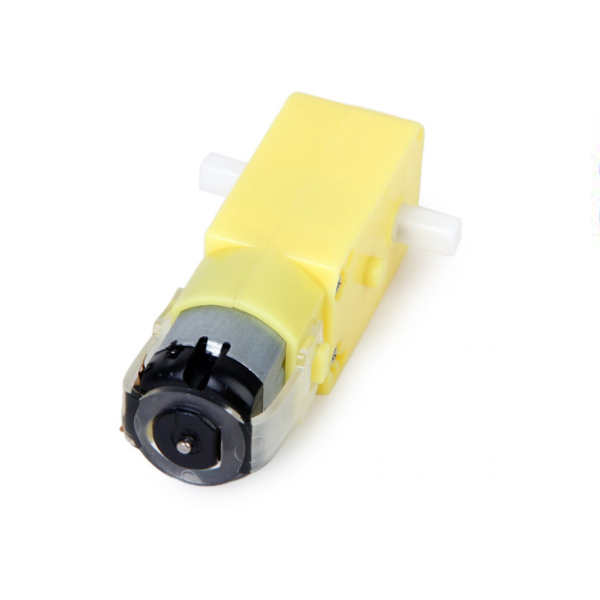

BO Motor Dual Saft 100 RPM Straight

Description:

Introducing the 100 RPM Dual Shaft BO Motor, a versatile and cost-effective option for powering your small and medium-sized robots. This motor excels at delivering impressive torque and RPM even at lower operating voltages, making it an ideal choice for various applications. As an affordable alternative to metal gear DC motors, this 100 RPM BO Motor offers excellent performance and durability. It operates smoothly on 3-12V and is perfect for DIY enthusiasts and robotics hobbyists.

Key Features:

• Powerful torque and RPM at lower voltages
• Compact design with small shafts and matching wheels
• Easy in-circuit placement with mounting holes
• Lightweight construction
• Suitable for plastic gear motors
• Cost-effective alternative to metal gear motors
• Ideal for DIY and robotics projects

Specifications:

• Shaft length: 7 mm
• Motor Design: Straight Dual Shaft
• Shaft Diameter: 5.5 mm
• Size: 55 x 48 x 23 mm
• Operating Voltage: 3 to 12V
• Current (without loading): 40-180mA
• RPM: 100 rpm
• Output Torque: 0.35 kg cm

Benefits of Plastic Gear Motors:

• Cost-effectiveness
• Lightweight and low inertia
• Uniformity and consistency
• Shock and vibration absorption
• Low lubrication requirements
• Corrosion resistance
• Quiet operation
• Less critical tolerances
• Compatibility with plastic housings

Applications:

• Mobile robot cars
• DIY robotics projects
• Educational and hobbyist applications

DATA SHEET AND USECASE

Key Specifications:

• Operating Voltage: 3V to 12V DC
• No-Load Speed: Approximately 100 RPM
• No-Load Current: 40-180 mA
• Stall Torque: Up to 1.5 kg-cm (depending on voltage)
• Shaft Type: Dual Shaft
• Shaft Diameter: 5.5 mm
• Shaft Length: 7 mm
• Dimensions: Approximately 55 x 48 x 23 mm
• Weight: Around 30 grams
