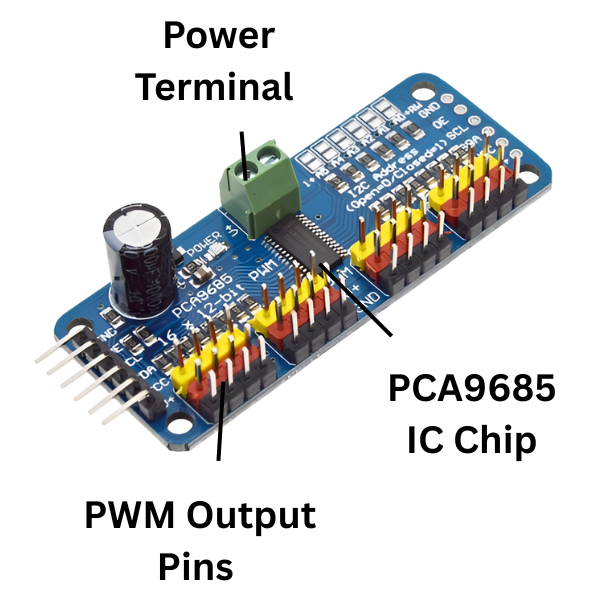

Power Your Projects with the 16 Channel 12-Bit PWM Servo Controller Motor Driver

Take control of up to 16 servos or motors with this versatile and powerful controller.

Key Features:

Precision Control: Achieve precise movements with 12-bit resolution for each output.
Flexible Configuration: Customize PWM frequency and output type to suit your needs.
Efficient Operation: Quickly enable or disable all outputs with the output enable pin.
User-Friendly Design: Convenient terminal block and reverse polarity protection.
Reliable Performance: The green power-good LED provides visual feedback on the controller's status.

Applications:

Robotics: Build complex robots with intricate movements.
RC Models: Control servos in remote-controlled vehicles, aircraft, and boats.
Automation: Automate tasks with precise motor control.
DIY Projects: Create custom projects involving servo or motor control.

Experience the power and versatility of this 16-channel PWM controller.

DATA SHEET AND USECASE

Key Features:

16 Independent PWM Channels: Allows simultaneous control of up to 16 devices, such as servos or LEDs.
12-bit Resolution: Provides 4096 discrete steps for precise control over the duty cycle.
Adjustable Frequency: PWM frequency can be adjusted from 24 Hz to 1526 Hz to suit various applications.
I²C Interface: Communicates via the I²C protocol, using only two pins (SDA and SCL), which conserves microcontroller I/O resources.
Stackable Design: Up to 62 modules can be connected on the same I²C bus, enabling control of up to 992 PWM outputs.
