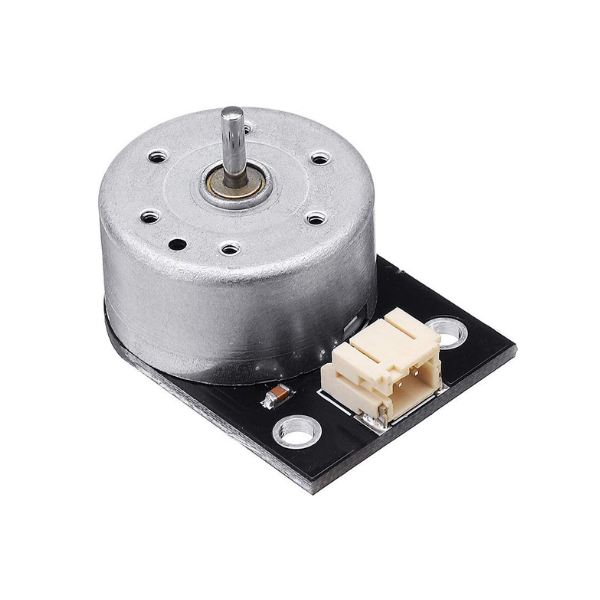

Switch Motor Control Module With Fan

Enhance Your Projects with the Versatile Switch Motor Control Module

Introducing a convenient and user-friendly solution for controlling fan motors.

Key Features:

• Safe and Soft: The soft wings minimize the risk of injury, ensuring a safe user experience.
• Secure Connection: The module seamlessly integrates with your motor, providing a reliable connection.
• Easy Control: The positive and negative switch buttons allow for simple clockwise or counterclockwise operation.
• Compact Design: The small size (42 x 23mm) makes it easy to incorporate into various projects.

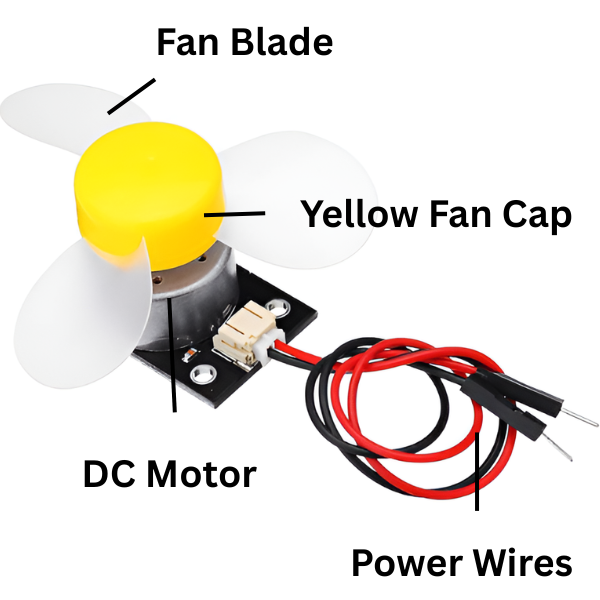

• Durable Materials: The soft silicone fan and plastic handle ensure long-lasting performance.
• Efficient Power: Powered by a 5V DC supply with a current draw of less than 300mA.

Applications:

• DIY Projects: Add fan functionality to your creations.
• Electronic Devices: Incorporate cooling fans into your designs.
• Industrial Equipment: Provide ventilation in enclosed spaces.

Package Includes:

• 1 x Plastic Handle (Red/Black)
• 30 x Screwdriver Bits

Elevate your projects with the Switch Motor Control Module.

DATA SHEET AND USECASE

One such product is the Brushed DC Motor Control Module (MDL-BDC) by Texas Instruments. This module offers:

• Control for brushed 12 V DC motors up to 40 A continuous current.
• Controller Area Network (CAN) interface at 1 Mbit/s.
• Industry-standard servo (PWM) speed input interface.
• Limit switch, encoder, and analog inputs.
• Fully enclosed design with an internal cooling fan.
