L298N 2A Based Motor Driver Module – Good Quality

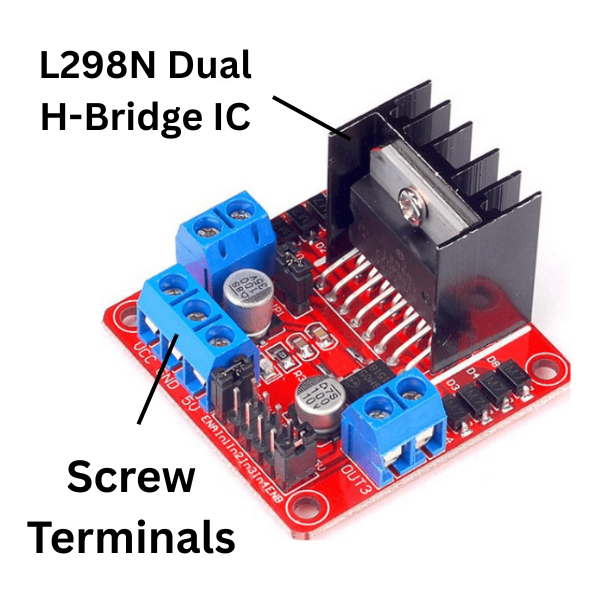

L298N Dual H-Bridge Motor Driver Module

Powerful and Versatile Motor Control

Our L298N motor driver module is a high-performance solution for controlling DC motors and stepper motors. With its dual H-bridge configuration and robust features, this module is ideal for a wide range of applications.

Key Features:

• Dual H-Bridge Design: Drive two DC motors or one bipolar stepper motor.
• High Current Output: Deliver up to 2A continuous current per channel.
• Wide Voltage Range: Operates from 3V to 14V.
• Onboard 5V Regulator: Power external circuits without additional voltage sources.
• Easy to Use: Simple and straightforward setup for quick integration.
• Versatile Applications: Suitable for robotics, mechatronics, and DIY projects.

Specifications:

• Operating Voltage: 3V-14V
• Output Current: 2A per motor (continuous)
• Motor Type: DC motors, bipolar stepper motors
• PWM Duty Cycle: Adjustable
• Onboard 5V Regulator: Yes
• Current Sense: For each motor

Package Includes:

• 1 x L298N Motor Driver Module

Upgrade your projects with our reliable and powerful L298N motor driver module.
